Ignition Control Module

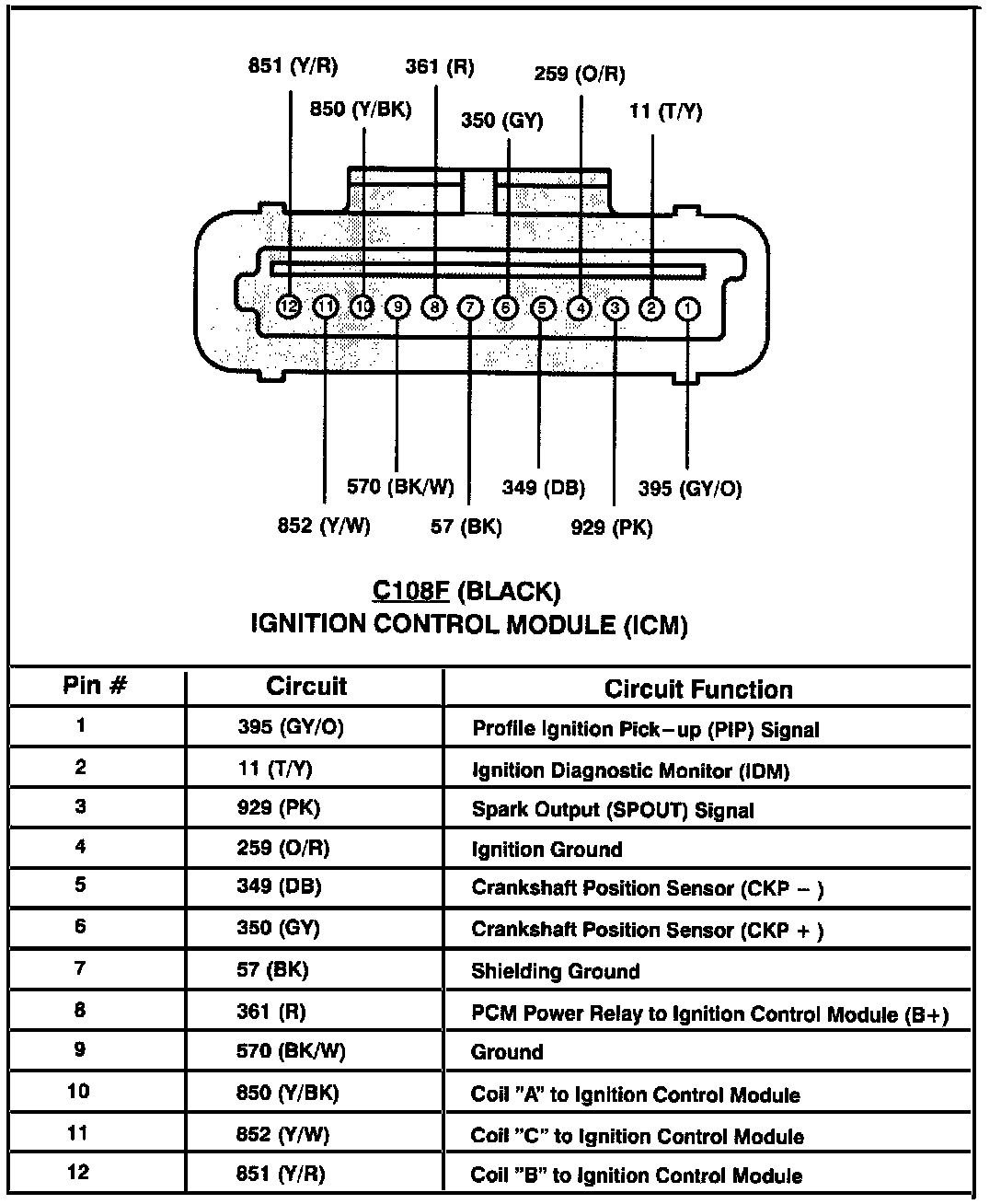

Ignition Control Module:
Connector View

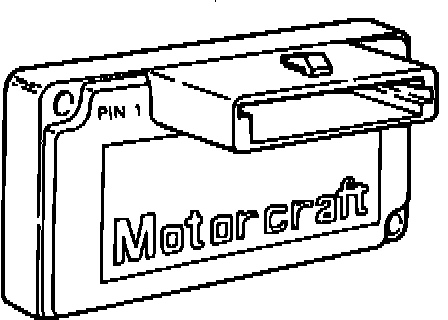

Electronic Distributorless Ignition System (EDIS) Module:

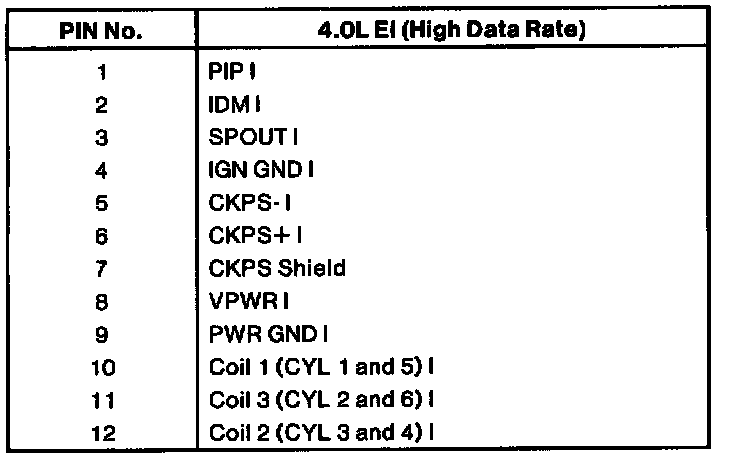

Ignition Control Module
(ICM)
Pin-Out
