Front Control Unit

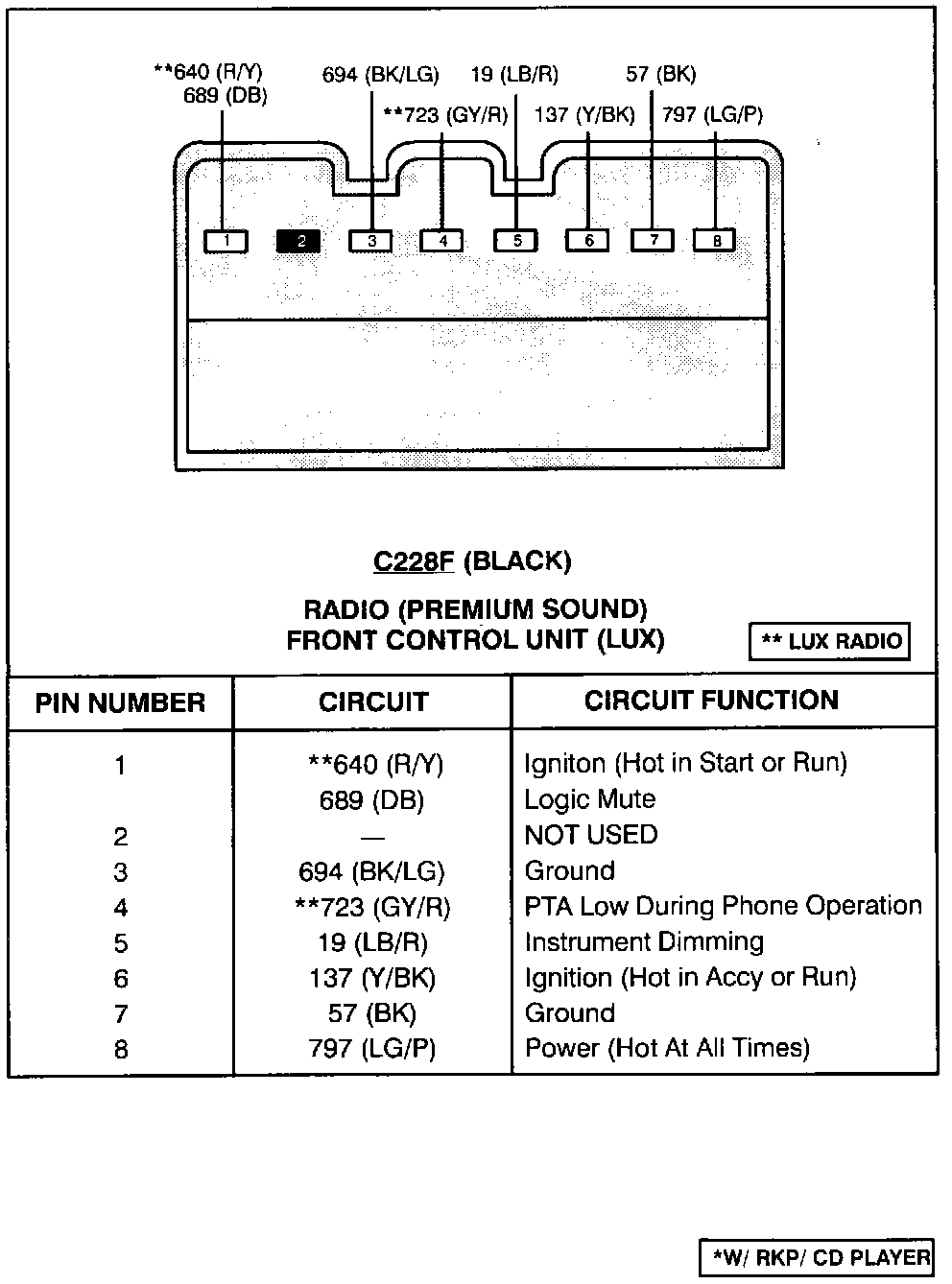

Radio (Premium Sound) Front Control Unit (LUX) (Black):

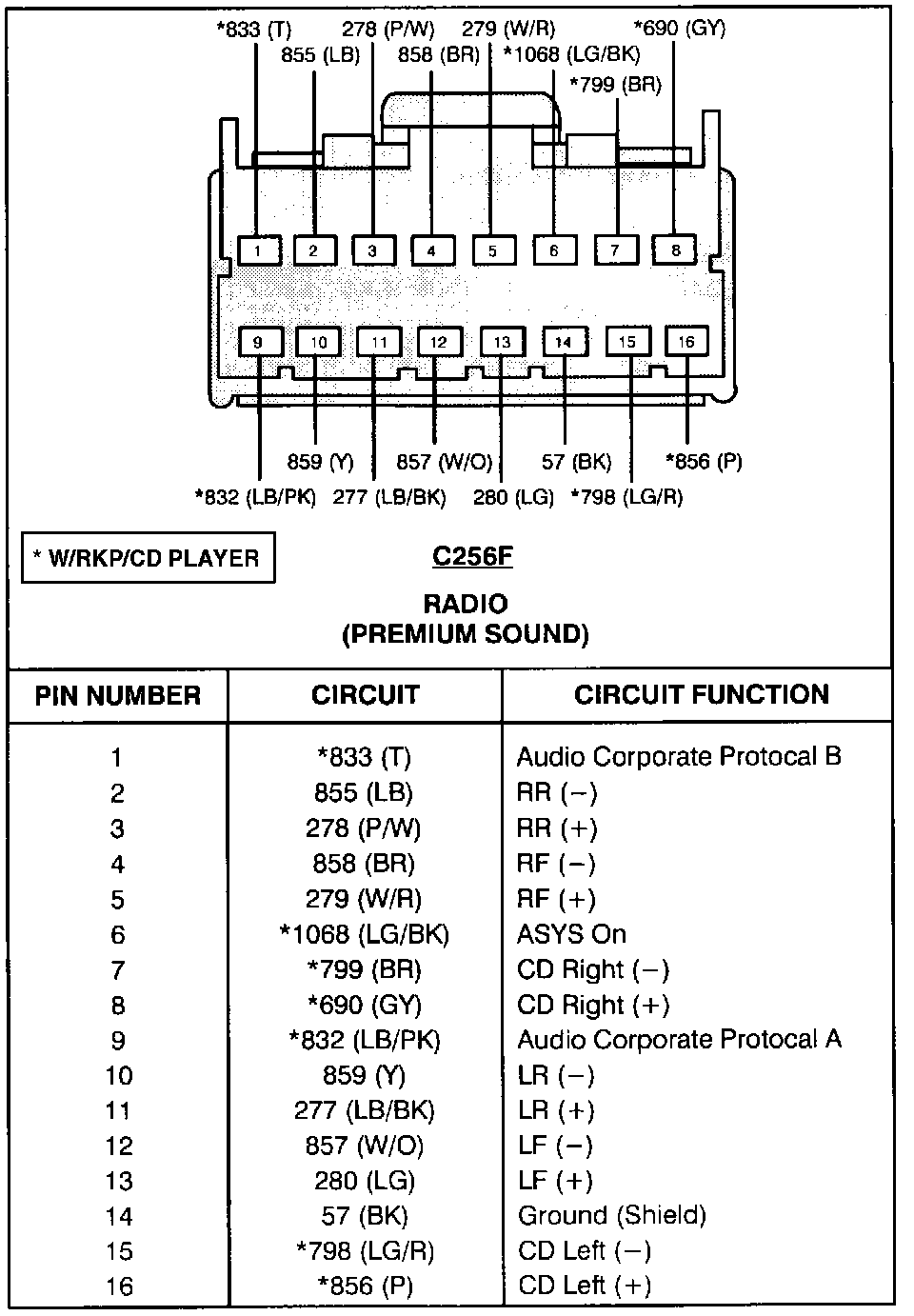

Radio (Premium Sound) (C256F):
