Pressure Feedback Exhaust Sensor: Service and Repair

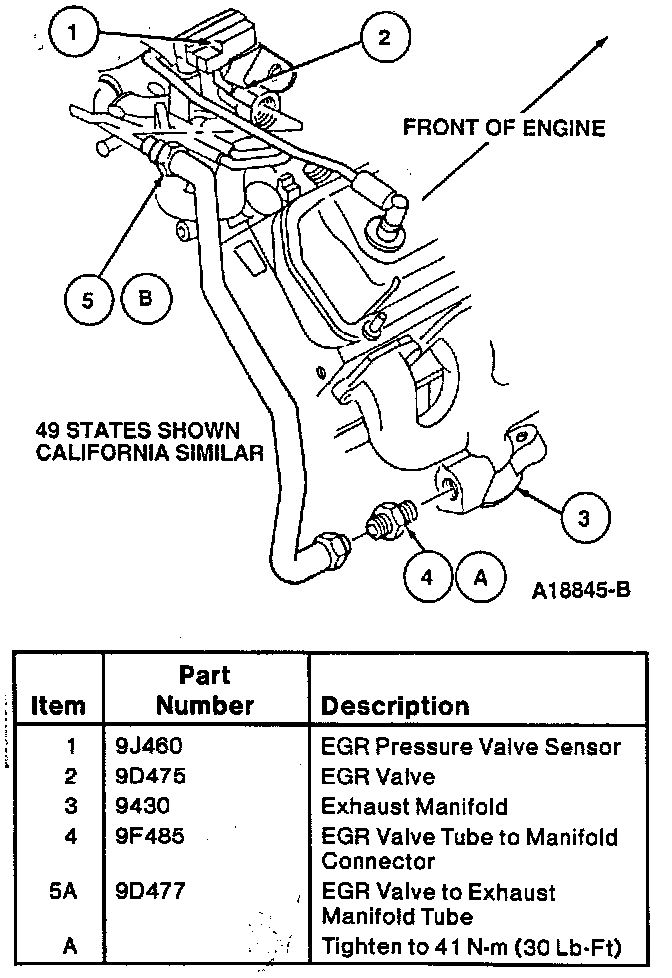

EGR Tube And Components:

REMOVAL
^ Remove transducer mounting bracket retainer nut or nuts.
^ Remove EGR pressure valve sensor and mounting bracket from upper intake manifold and throttle body.
^ Disconnect EGR pressure valve sensor to EGR valve hoses and remove EGR pressure valve sensor from mounting bracket.

INSTALLATION
^ To install, reverse removal procedure. Tighten retainer nuts to 8-12 Nm (71-106 in lb).
