M/T Torque Data

T5OD 5-spd M/T, Flywheel/Pressure Plate:

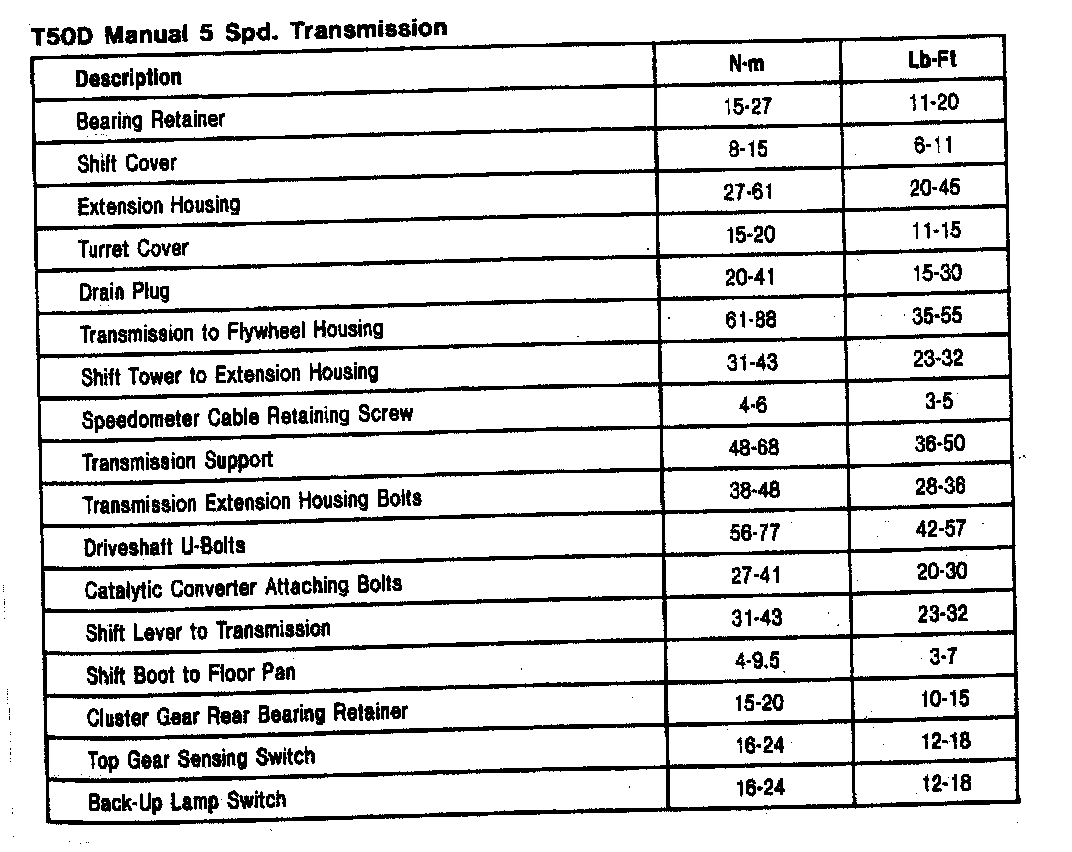

T5OD 5-spd M/T, Transmission Torque:

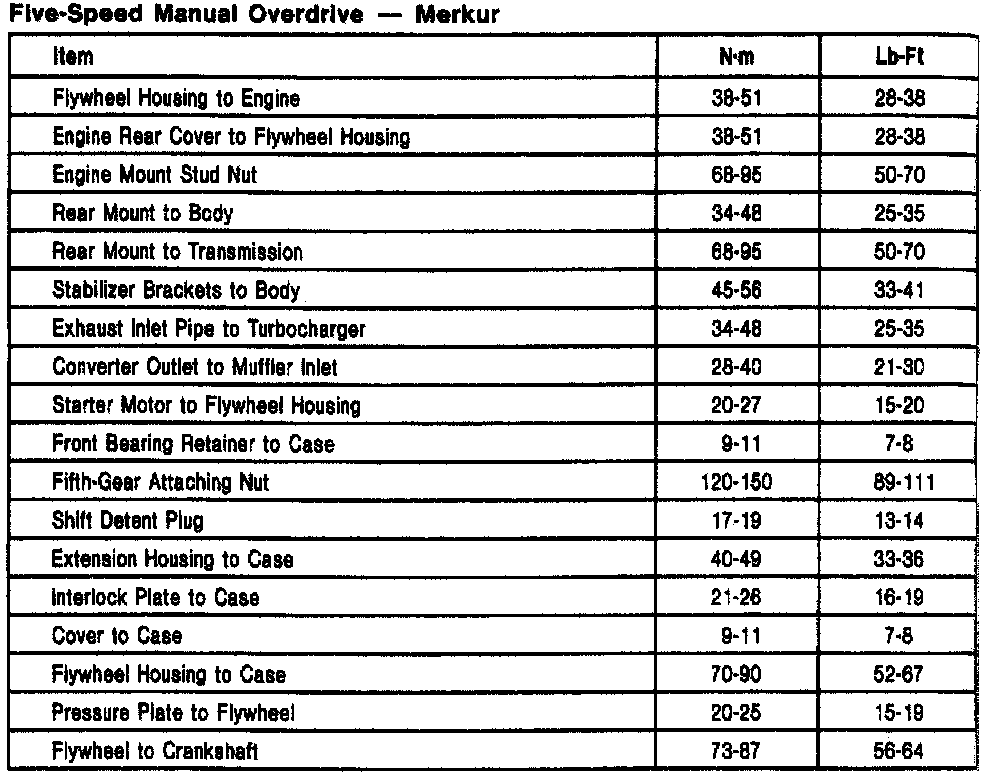

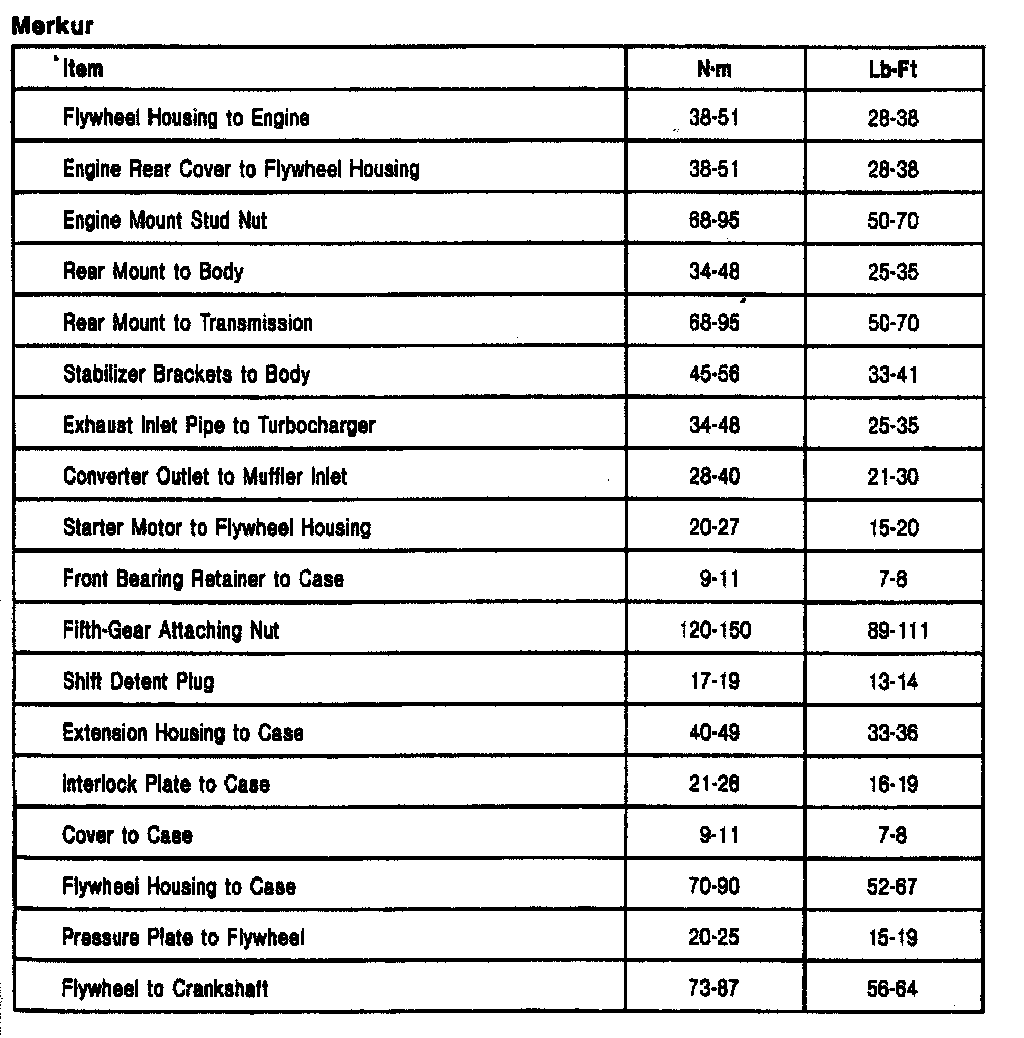

T5OD 5-spd M/T, Clutch Torque (Merkur):





T5OD 5-spd M/T, Transmission Torque:
