Right Power Window/Door Lock Switch

Right Window/Door Lock Control Switch - Component Testing Procedure:




Terminals:

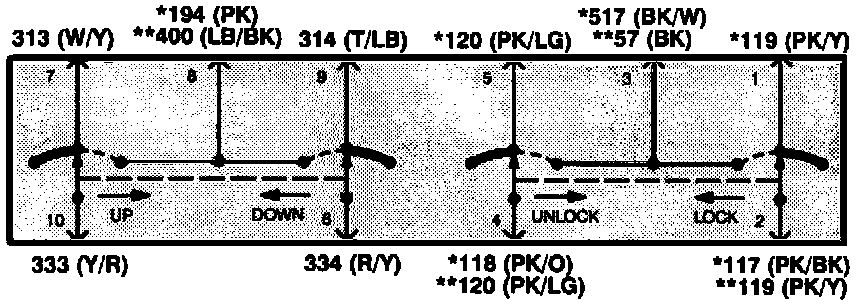

Right Window/Door Lock Control Switch - Schematic:
