System Diagram

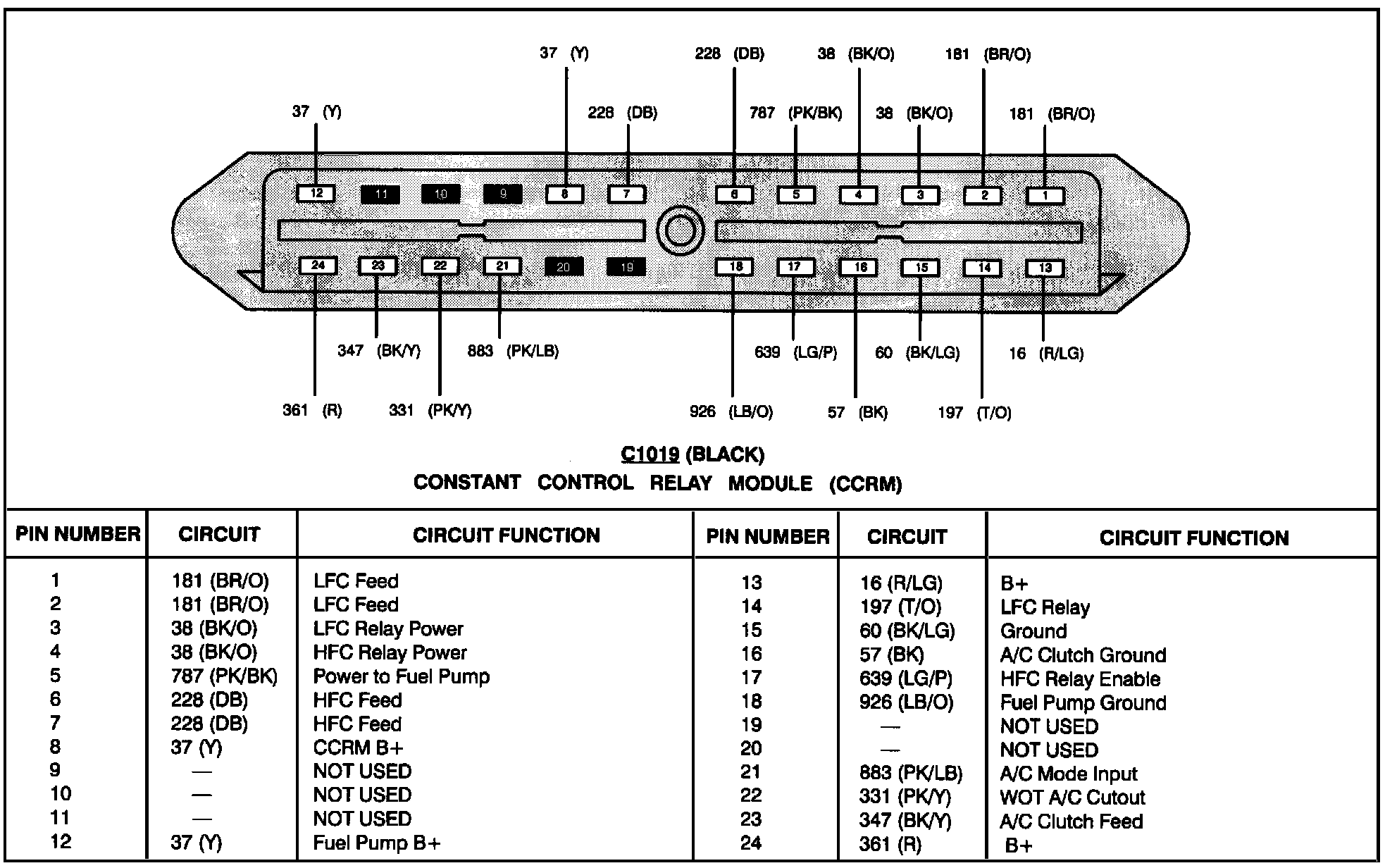

Constant Control Relay Module:



Constant Control Relay Module:



Constant Control Relay Module:
