Transmission Position Sensor/Switch, A/T

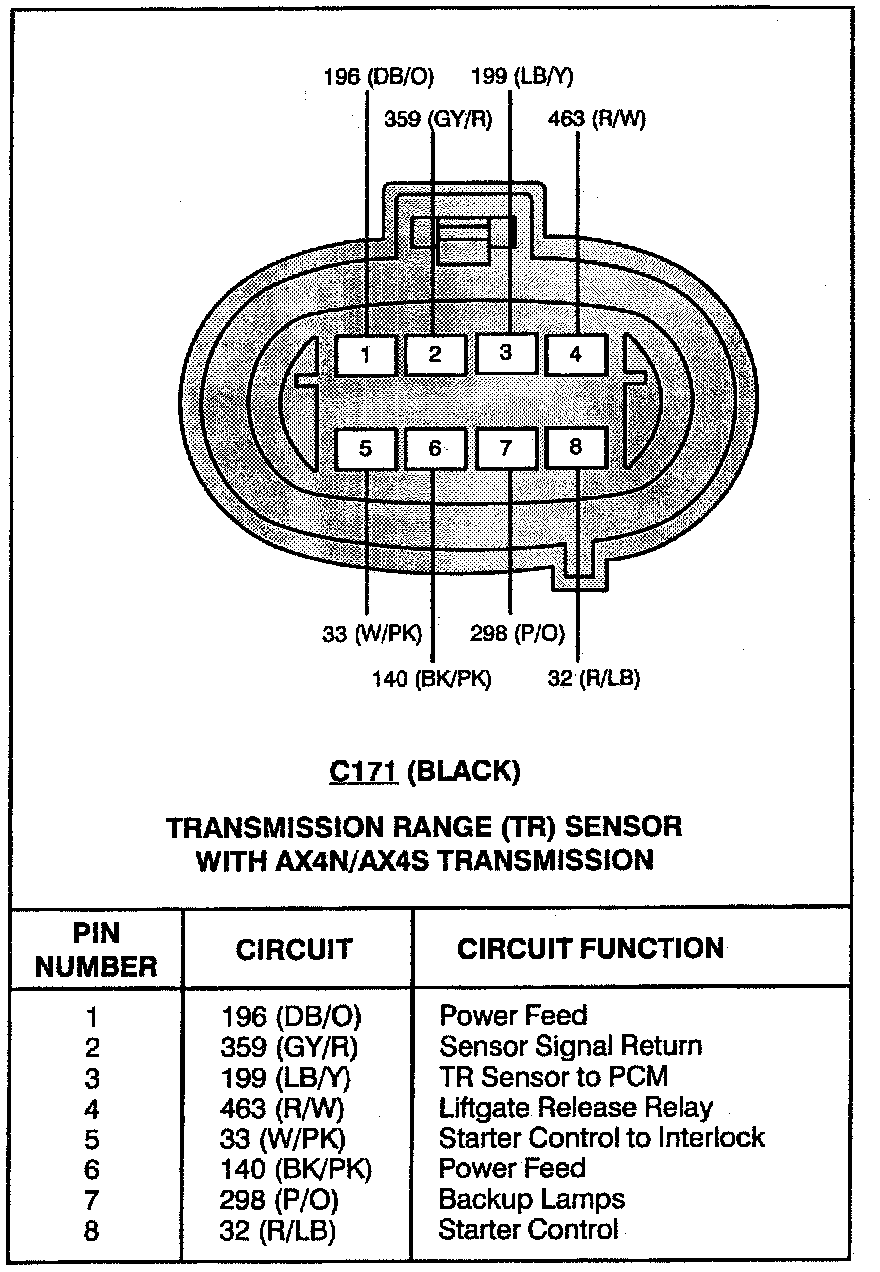

Transmission Range Sensor (With AX4N/AX4S Transmission):



Transmission Range Sensor (With AX4N/AX4S Transmission):



Connector View:



Connector View:
