Cruise Control Servo Cable: Service and Repair

Speed Control Actuator

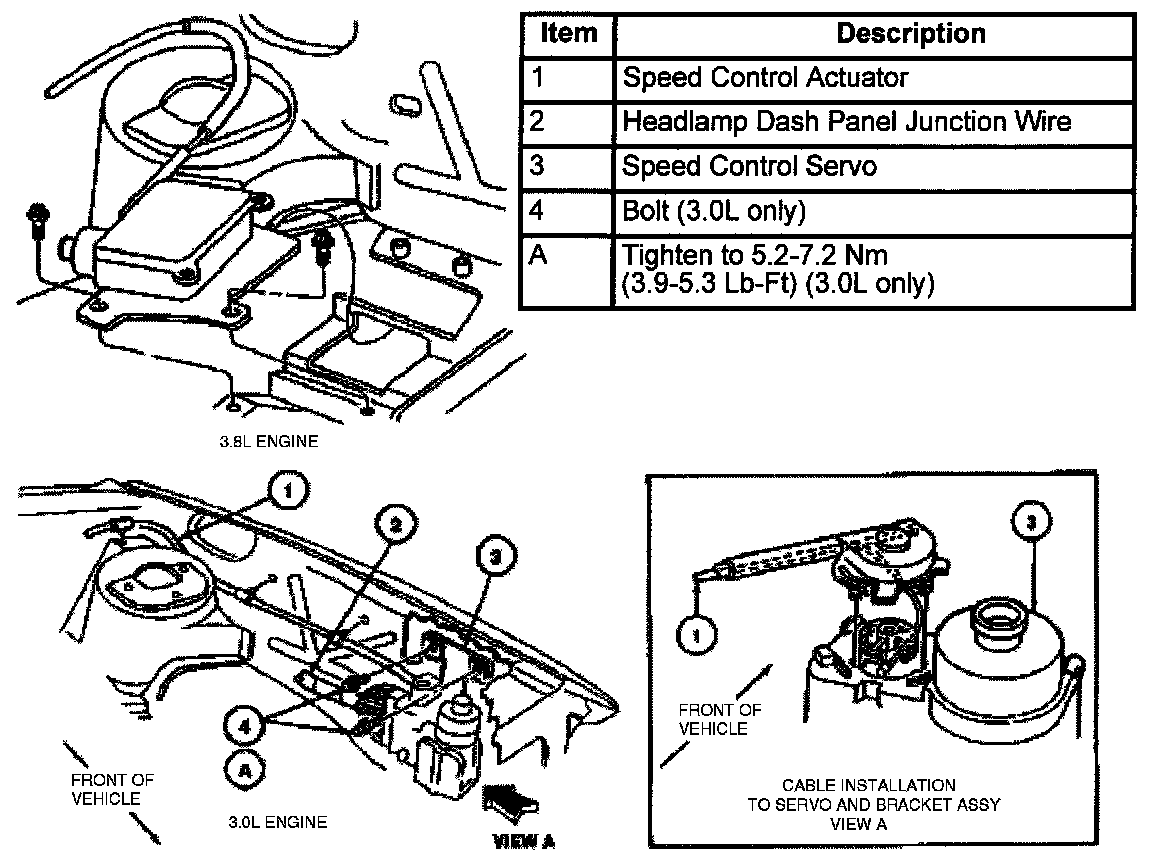

Speed Control System Components:

Speed Control Actuator:

Removal

1. Remove speed control actuator from speed control servo.

2. Remove speed control actuator from throttle bracket.

3. Remove speed control actuator from throttle body nailhead.

Installation

1. Snap speed control actuator onto throttle body nailhead.

2. Attach speed control actuator to throttle cable bracket.

3. Attach speed control actuator to speed control servo as described in speed control servo installation.

4. Adjust speed control actuator. Adjustments
