Aerostar AWD V6-245 4.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Remote Control Module, Audio - Stereo
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Remote Control Module, Audio - Stereo

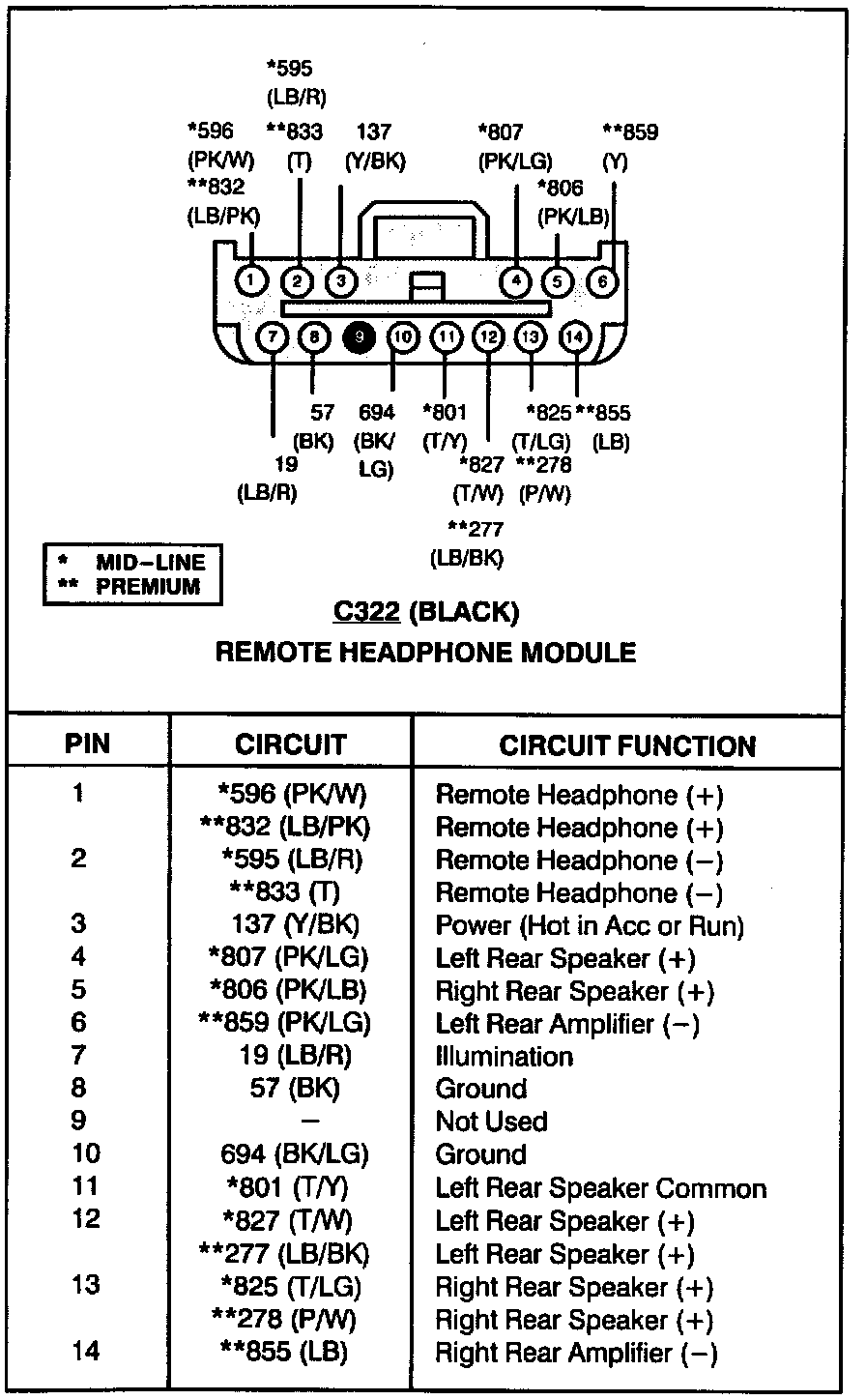

Remote Headphone Module:

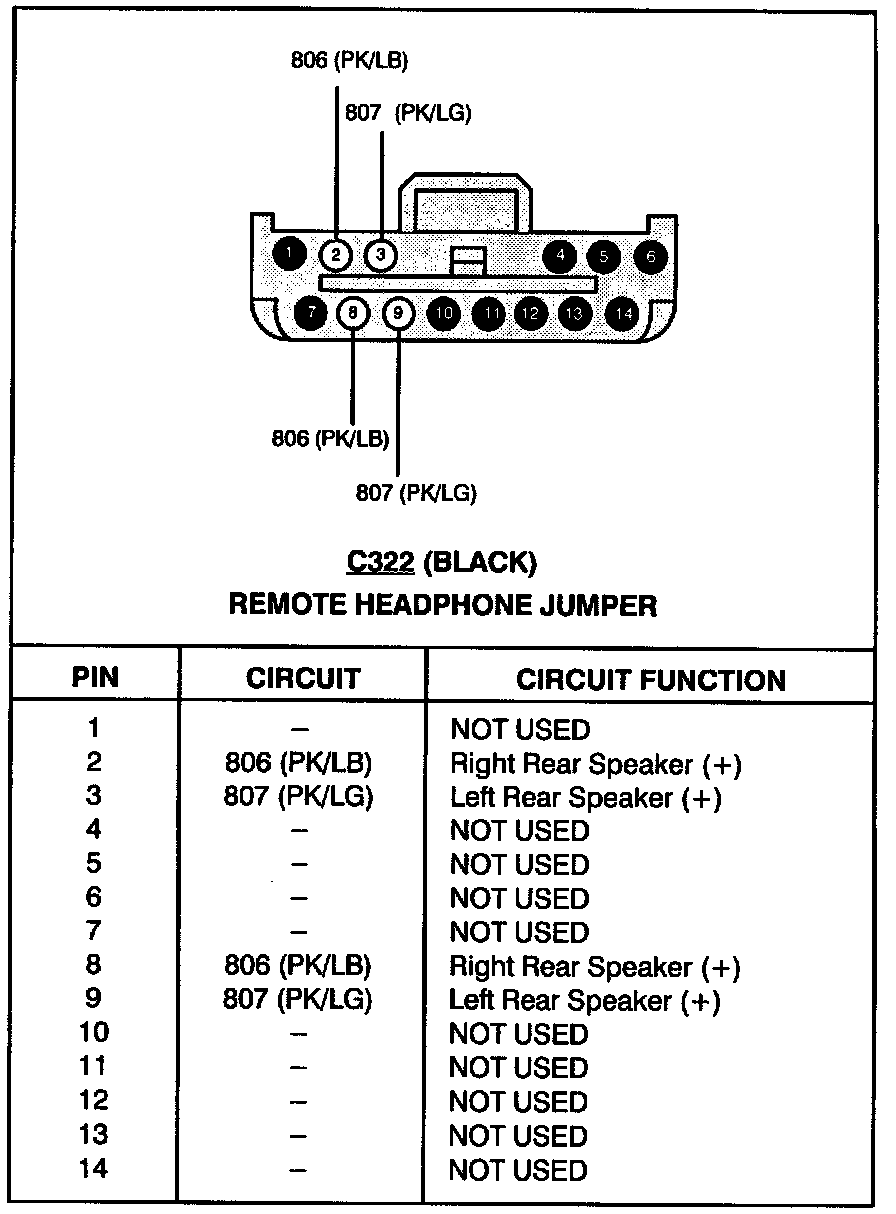

Remote Headphone Jumper:
