Data Link Connector: Locations

Data Link Connector 1:





The Data Link Connector 1 is located under the hood, near the battery.

Instrument Panel:

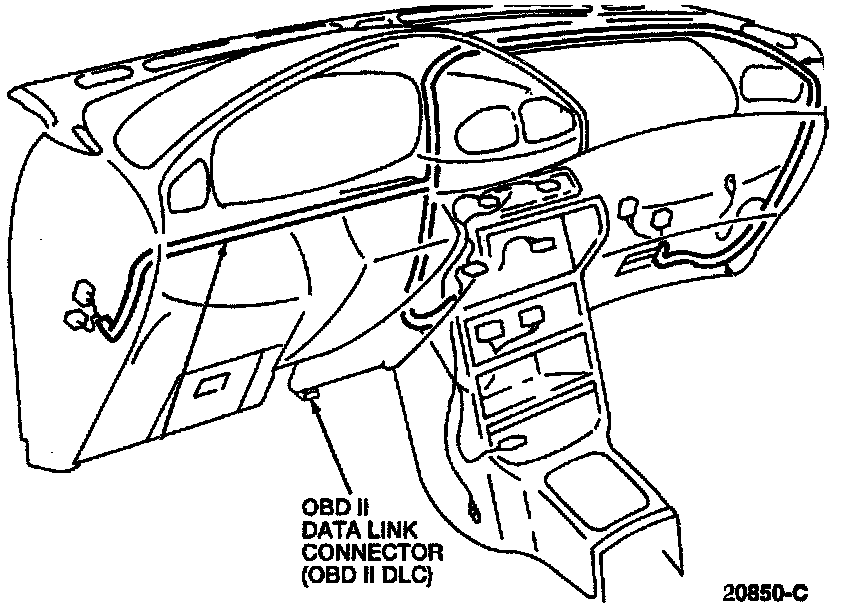

The OBD II Data Link Connector (OBD II DLC) is located under the instrument panel.
