E 150 Van V8-351 5.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
Alarm Module, (Vehicle Antitheft)
>>
C1
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
C1

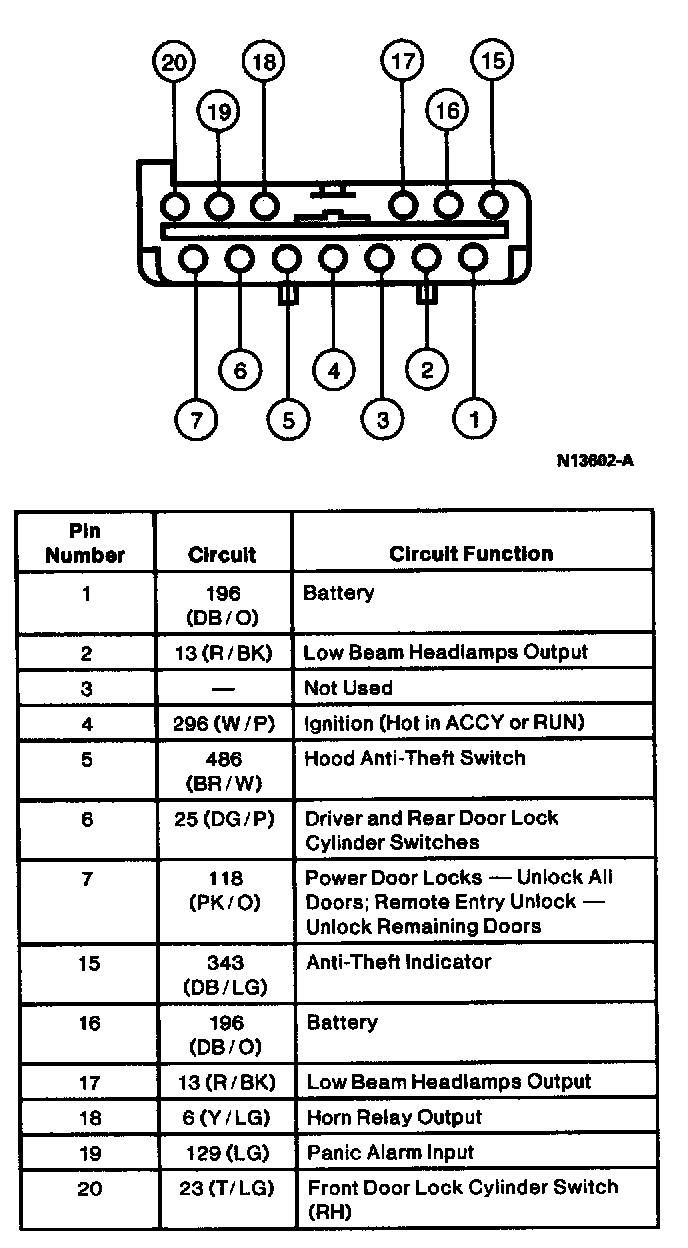

Anti-Theft Alarm Control Connector C1:
