Disassembly and Assembly

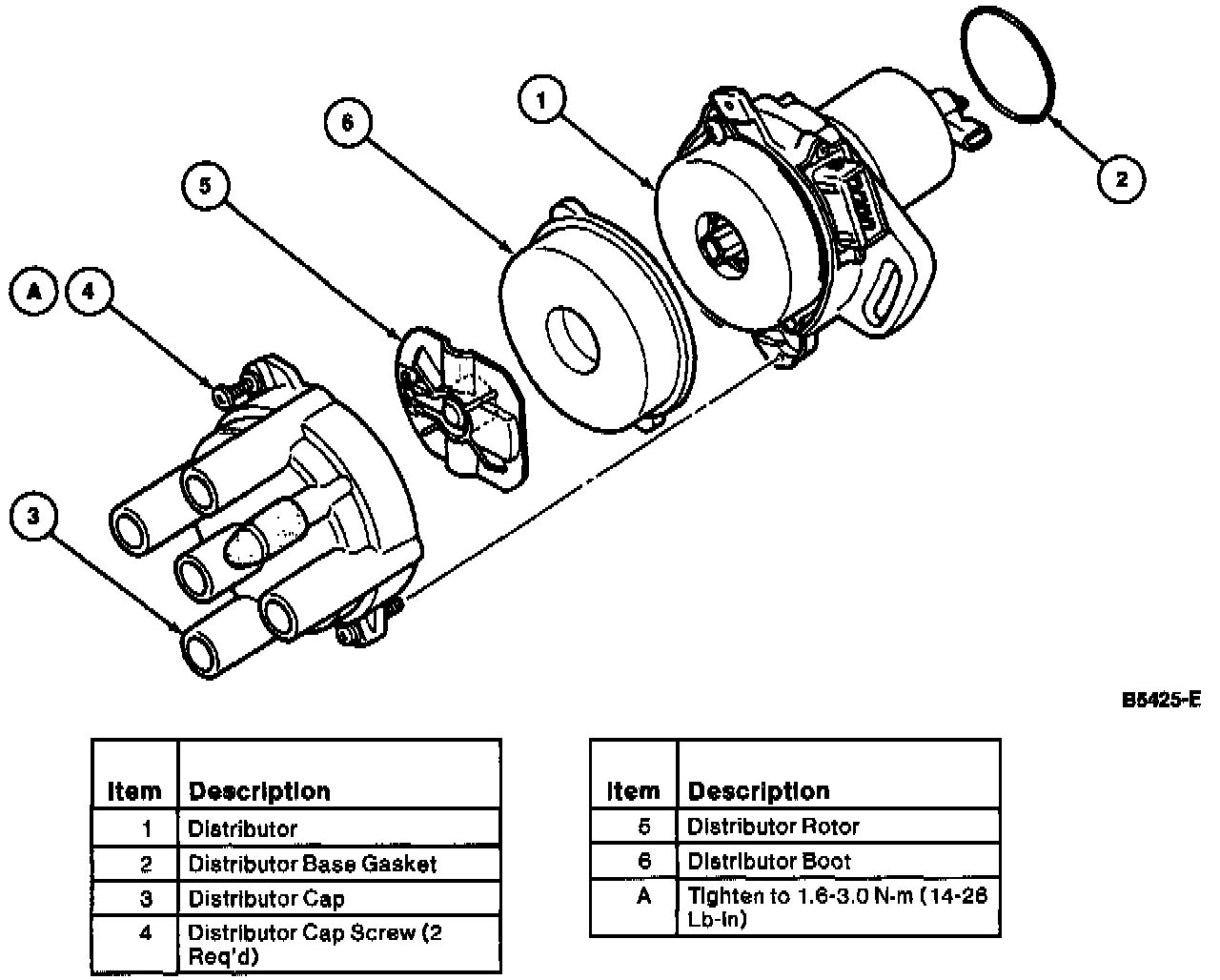

Distributor:





CAUTION: Do not attempt to disassemble and service the distributor.

Only the distributor cap, distributor rotor, distributor boot, and distributor base gasket can be replaced individually. Other than these components, the distributor is not serviceable.
