LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
1996
>>
Explorer 2WD V8-302 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antitheft and Alarm Systems
>>
System Diagram
>>
Receiver Assembly Connector C2
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

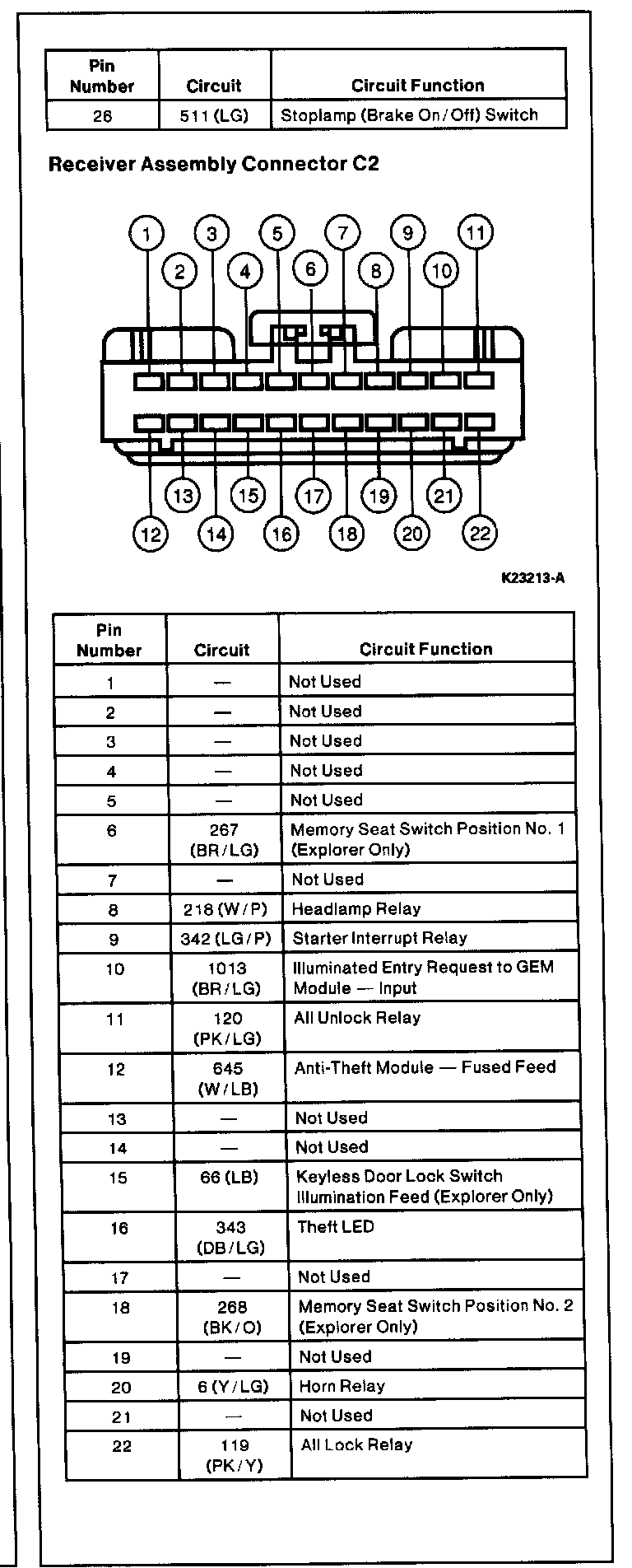

Receiver Assembly Connector C2
Receiver Assembly Connector C2:
