Connector Views

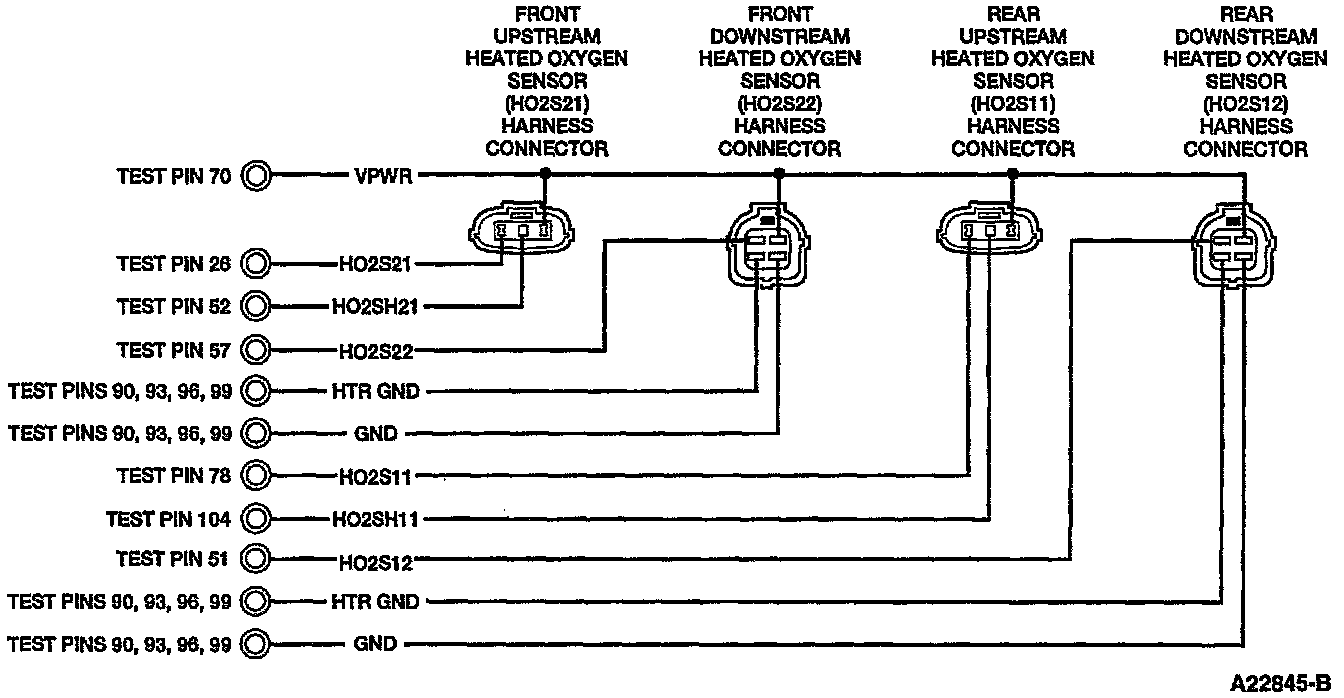

Fuel Injector And Heated Oxygen Sensor Harness Connectors:




Fuel Pressure Regulator Control (FPRC) Solenoid Circuit And Harness Connector:
