Cylinder Identification Sensor: Locations

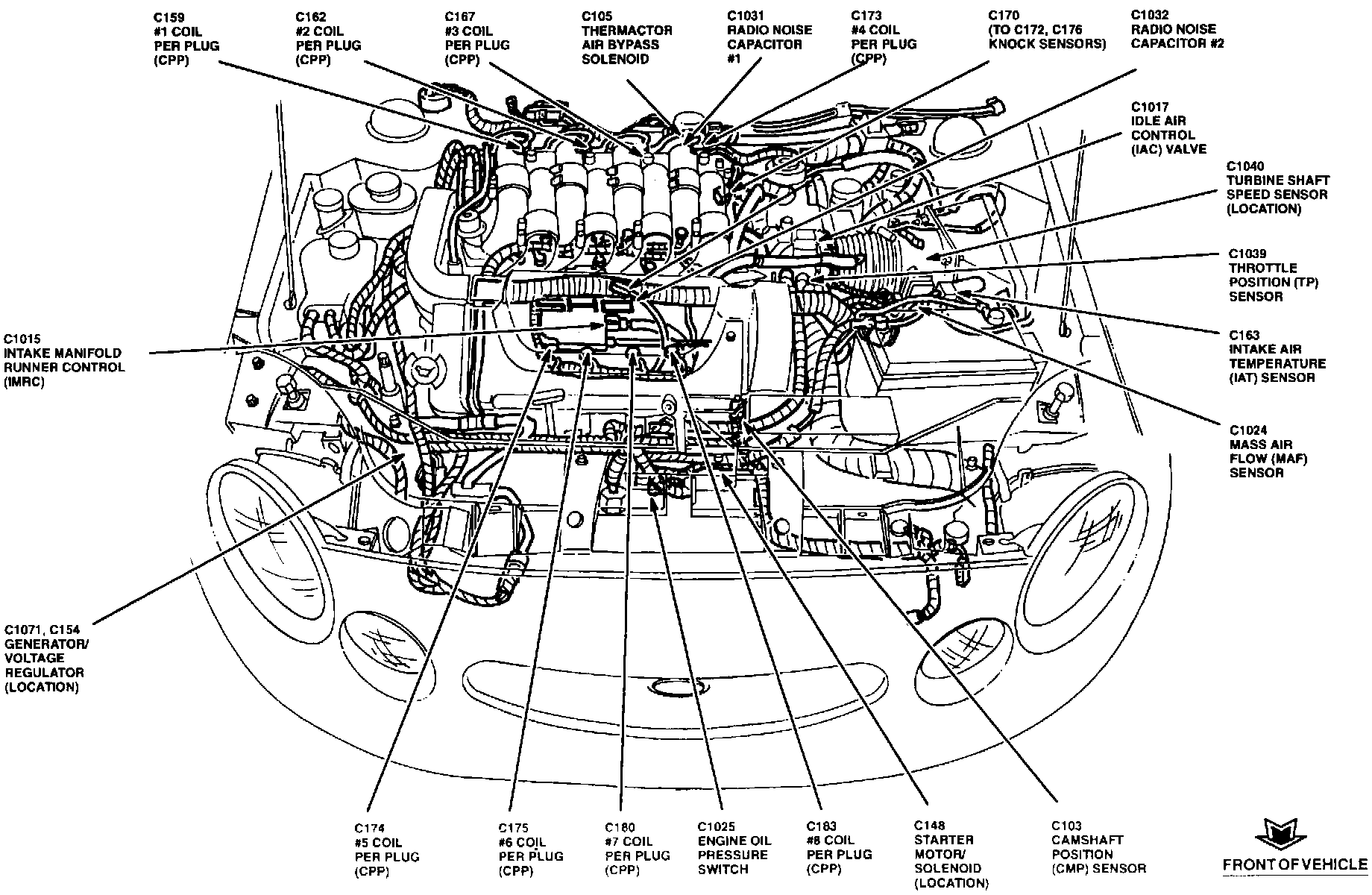

Engine View:

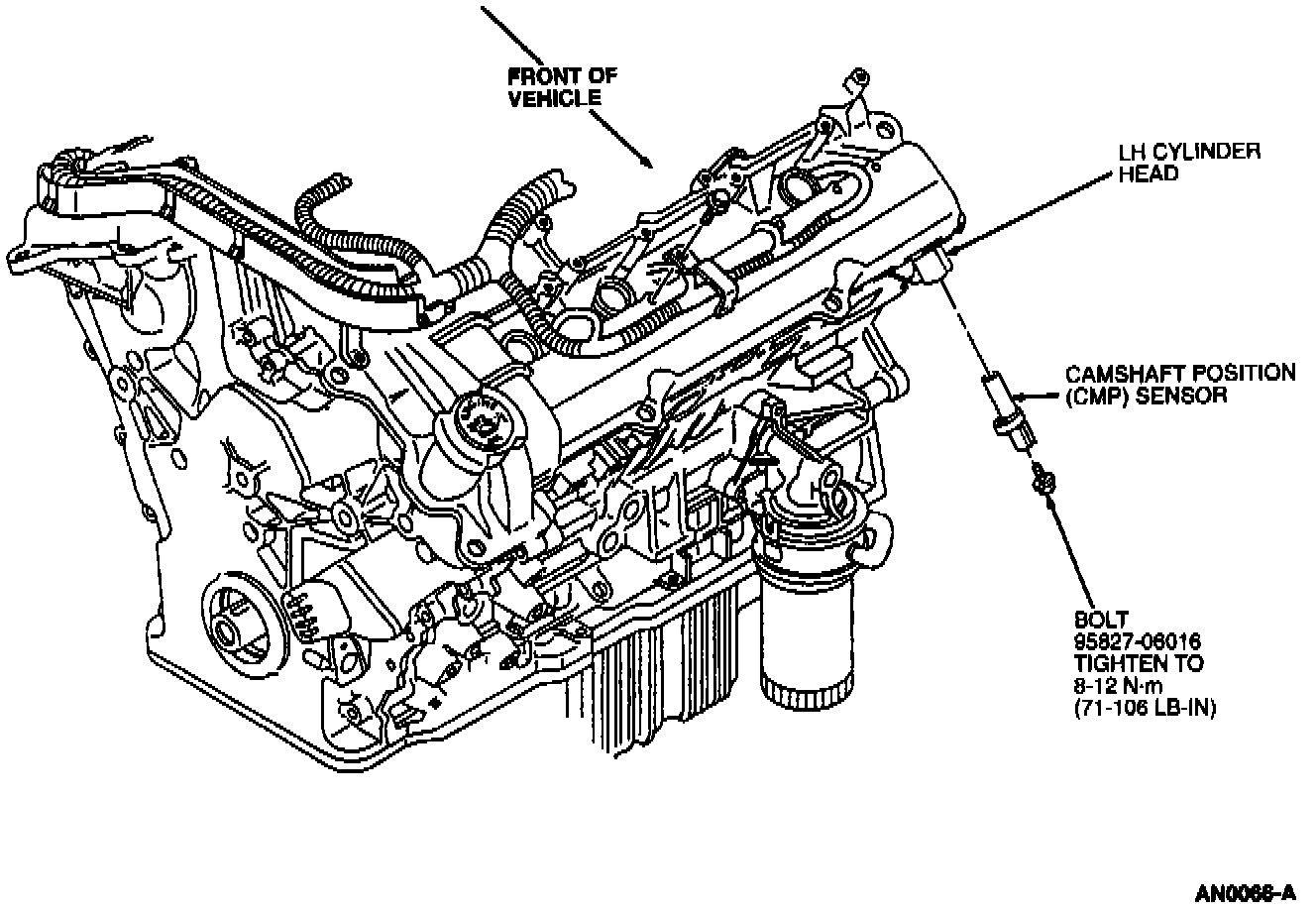

Camshaft Position Sensor:

The Cylinder Identification (CID) Sensor/Camshaft Position (CMP) Sensor, (C103) is located at the right top of the engine cylinder head, below valve cover.
