Interior Fuse Panel
NOTE:
Interior fuse panel is located under driver's side of instrument panel. See
Fig 1
.

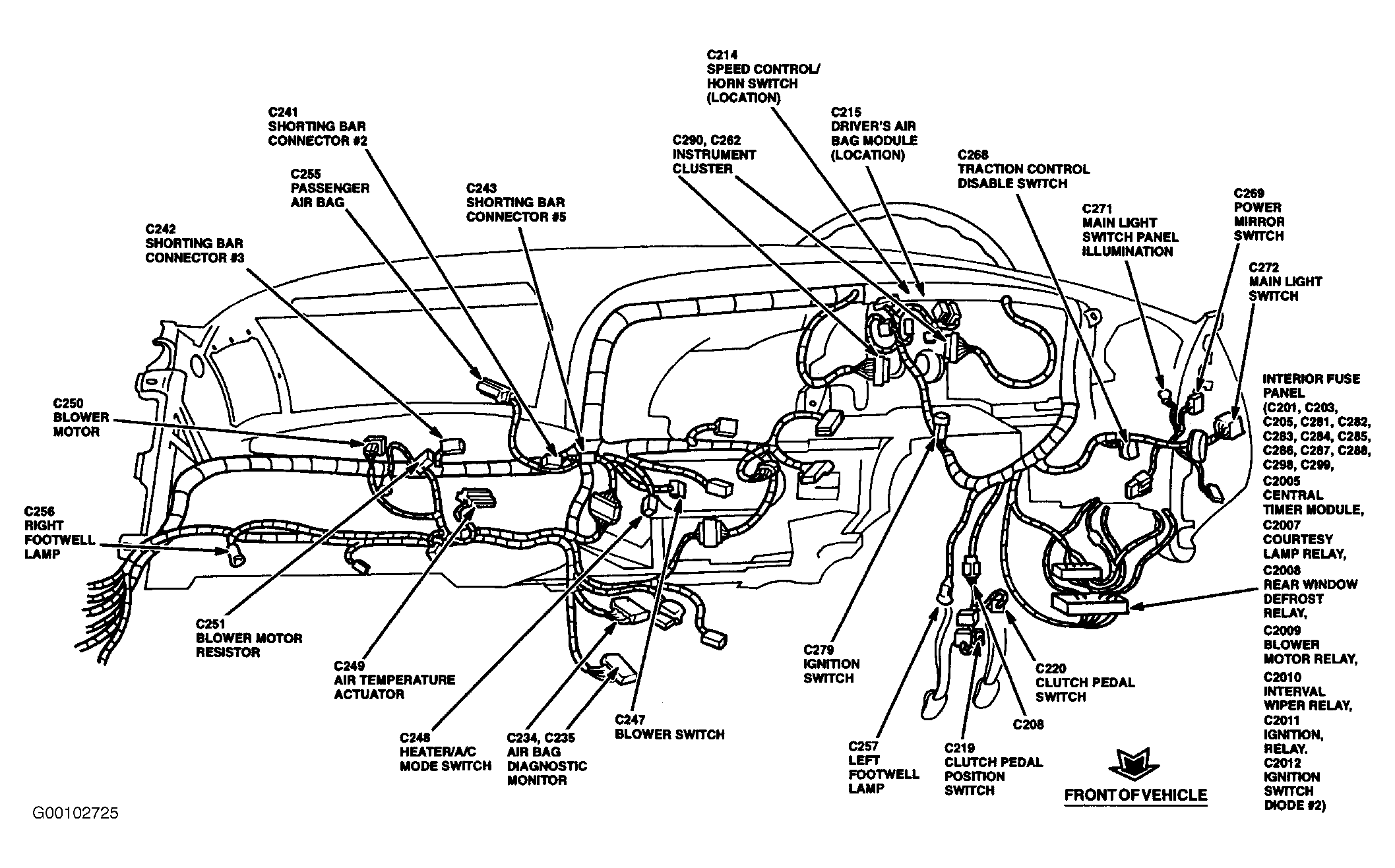

Fig 1: Locating Instrument Panel Electrical Components
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Interior Fuse Panel Components
Courtesy of FORD MOTOR CO.
Fig 3: Interior Fuse Panel Legend
Courtesy of FORD MOTOR CO.
