Coolant Temperature Sensor/Switch (For Computer): Locations

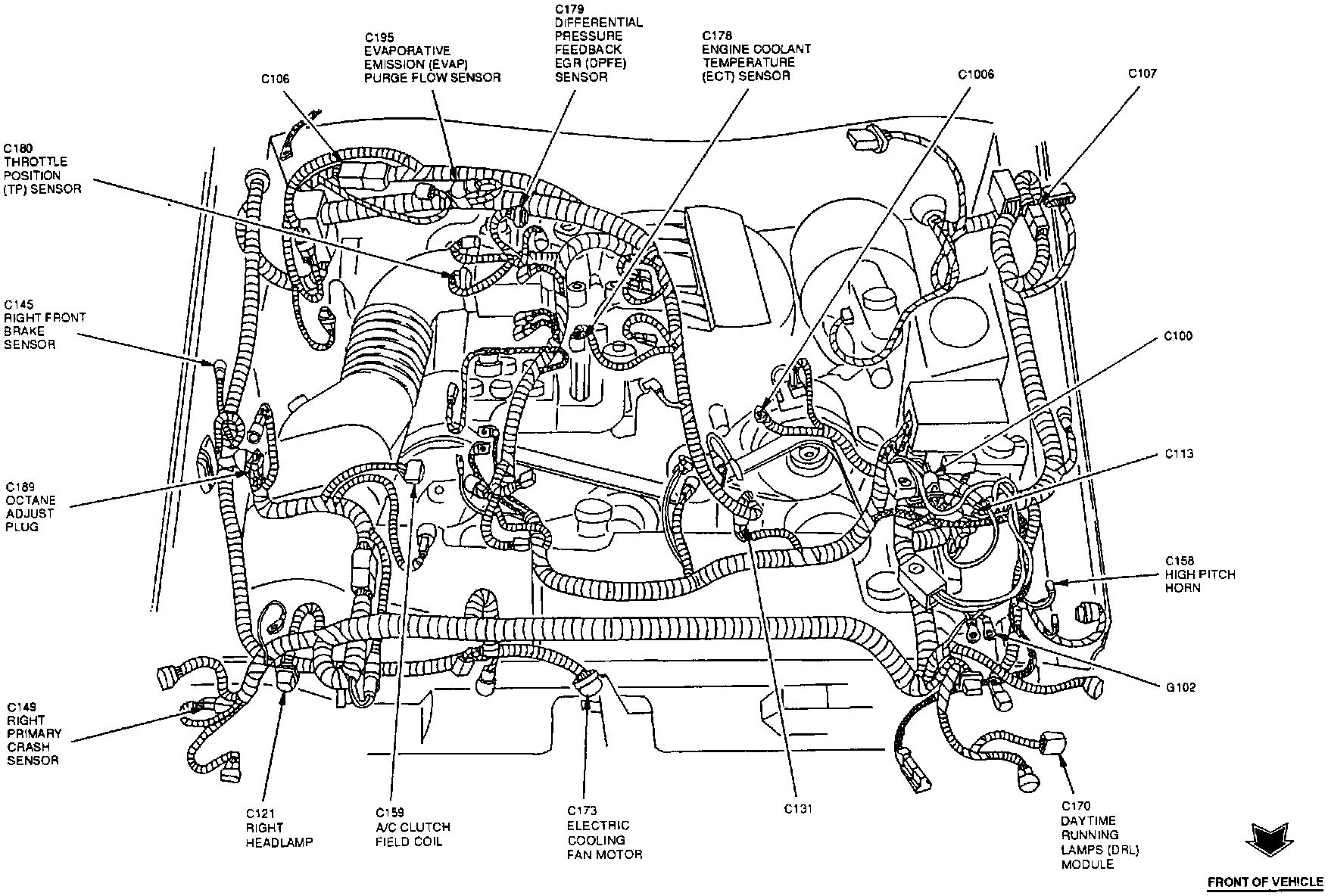

Engine View:





Engine Coolant Temperature (ECT) Sensor:





The Engine Coolant Temperature Sensor is located on the top front of the engine, behind ignition coil.
