Driver-Side Air Bag Module: Removal

WARNING: This page is about a different car, the 1997 Mercury Grand Marquis, 1997 Lincoln Town Car, and 1997 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Before proceeding, see SERVICE PRECAUTIONS . Disable SRS. See DISABLING & ACTIVATING AIR BAG SYSTEM .
Remove 4 nut and bolt assemblies retaining driver-side air bag module to steering wheel.
Disconnect air bag electrical connector from air bag sliding contact connector. Remove driver-side air bag module. See Fig 1 .

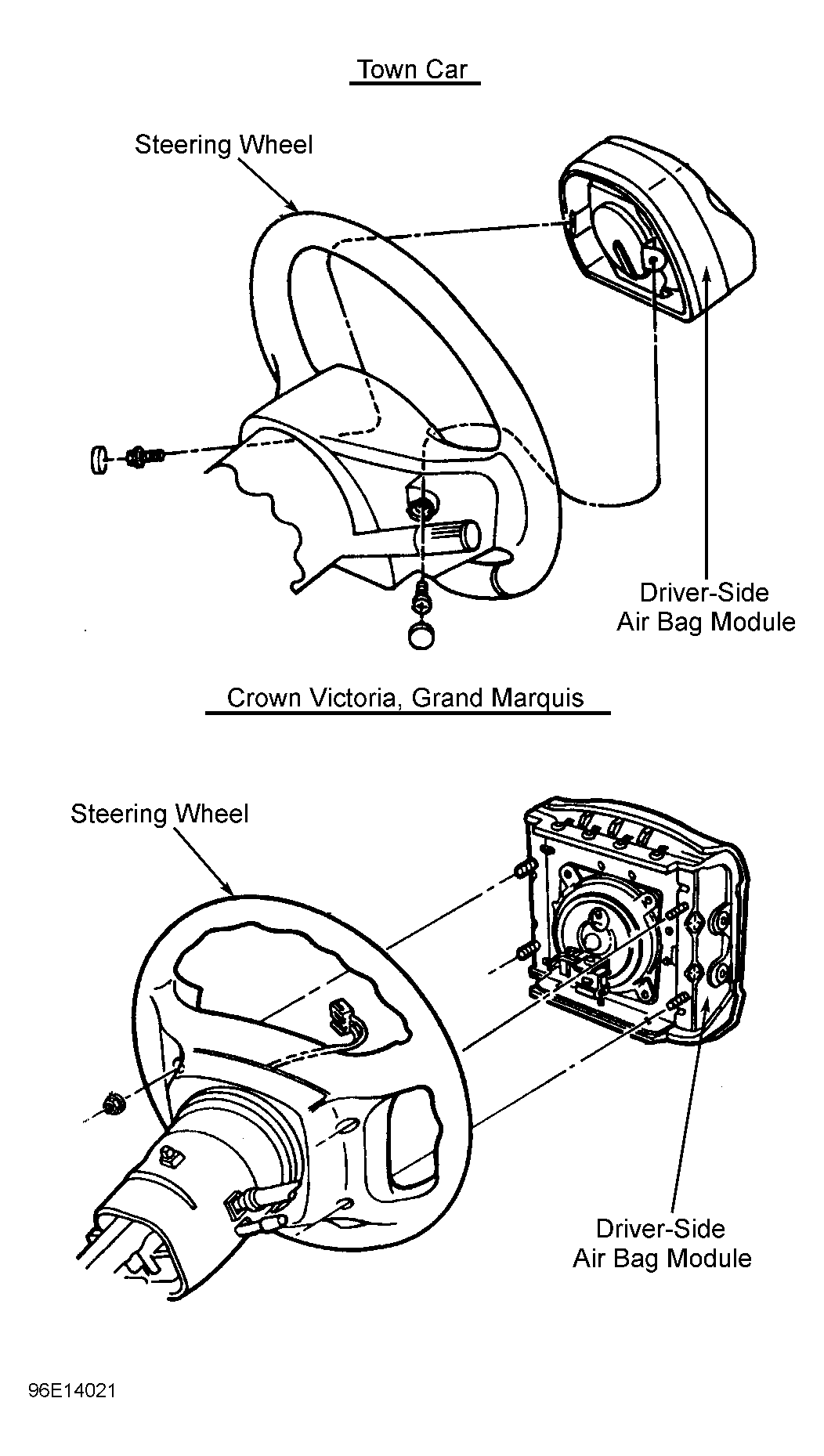

Fig 1: Removing Driver-Side Air Bag Module

Courtesy of FORD MOTOR CO.
