Overhaul - Ax4S Automatic Transmission: Identification

NOTE: The AX4S transaxle is also known as AXOD-E.

The AX4S is identified by the code letter "L", shown on the Vehicle Certification Label under "TR". The label is located on the driver's door lock panel or door pillar.

The transaxle also has an identification tag attached to the top of the converter housing. Use this information when servicing or ordering replacement parts. See Fig 1.

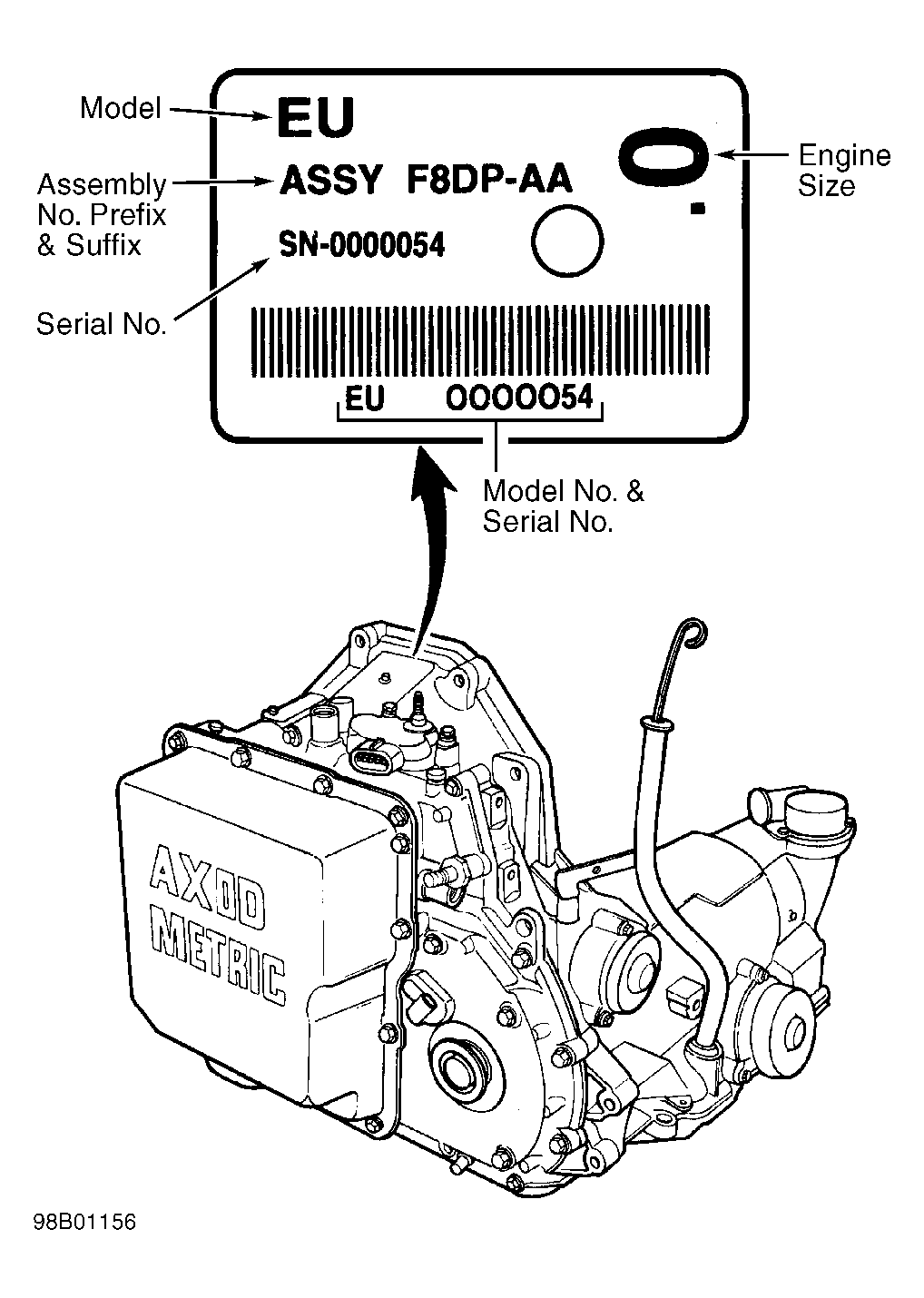

Fig 1: Identification Tag

Courtesy of FORD MOTOR CO.

NOTE: For AX4S transaxle electronic testing and repair, see AUTO TRANS DIAGNOSIS - AX4S ELECTRONIC article.
