Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Control Module | On floor, under passenger's seat. |

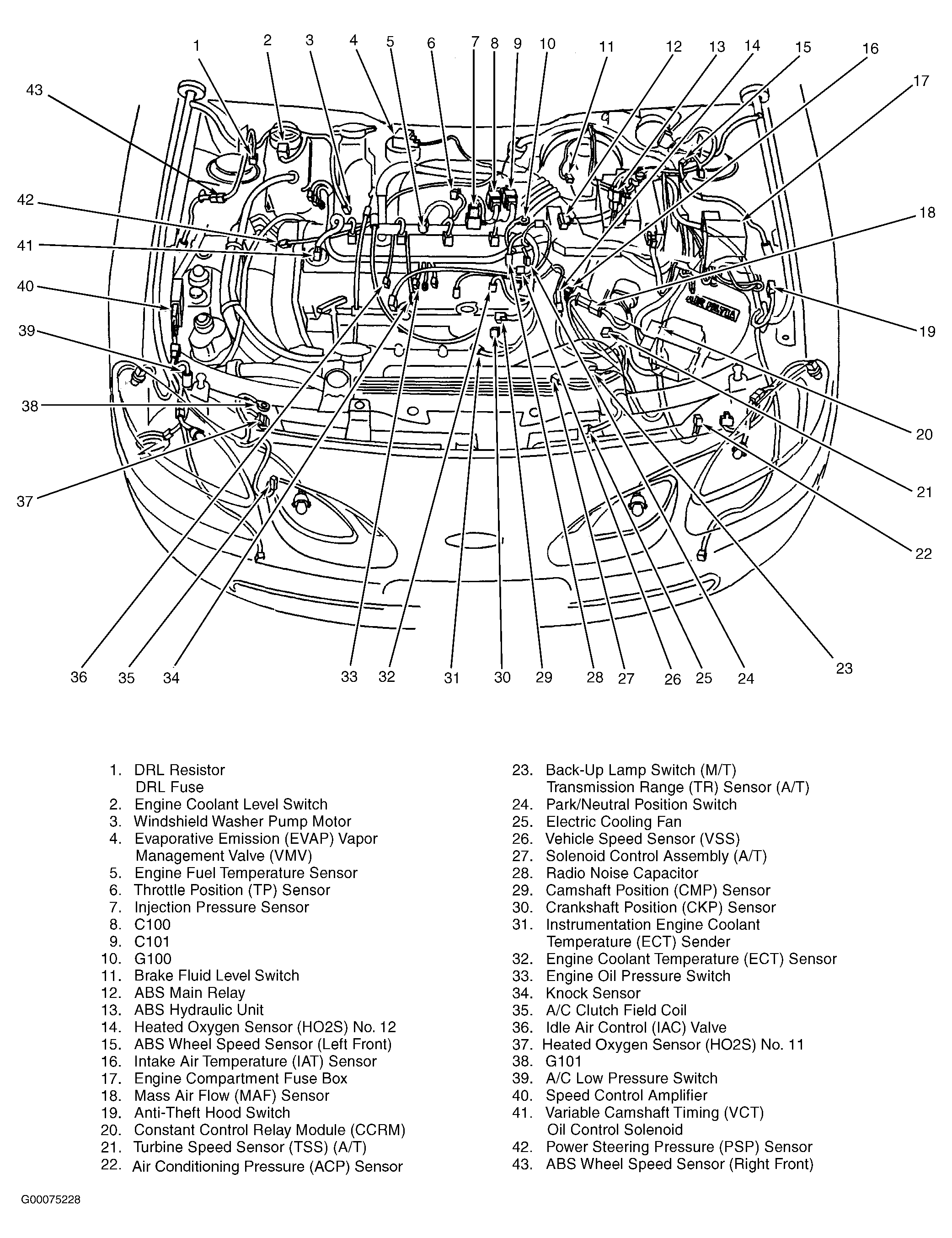

| ABS Hydraulic Unit | In left rear of engine compartment, behind battery. See Figure . |

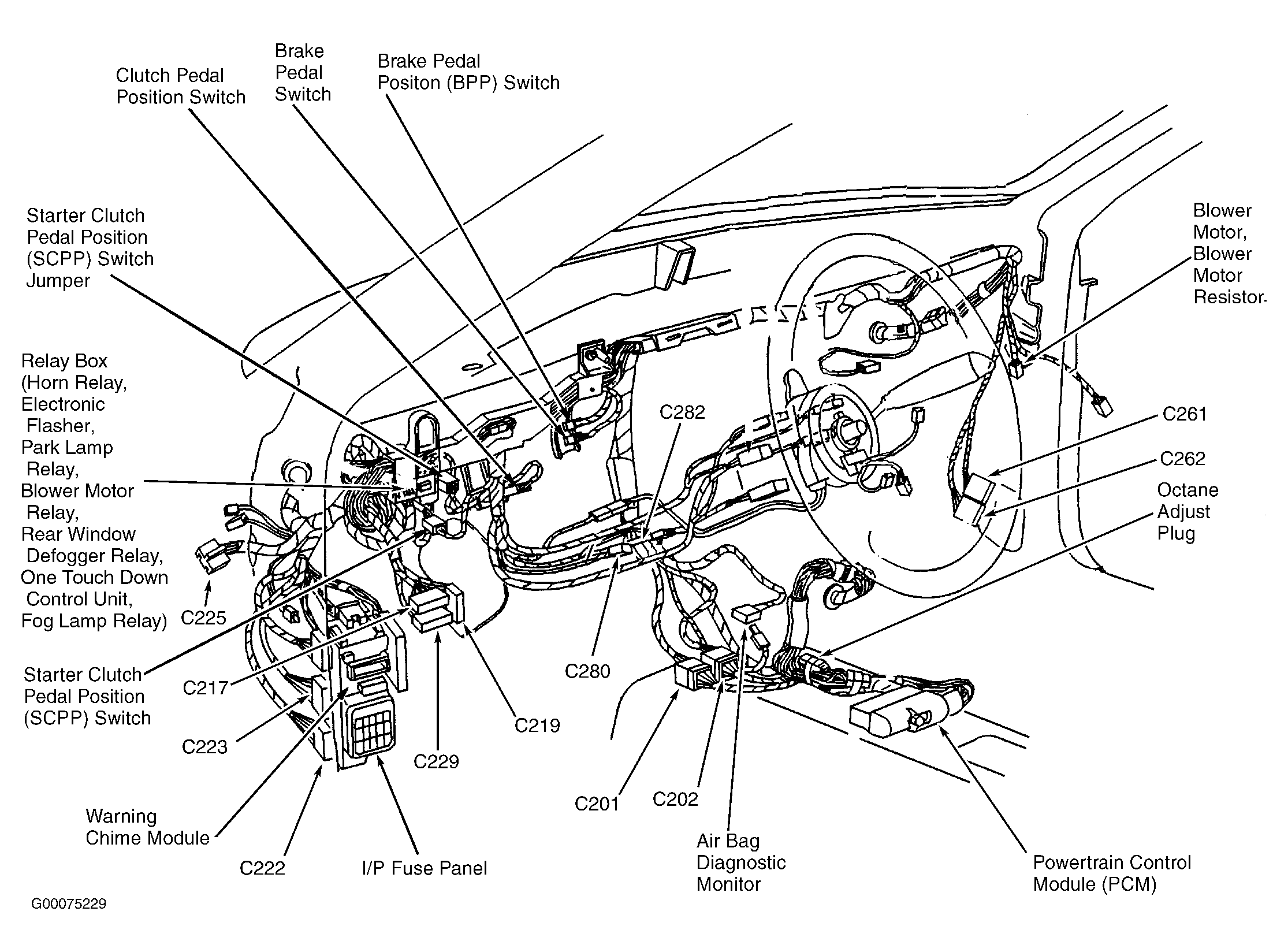

| Air Bag Diagnostic Monitor | Behind center of dash, below integrated control panel. See Figure . |
| Constant Control Relay Module (CCRM) | In left front of engine compartment. See Figure . |
| Daytime Running Lamps (DRL) Module | Behind right side of dash, top of kick panel. |
| Fuel Pump Driver Module | On left rear quarterpanel. |
| Fuel Pump/Fuel Gauge Sender | Below rear of vehicle, inside fuel tank. |
| Instrument Panel Dimming Module | Behind dash, left of steering column. |
| One Touch Down Control Unit | In relay box. See Figure . |
| Powertrain Control Module (PCM) | Below center of dash. See Figure . |
| Remote Anti-Theft Personality (RAP) Module | In left rear of vehicle. |
| Warning Chime Module | Behind left side of dash, on rear of I/P fuse panel. See Figure . |
