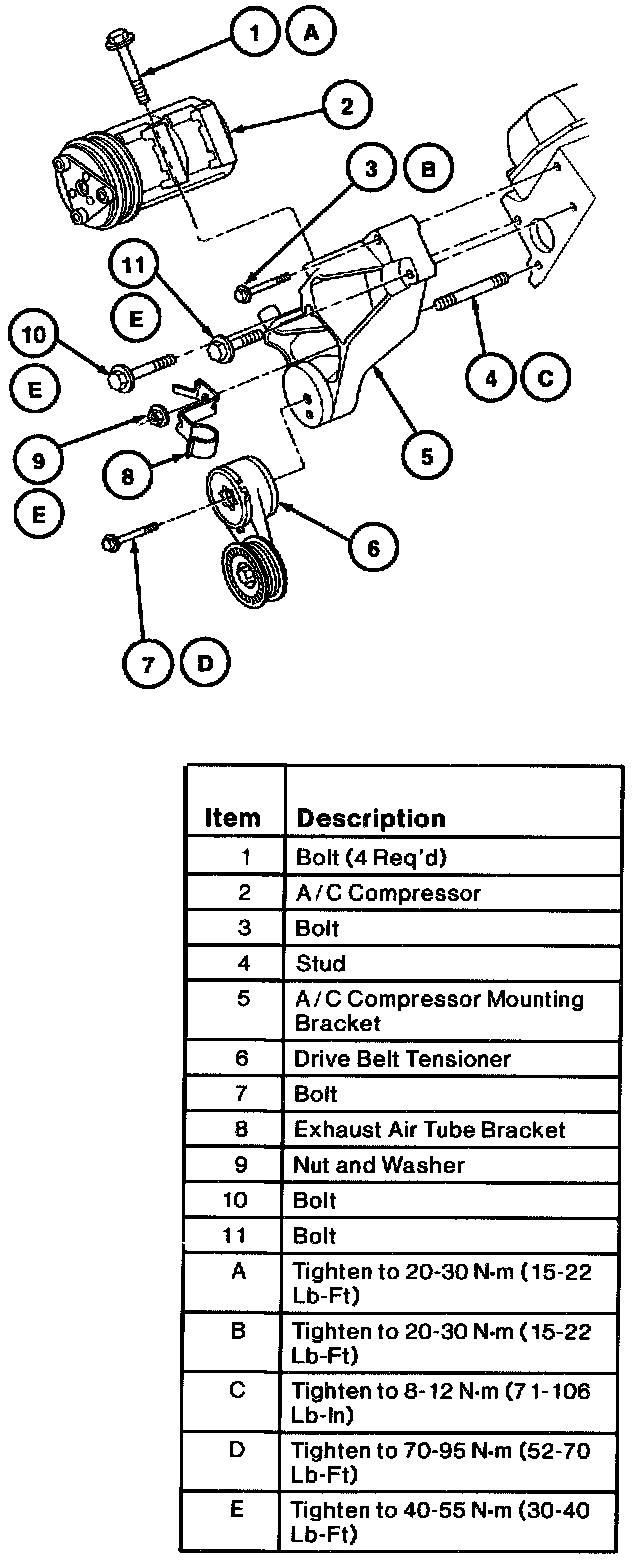

Compressor Bracket

REMOVAL
1. Remove A/C compressor.
2. Disconnect camshaft position sensor wiring at Camshaft Position Sensor (CMP sensor).
3. Remove retaining bolts and A/C compressor mounting bracket.

INSTALLATION
1. Install A/C compressor mounting bracket with four retaining bolts.
2. Connect camshaft position sensor wiring to camshaft position sensor.
3. Install A/C compressor.
