Exhaust Manifold

LH Side

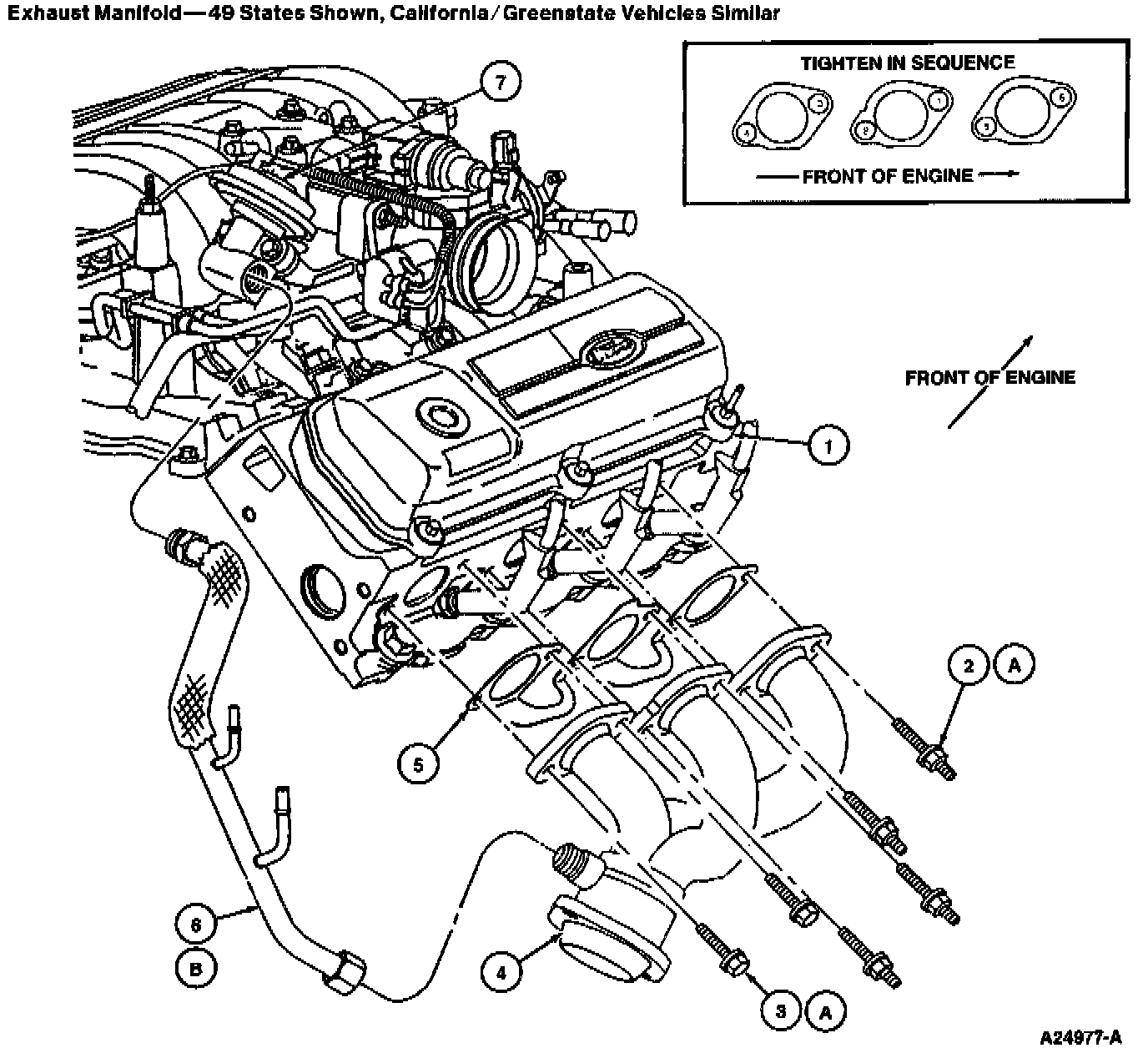

Start new remaining exhaust manifold retaining stud bolts and bolts. Tighten new exhaust manifold retaining bolts to 30-36 Nm (23-26 ft. lbs.) in the sequence shown in the illustration.








RH Side
Tighten exhaust manifold retaining bolts and stud bolts to 30-36 Nm (23-26 ft. lbs.).
