Clutch System

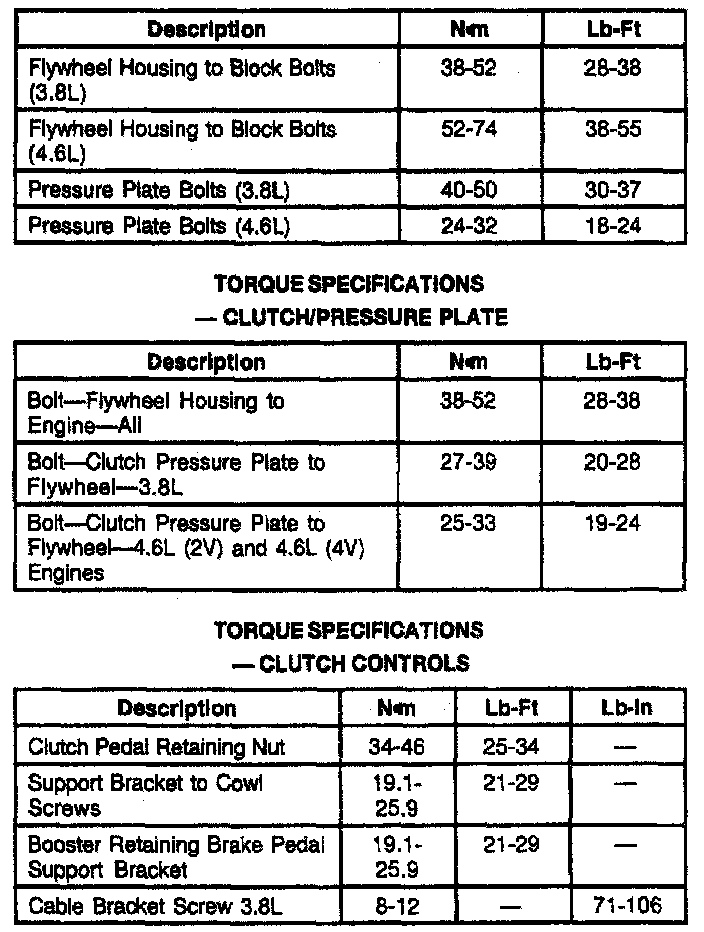

T45 5-spd M/T, Clutch System/Pressure Plate/Controls:





T45 5-spd M/T, Clutch Controls:





T45 5-spd M/T, Transmission Torque:





T45 5-spd M/T, Transmission Torque:
