Engine Control Module

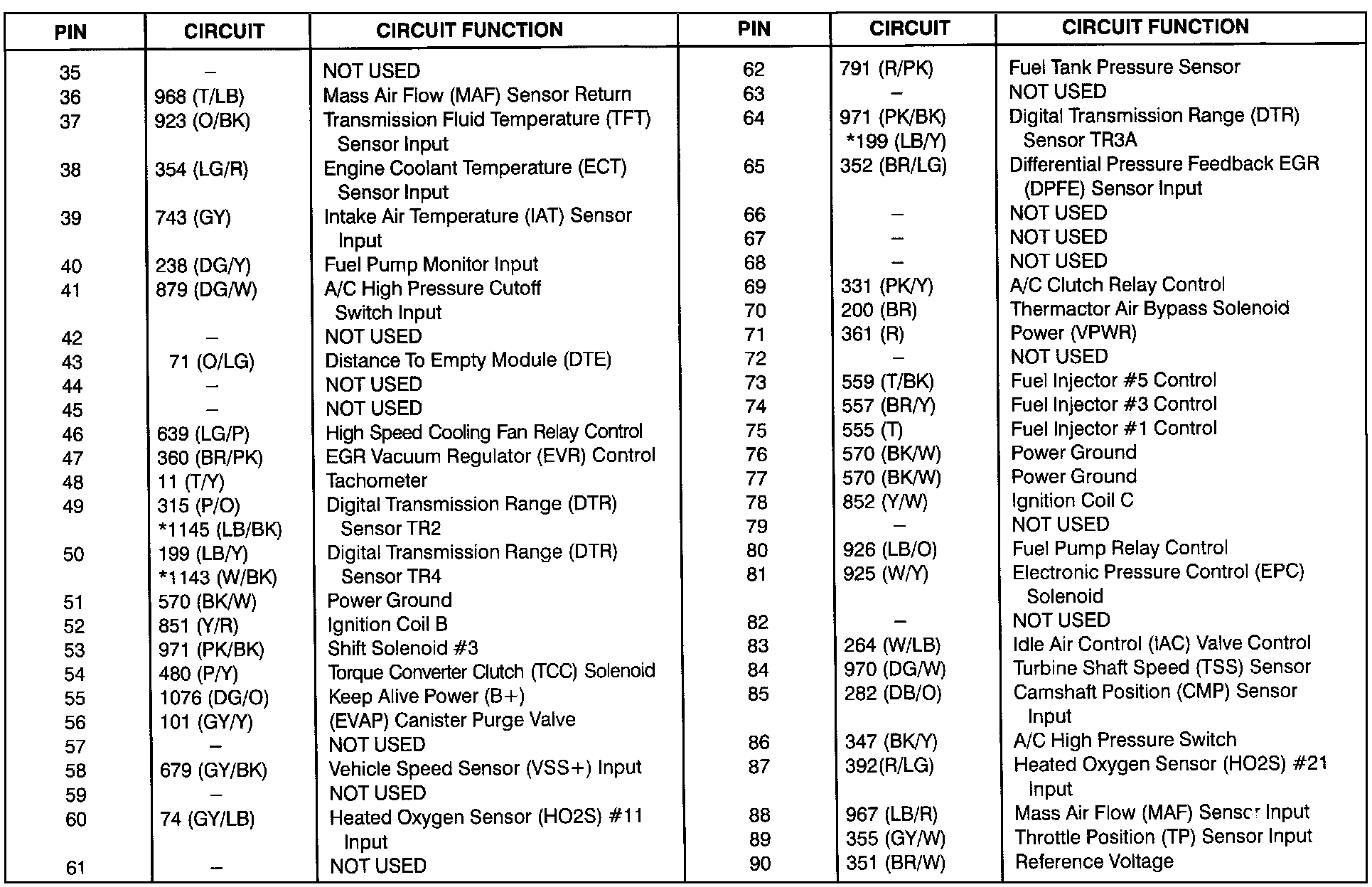

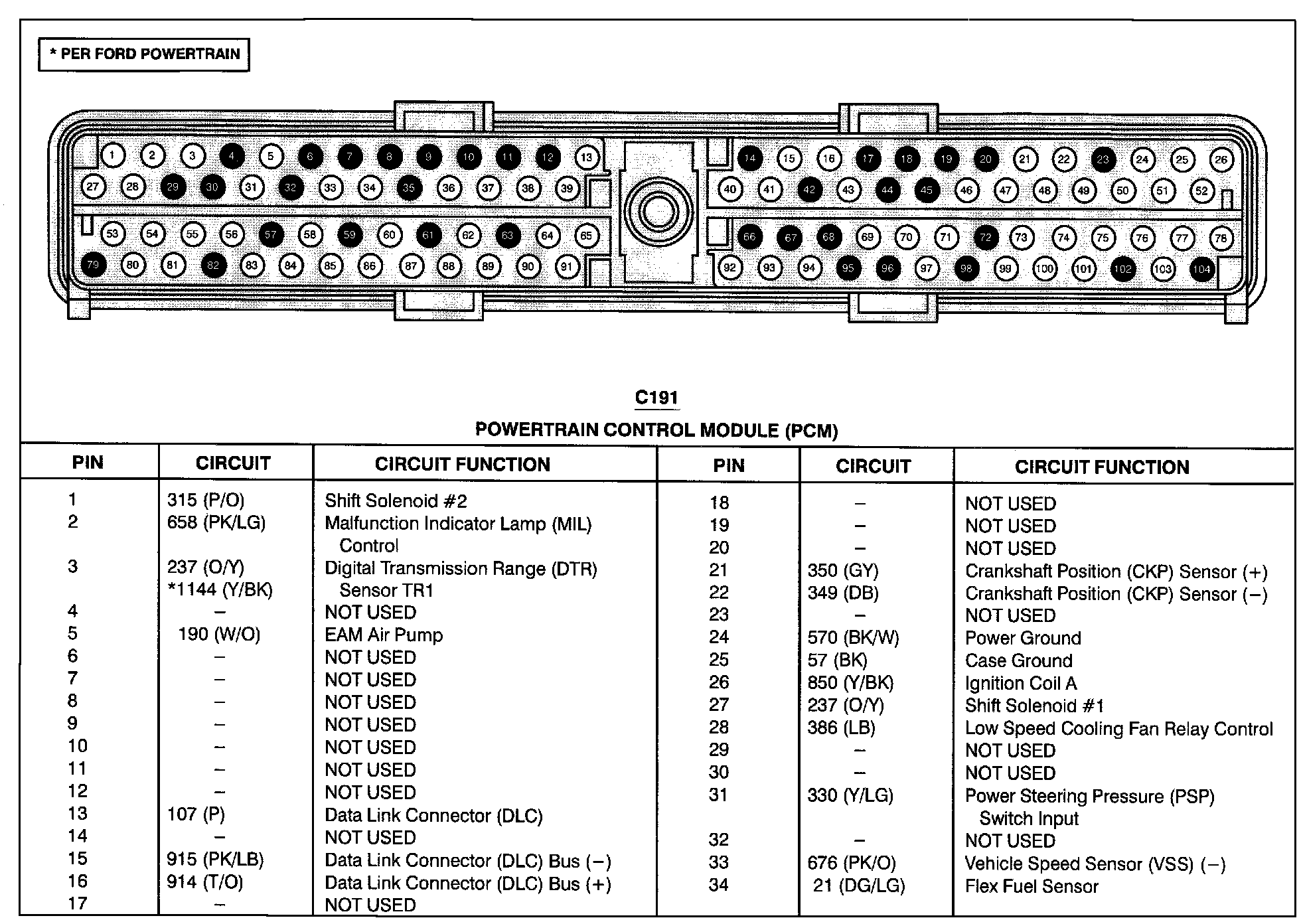

Engine Controls (part 1 Of 3):
Engine Controls (part 2 Of 3):
Engine Controls (part 3 Of 3):
