Intake Manifold

TORQUE SPECIFICATIONS
Intake Manifold Support to Throttle Body: 8-12 Nm (71-106 inch. lbs.)
Intake Manifold Support to RH Cylinder Head: 40-55 Nm (30-40 ft. lbs.)
Upper to Lower Intake Manifold Bolts/Studs: 20-30 Nm (15-22 ft. lbs.)

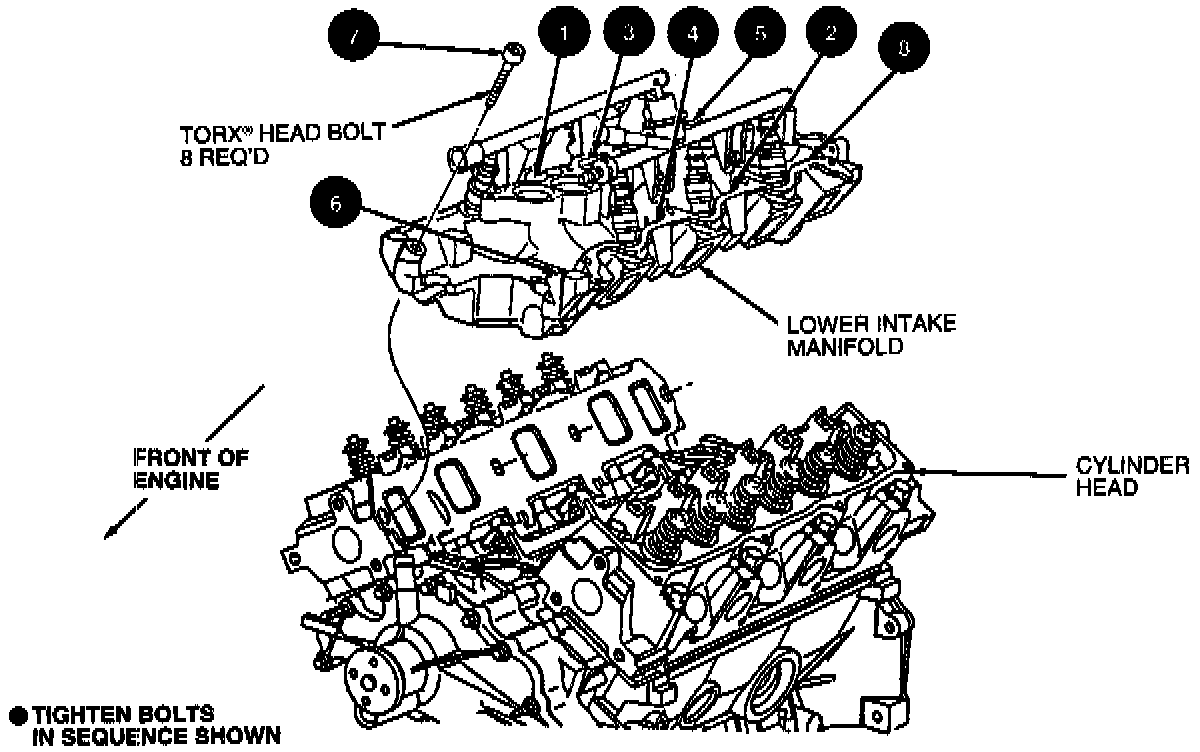

Lower Intake Manifold to Cylinder Head Bolts
- Tighten in two steps
1. 20-30 Nm (15-22 ft. lbs.)
2. 26-32 Nm (20-23 ft. lbs.)
