Intake Manifold






TORQUE SPECIFICATIONS

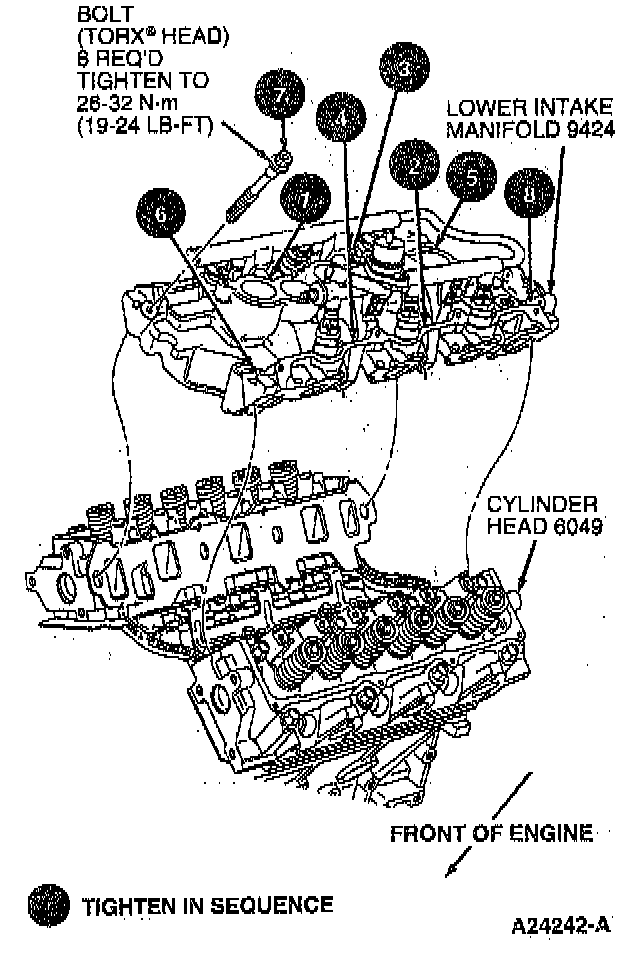

Intake Manifold to Cylinder Head Bolt
Tighten in two steps:
- 20-30 Nm (15-22 Ft. Lbs.)
- 26-32 Nm (20-23 Ft. Lbs.)
