Multi-Function Switch

Multi-Function Switch - Component Side:

Part 2 Of 2:

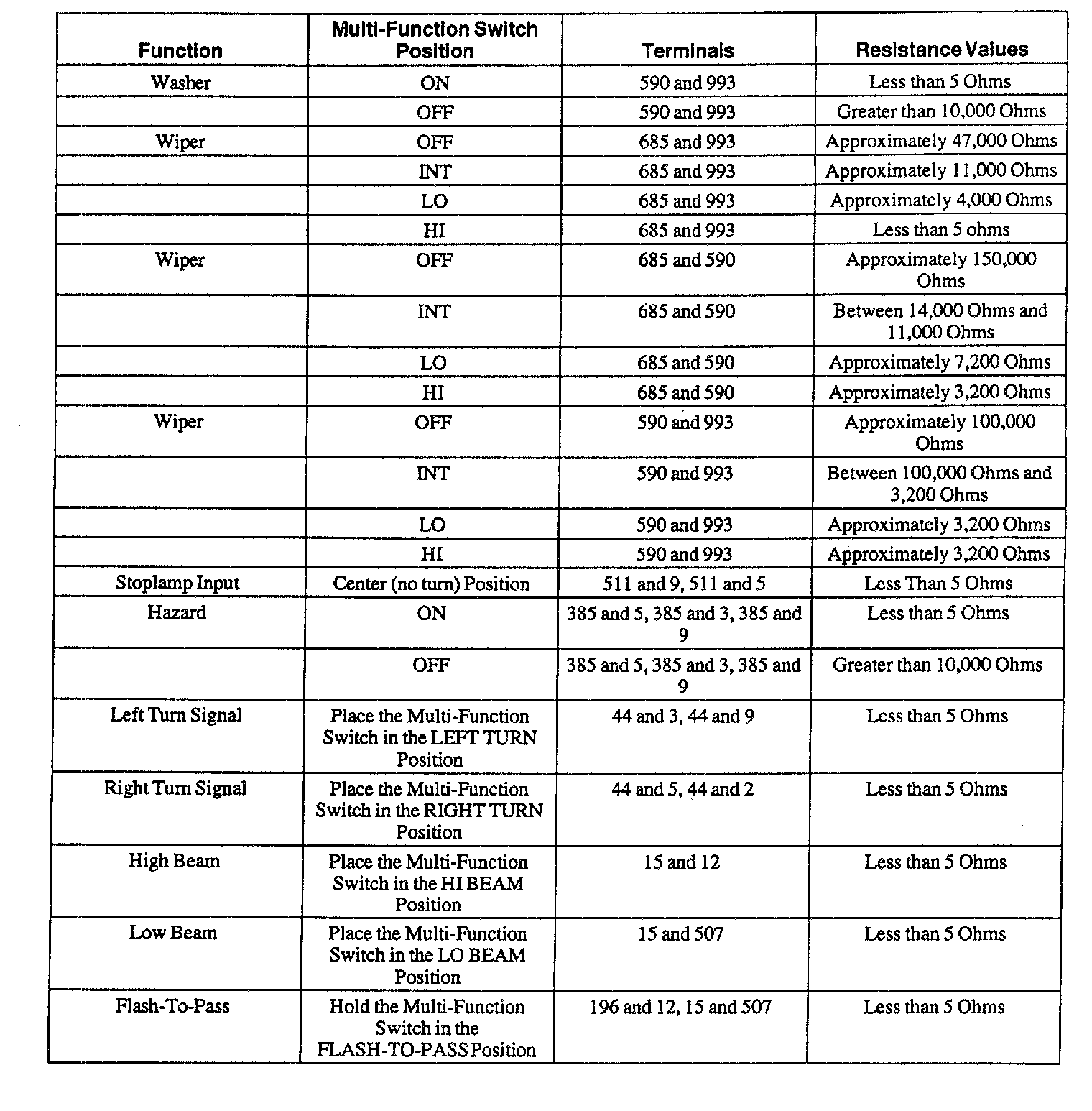

1. Measure the resistance between the multi-function switch terminals.
1. If the resistances are as specified, multi-function switch is OK. RETURN the multi-function switch to the vehicle. TEST the system for normal operation.
2. If the resistances are not as specified, REPLACE the multi-function switch. Refer to Multi-Function Switch/Service and Repair in Turn Signals. TEST the system for normal operation.
