A/T Technical Data

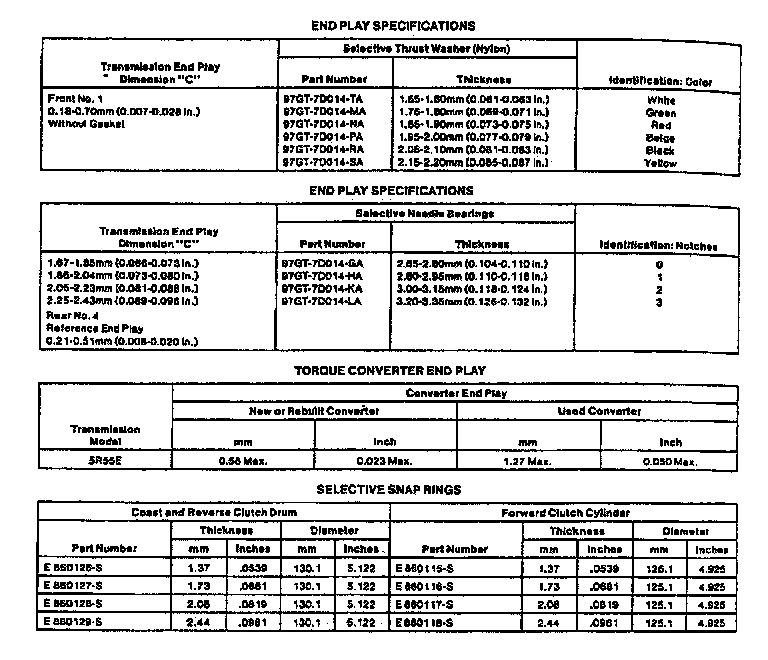

5R55E 5-spd A/T, Transmission/Converter End Play:

5R55E 5-spd A/T, Gear Ratios:

5R55E 5-spd A/T, Solenoid/Shift Speeds:

5R55E 5-spd A/T, Line Pressure:

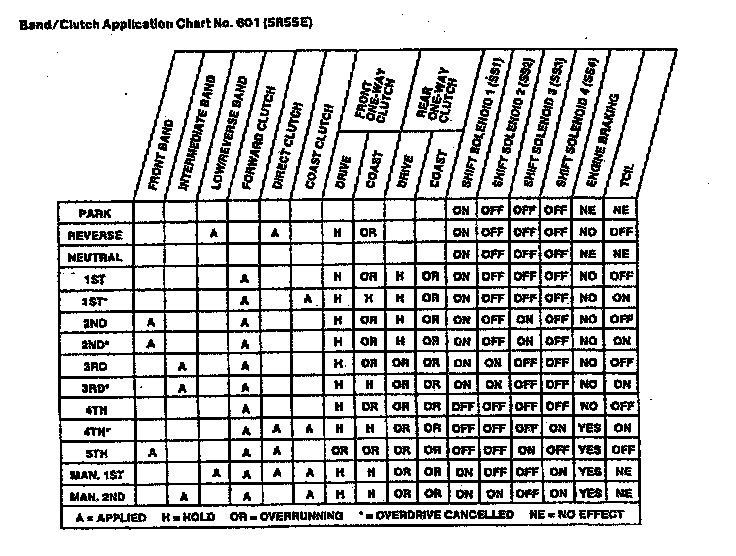

5R55E 5-spd A/T, Band/Clutch Application:

5R55E 5-spd A/T, Band Adjustment/Clutch Plate Chart:

5R55E 5-spd A/T, Speed Drive/Stall Speeds Chart:

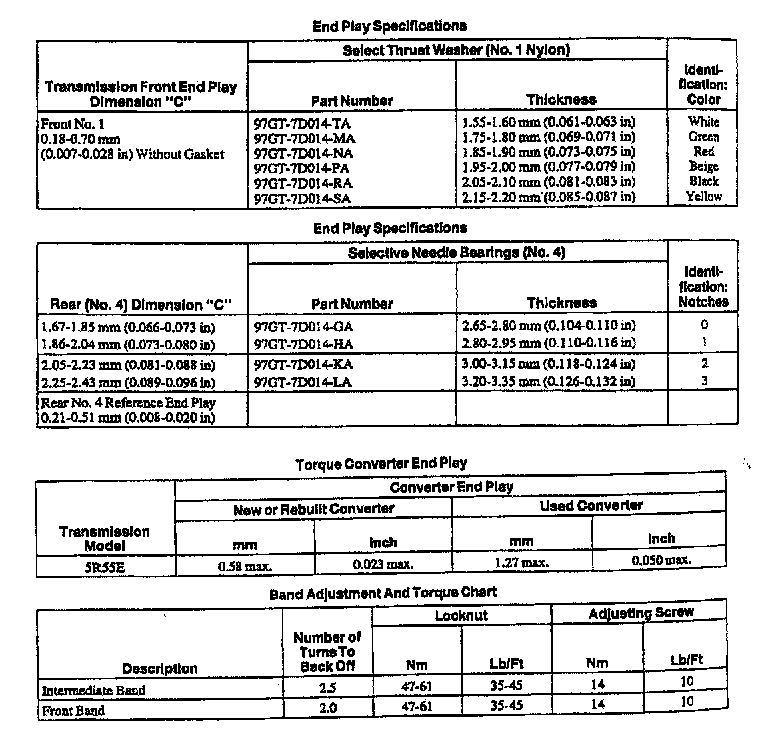

5R55E 5-spd A/T, Transmission/Converter End Play (Explorer/Mountaineer):

5R55E 5-spd A/T, Clutch Plate Clearance:

5R55E 5-spd A/T, Reverse/Forward Clutch-Gear Ratios:

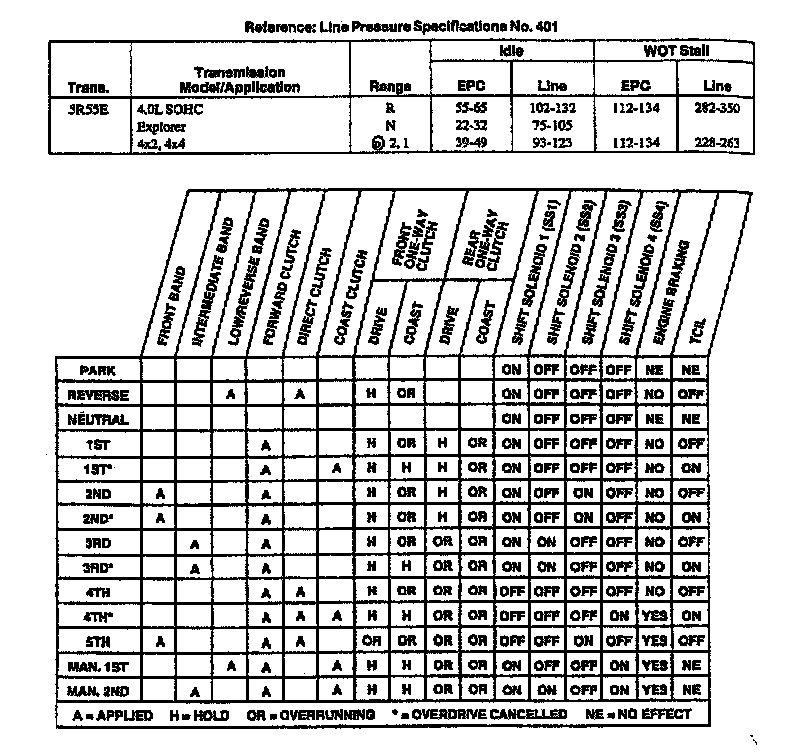

5R55E 5-spd A/T, Line Pressure - Band/Clutch Application:

5R55E 5-spd A/T, Shift Speeds:

5R55E 5-spd A/T, Solenoid Application Chart:
