A/T Torque Data

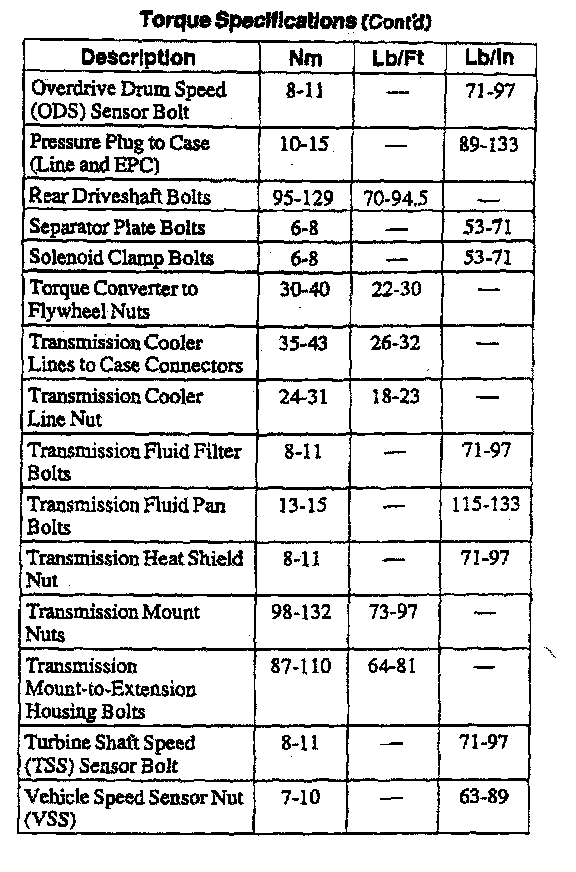

5R55E 5-spd A/T, Transmission Torque:




5R55E 5-spd A/T, Transmission Torque:





5R55E 5-spd A/T, Transmission Torque:





5R55E 5-spd A/T, Cooling Fittings/External Control:

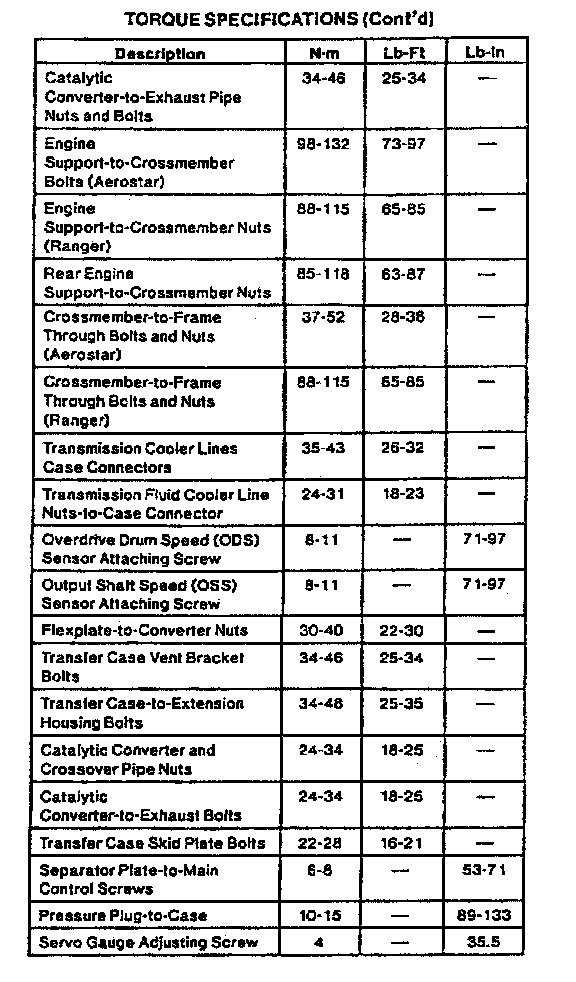

5R55E 5-spd A/T, Transmission Torque (Explorer/Mountaineer):




5R55E 5-spd A/T, Transmission Torque:





5R55E 5-spd A/T, Transmission Torque:
