Automatic Transmission/Transaxle

1 Of 6:




2 Of 6:




3 Of 6:




4 Of 6:




5 Of 6:




6 Of 6:

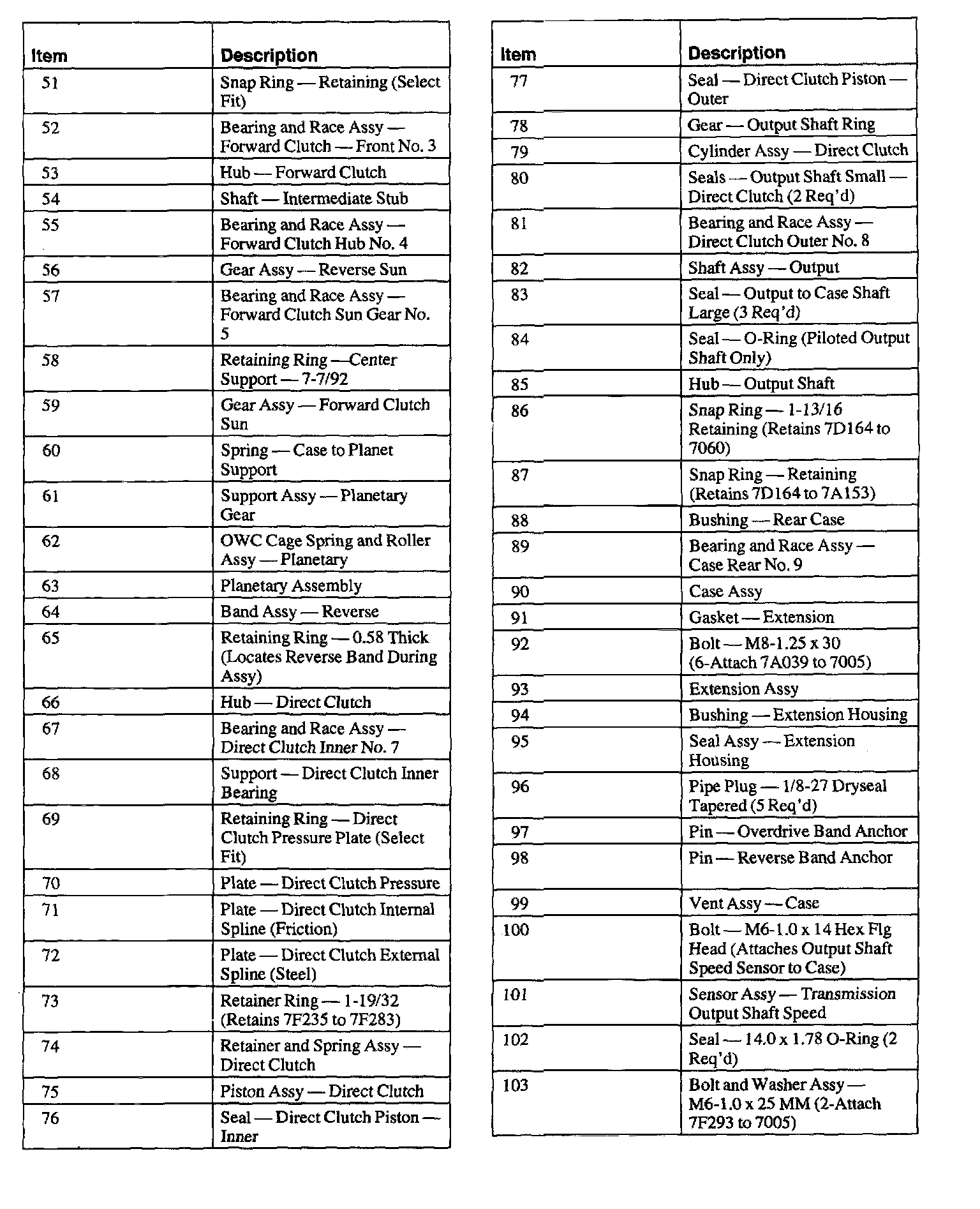

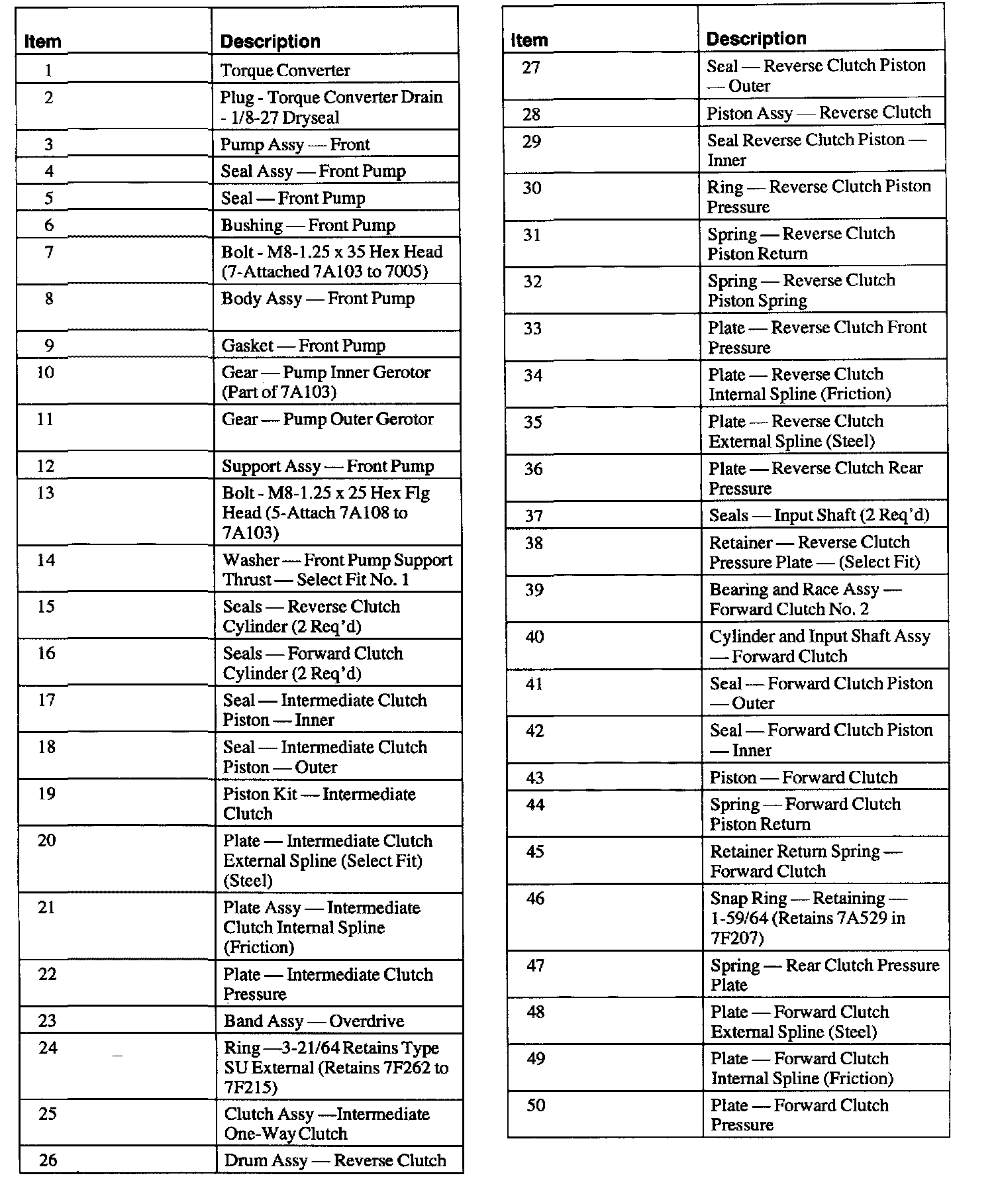

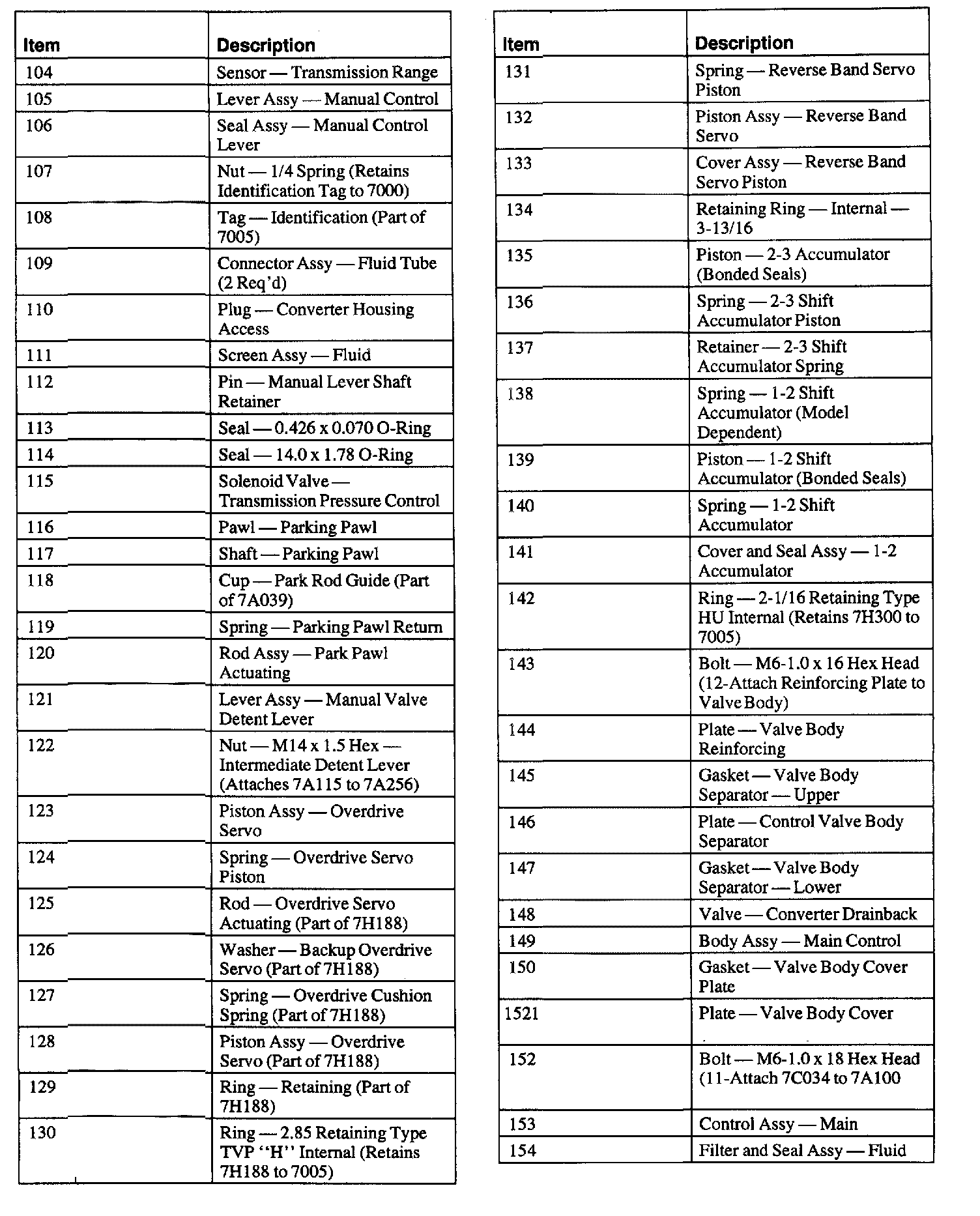

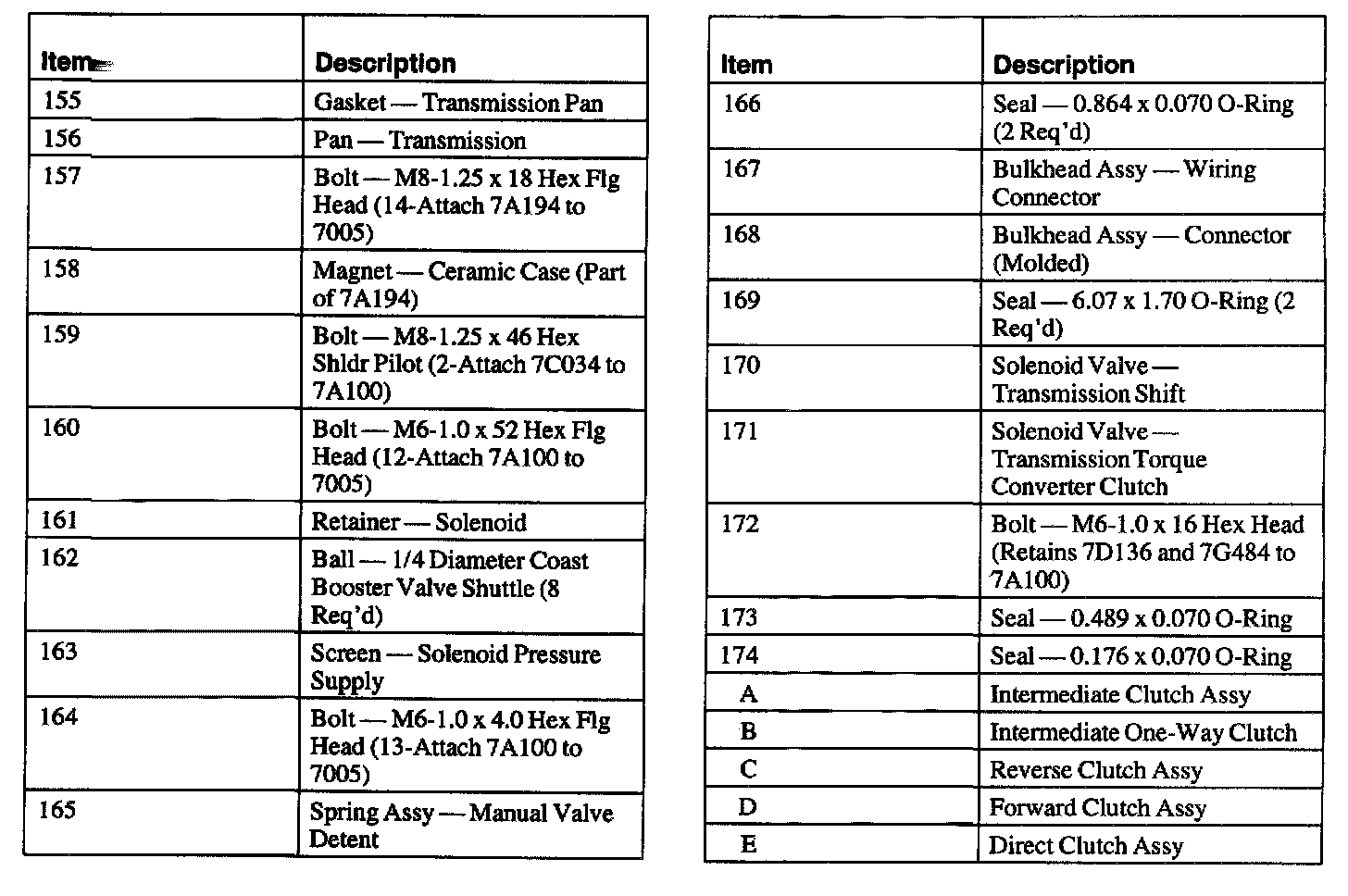

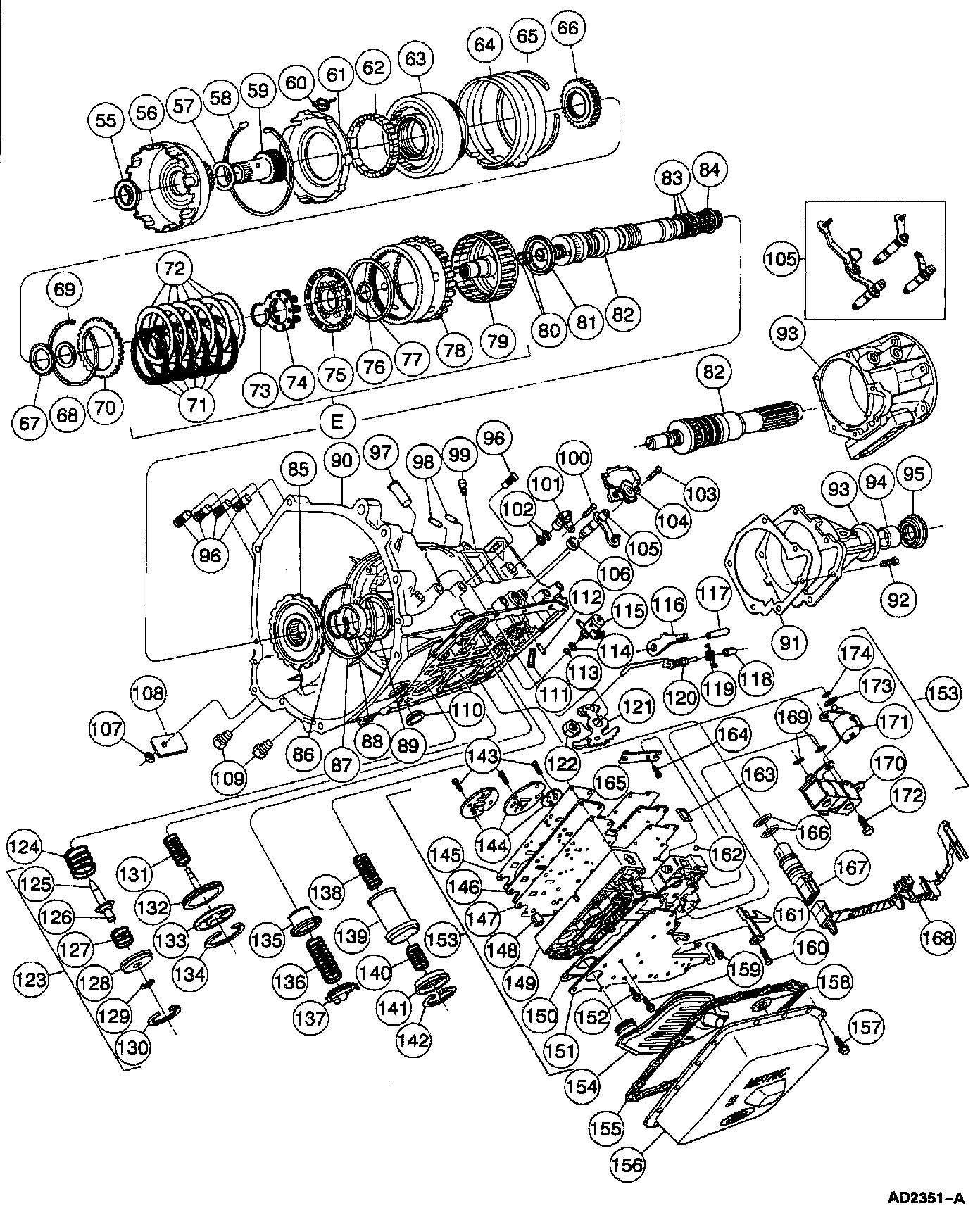

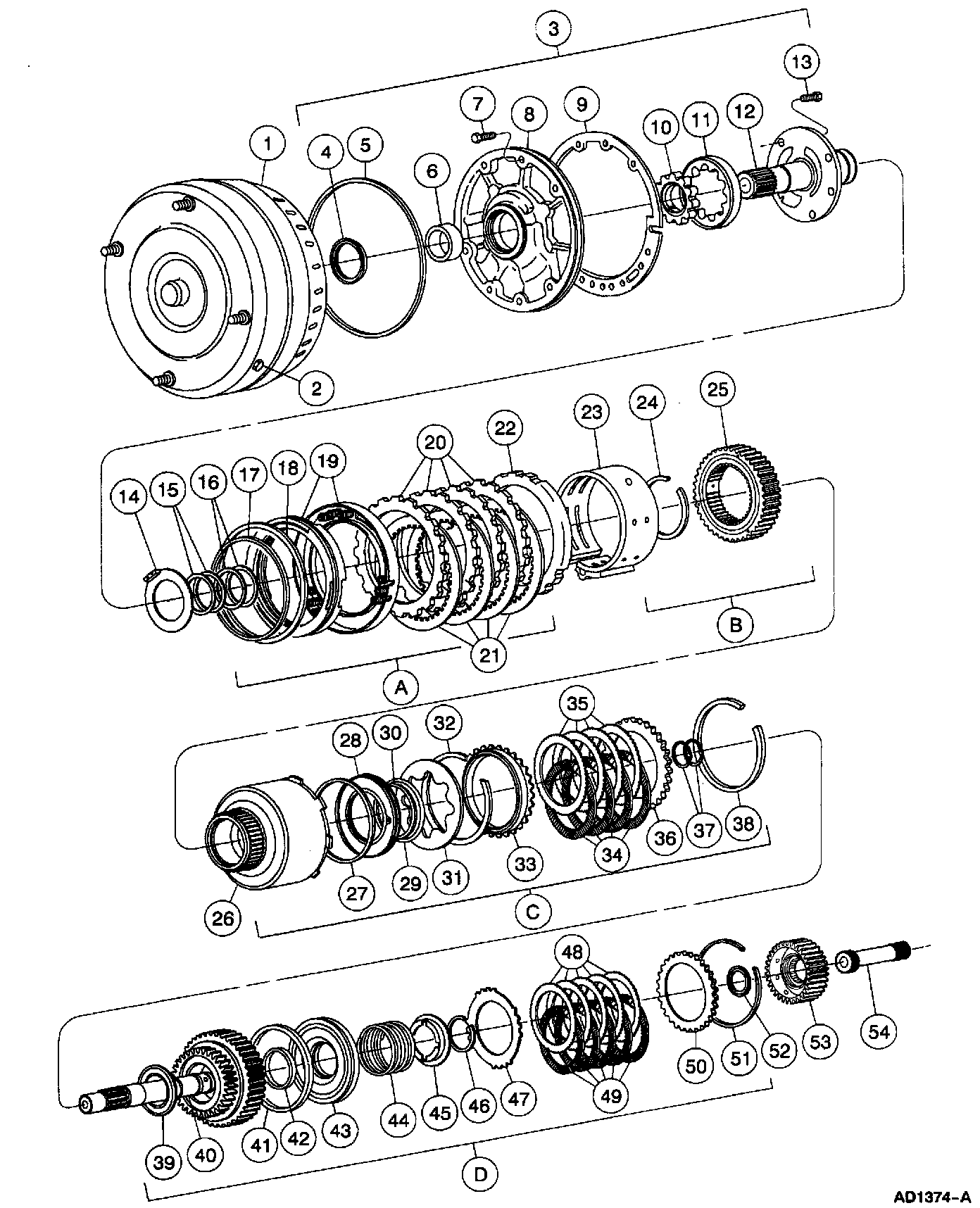

4R70W Automatic Transmission-Disassembled View
