Master Power Window Switch

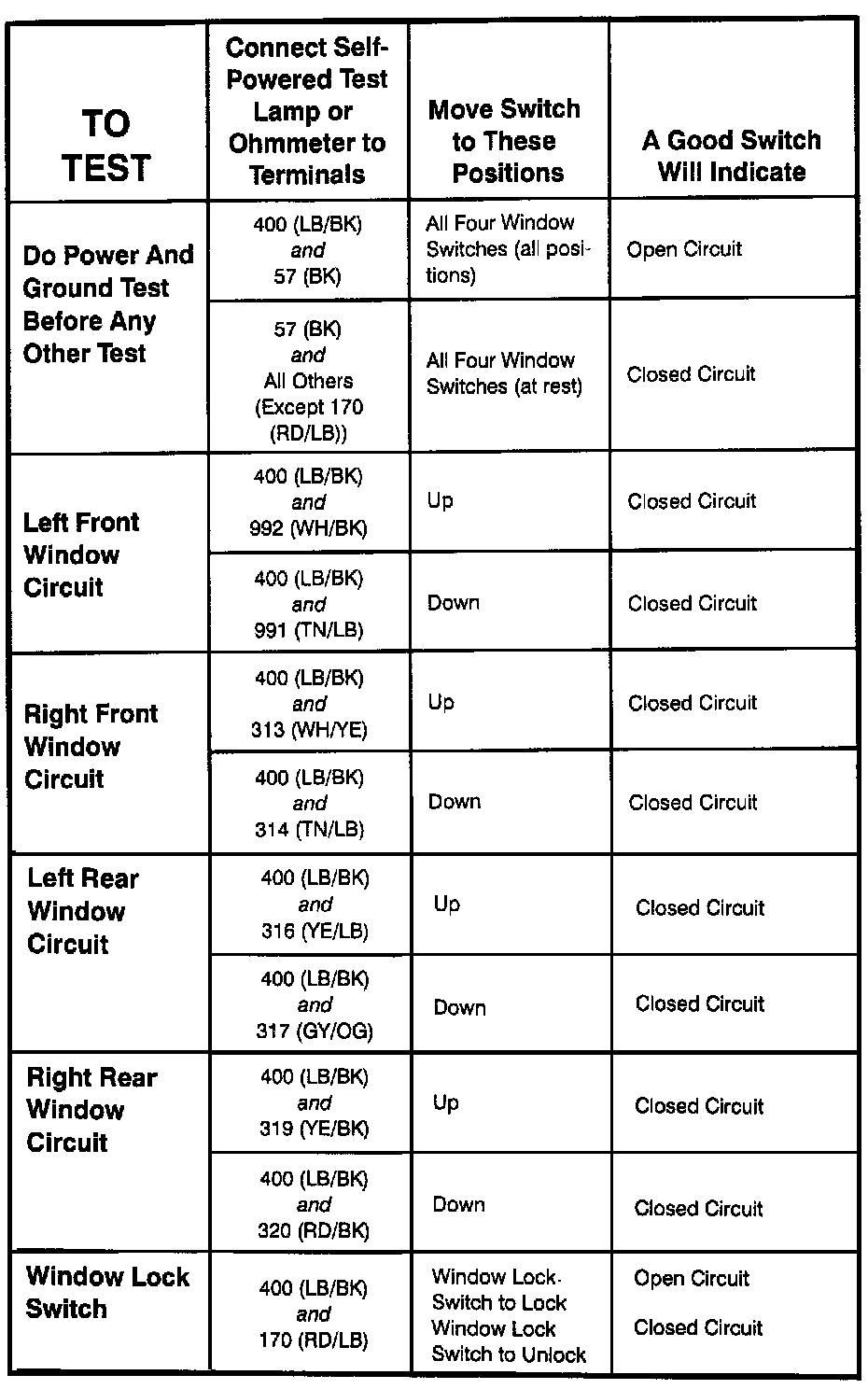

Component Testing Procedure:






Terminal - Master Window Control Switch:






Terminal Locations:

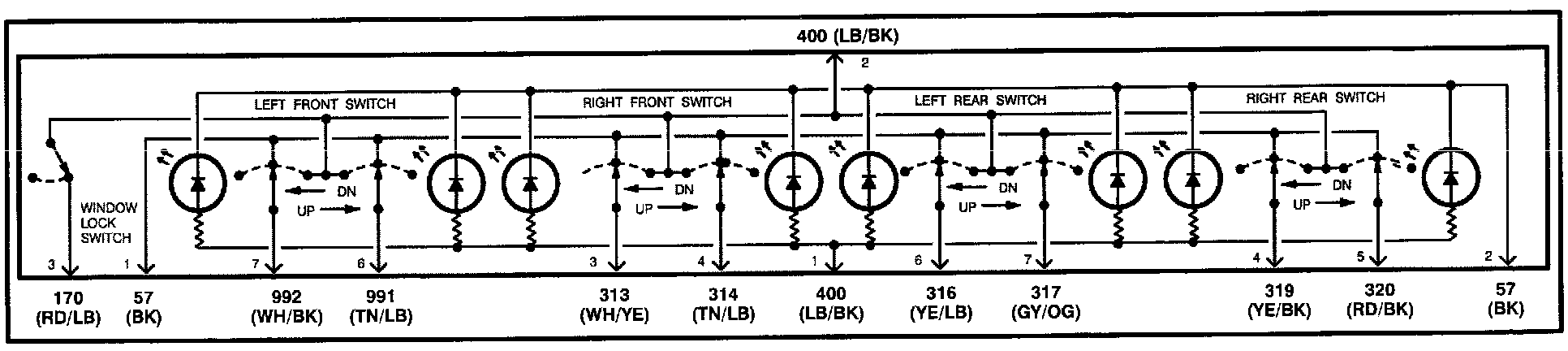

Schematic - Master Window Control Switch:
