System Specifications

GENERAL SPECIFICATIONS




Front Suspension




Rear Suspension

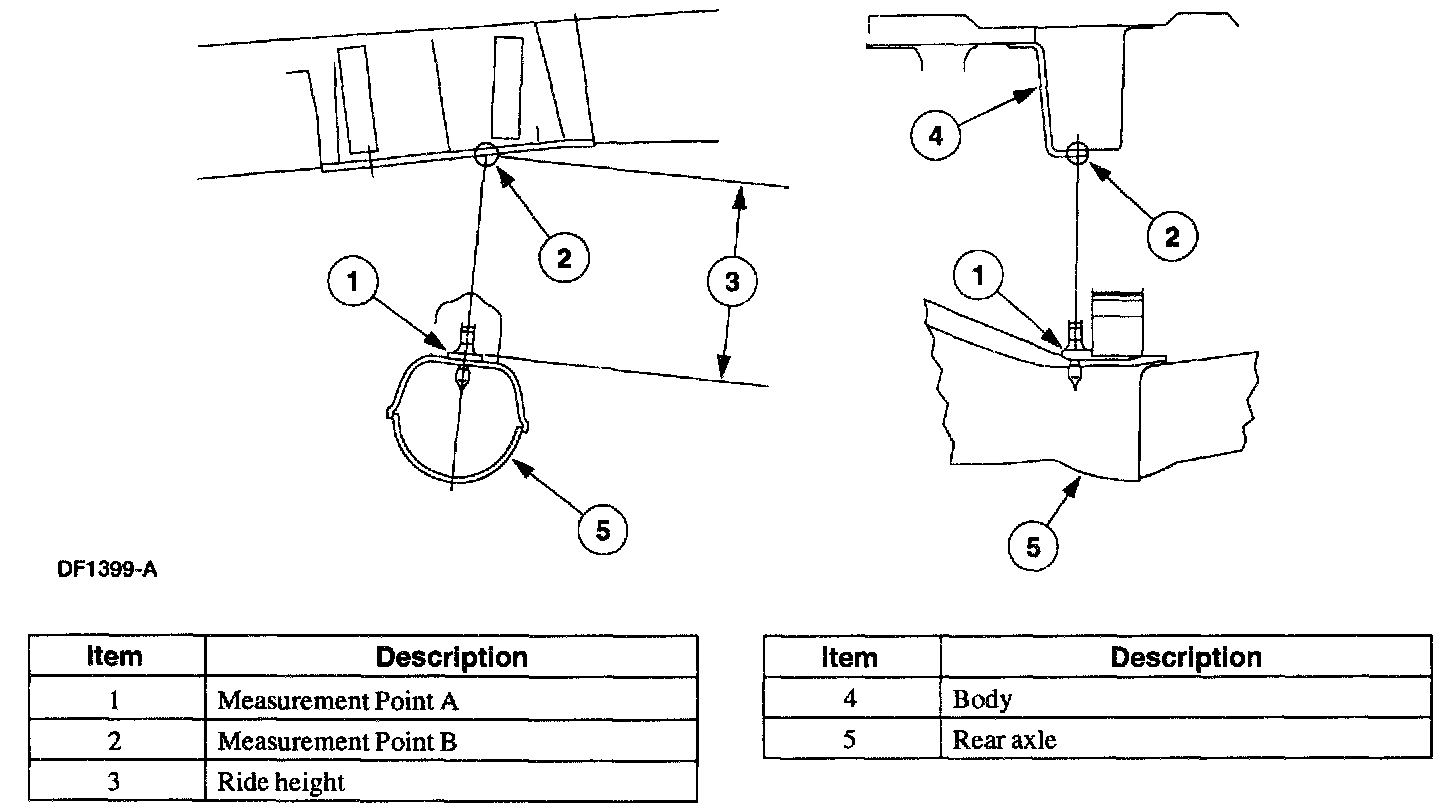

Vehicle Ride Height
Front 59 mm (2.36 inch) ± 8.4 mm (0.33 inch)
Rear 165 mm (6.6 inch) ± 12 mm (0.48 inch)
