Diagnostic Trouble Code Reference Charts

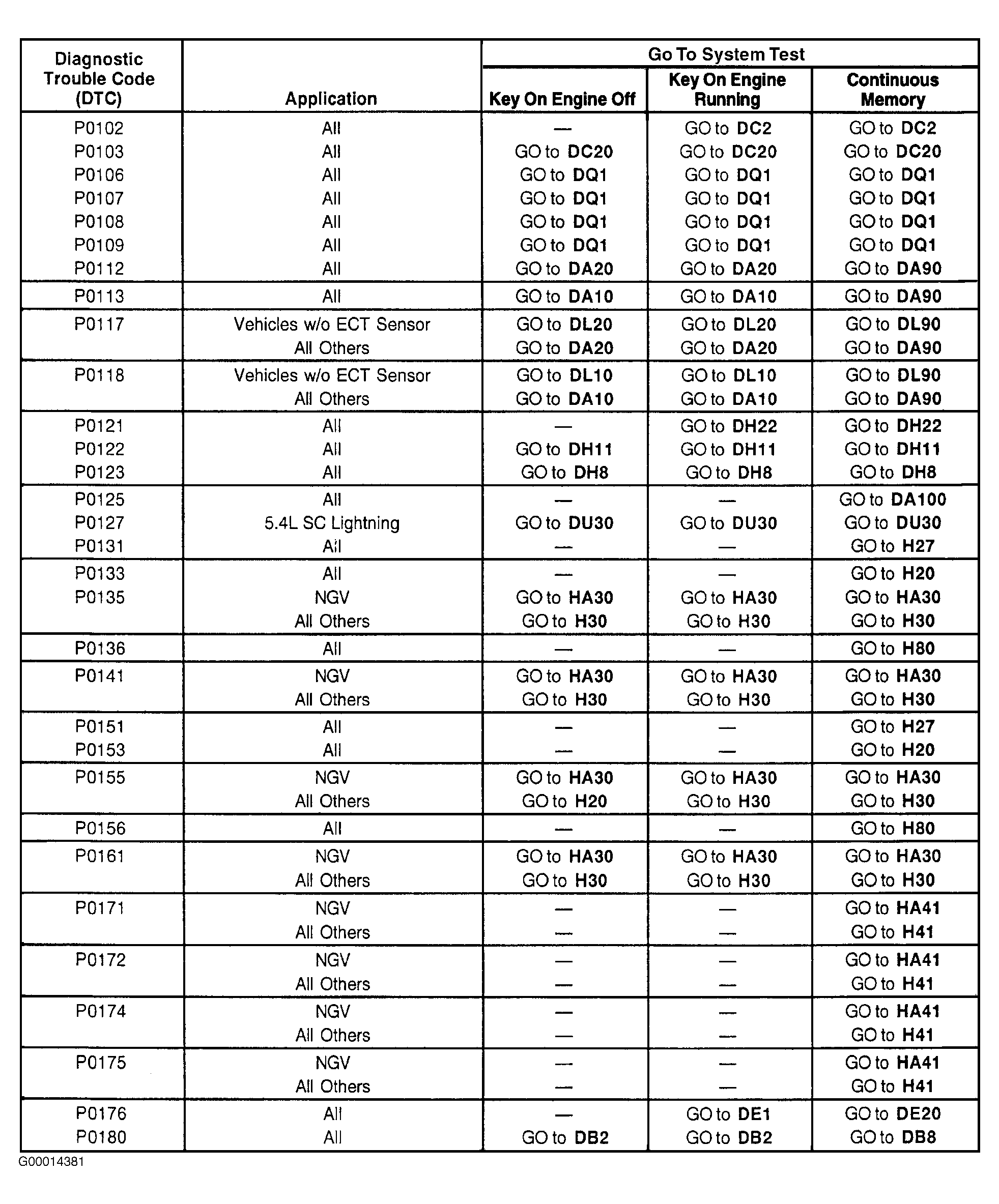

Fig 1: Diagnostic Trouble Code Reference Chart (P0102-P0180)
G00014381Courtesy of FORD MOTOR CO.

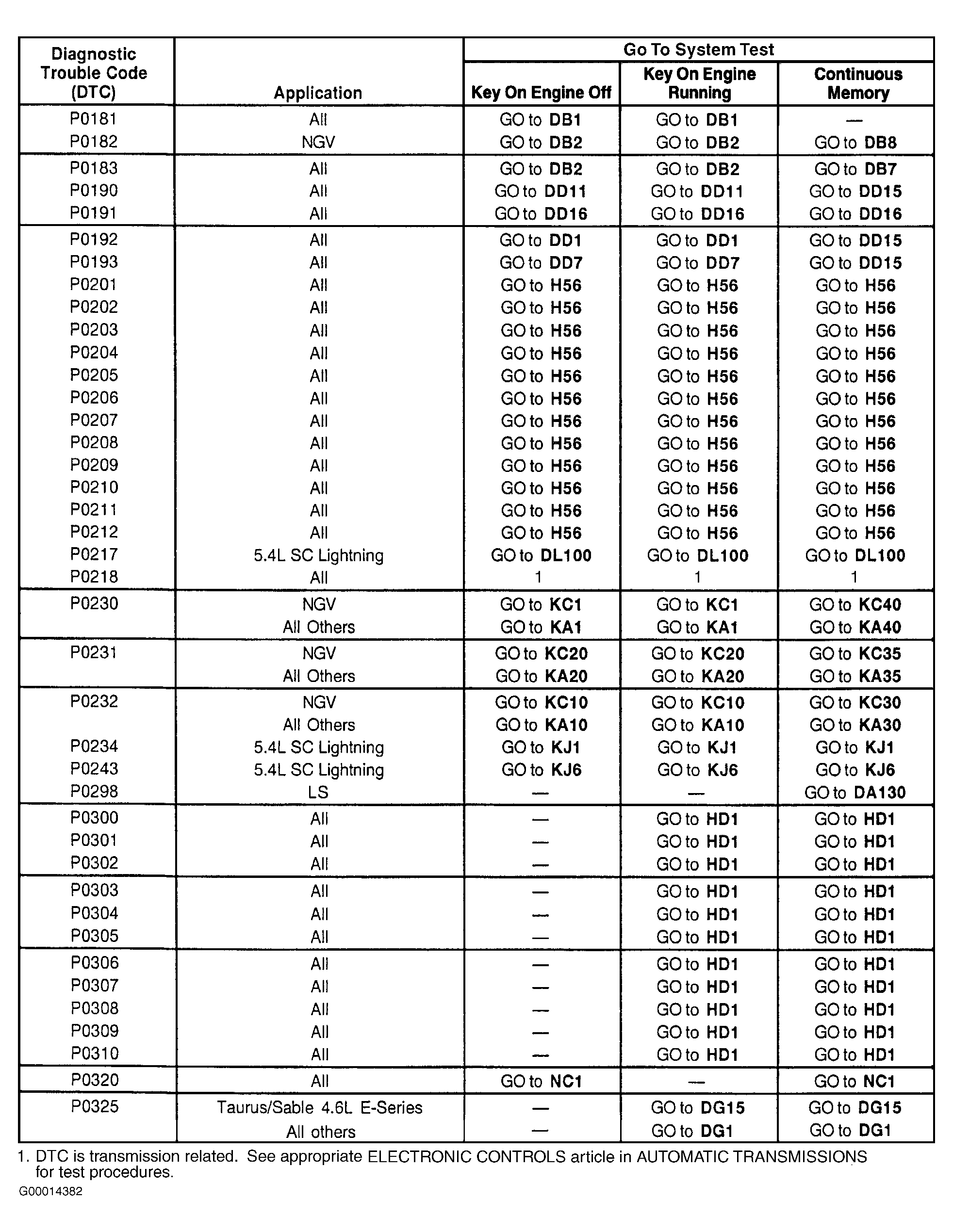

Fig 2: Diagnostic Trouble Code Reference Chart (P0181-P0325)
G00014382Courtesy of FORD MOTOR CO.

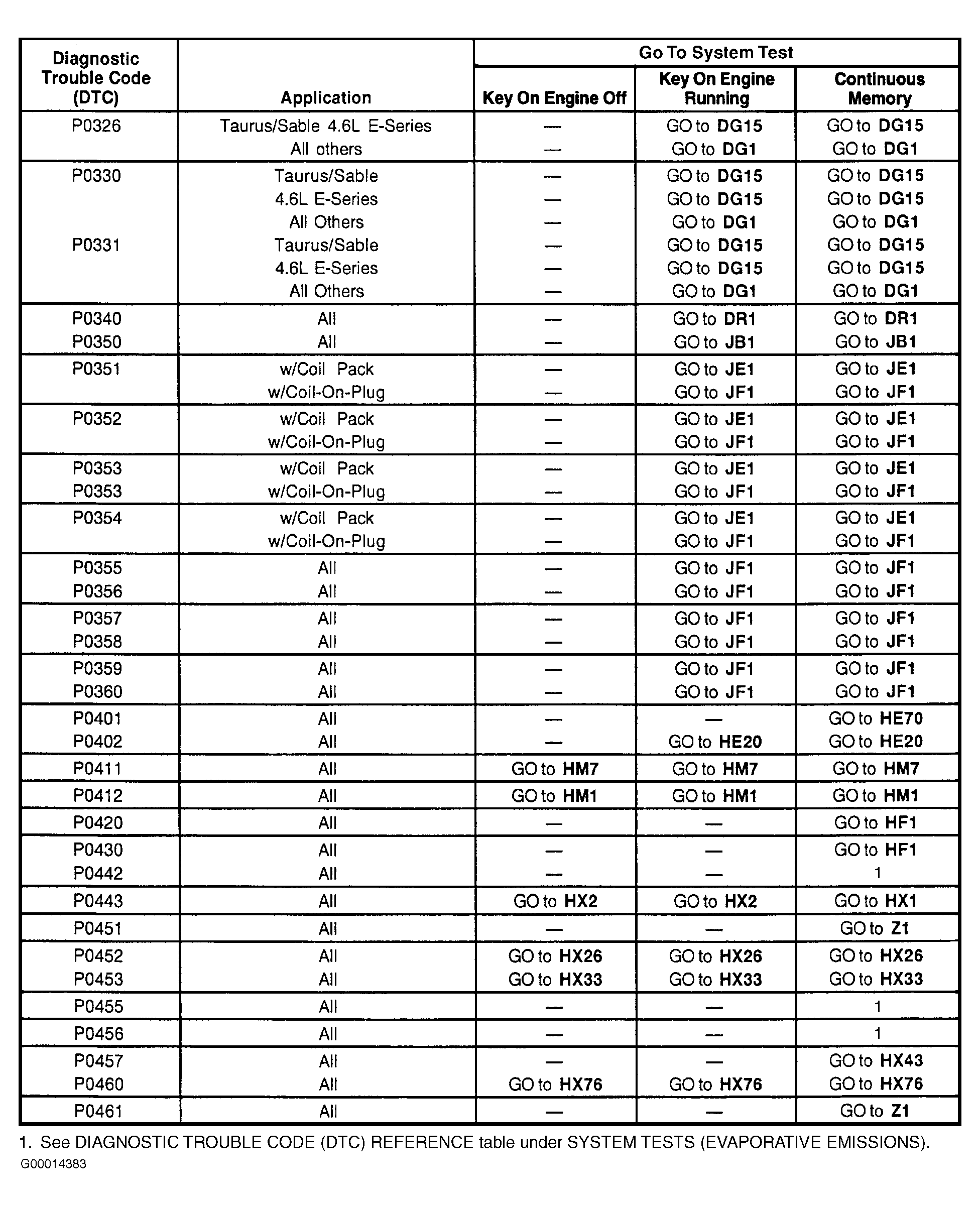

Fig 3: Diagnostic Trouble Code Reference Chart (P0326-P0461)
G00014383Courtesy of FORD MOTOR CO.

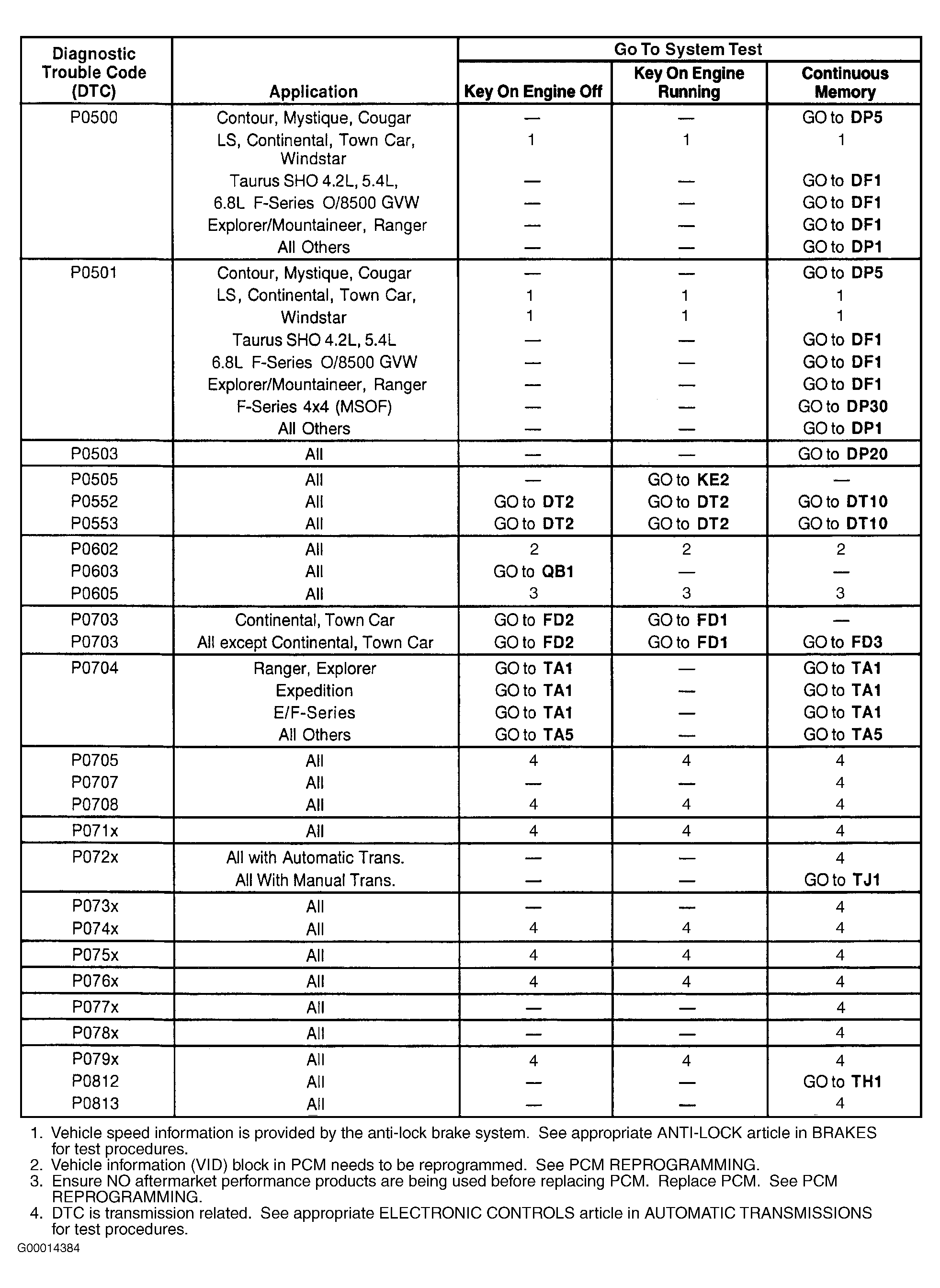

Fig 4: Diagnostic Trouble Code Reference Chart (P0500-P0813)
G00014384Courtesy of FORD MOTOR CO.

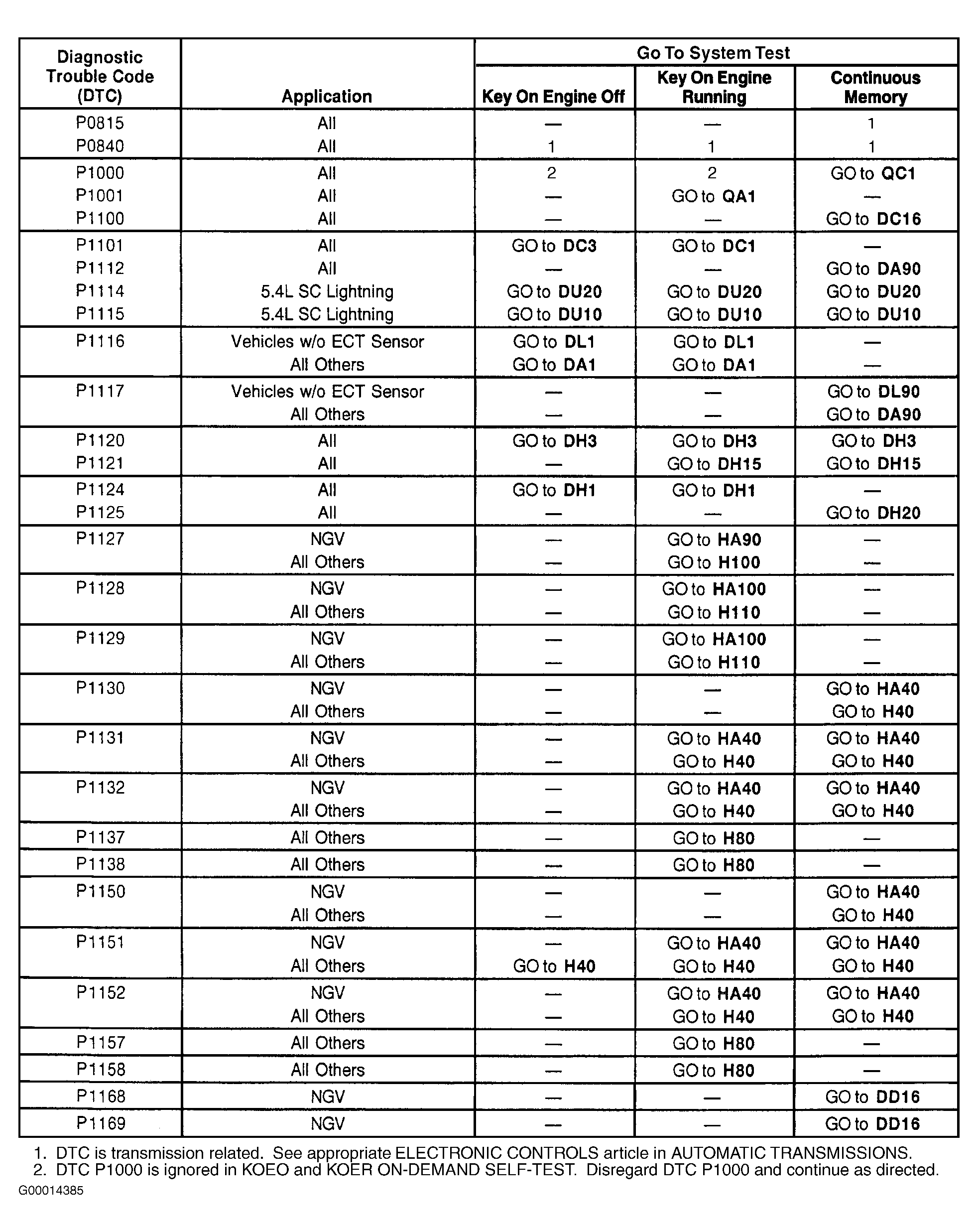

Fig 5: Diagnostic Trouble Code Reference Chart (P0815-P1169)
G00014385Courtesy of FORD MOTOR CO.

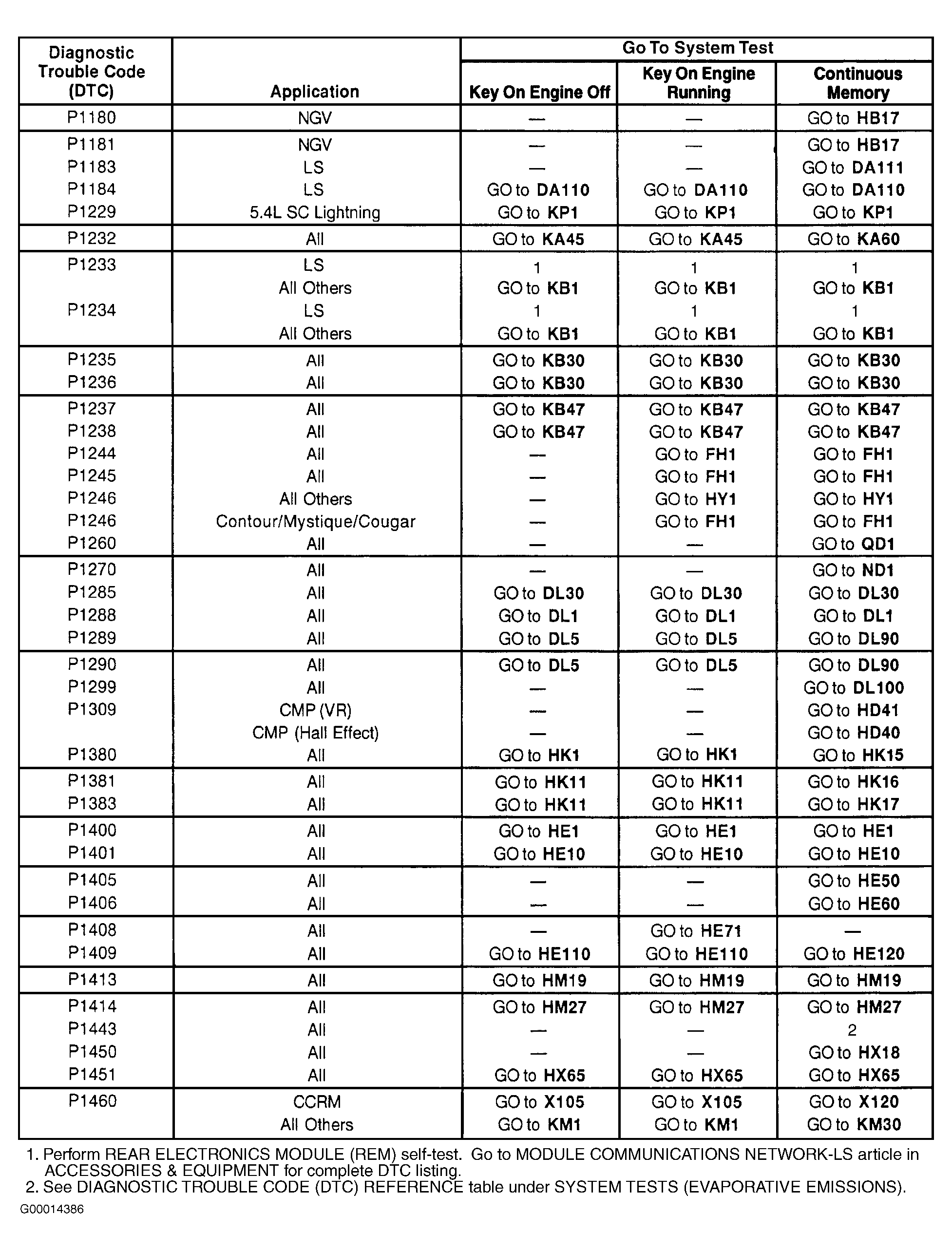

Fig 6: Diagnostic Trouble Code Reference Chart (P1180-P1460)
G00014386Courtesy of FORD MOTOR CO.

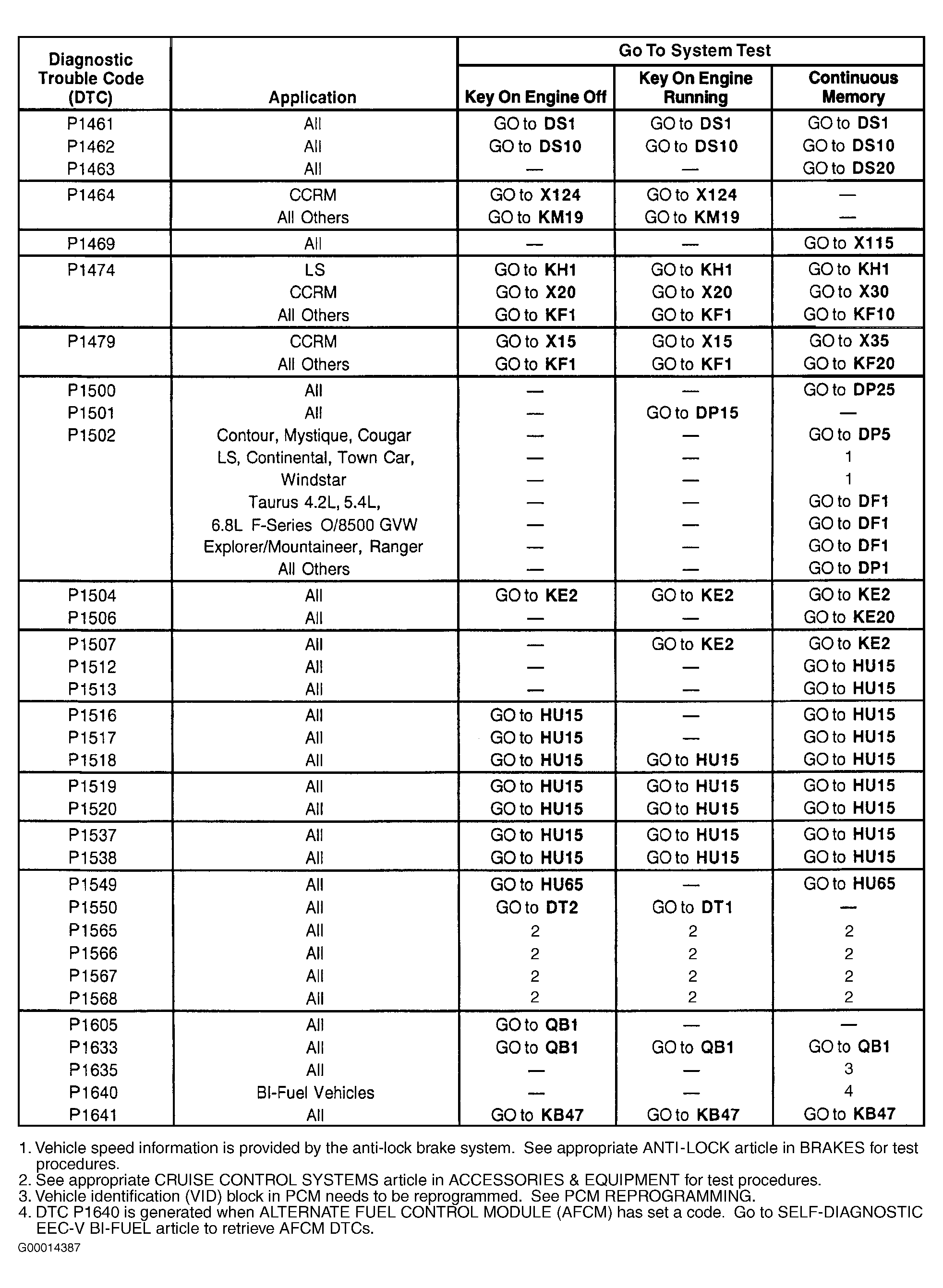

Fig 7: Diagnostic Trouble Code Reference Chart (P1461-P1641)
G00014387Courtesy of FORD MOTOR CO.

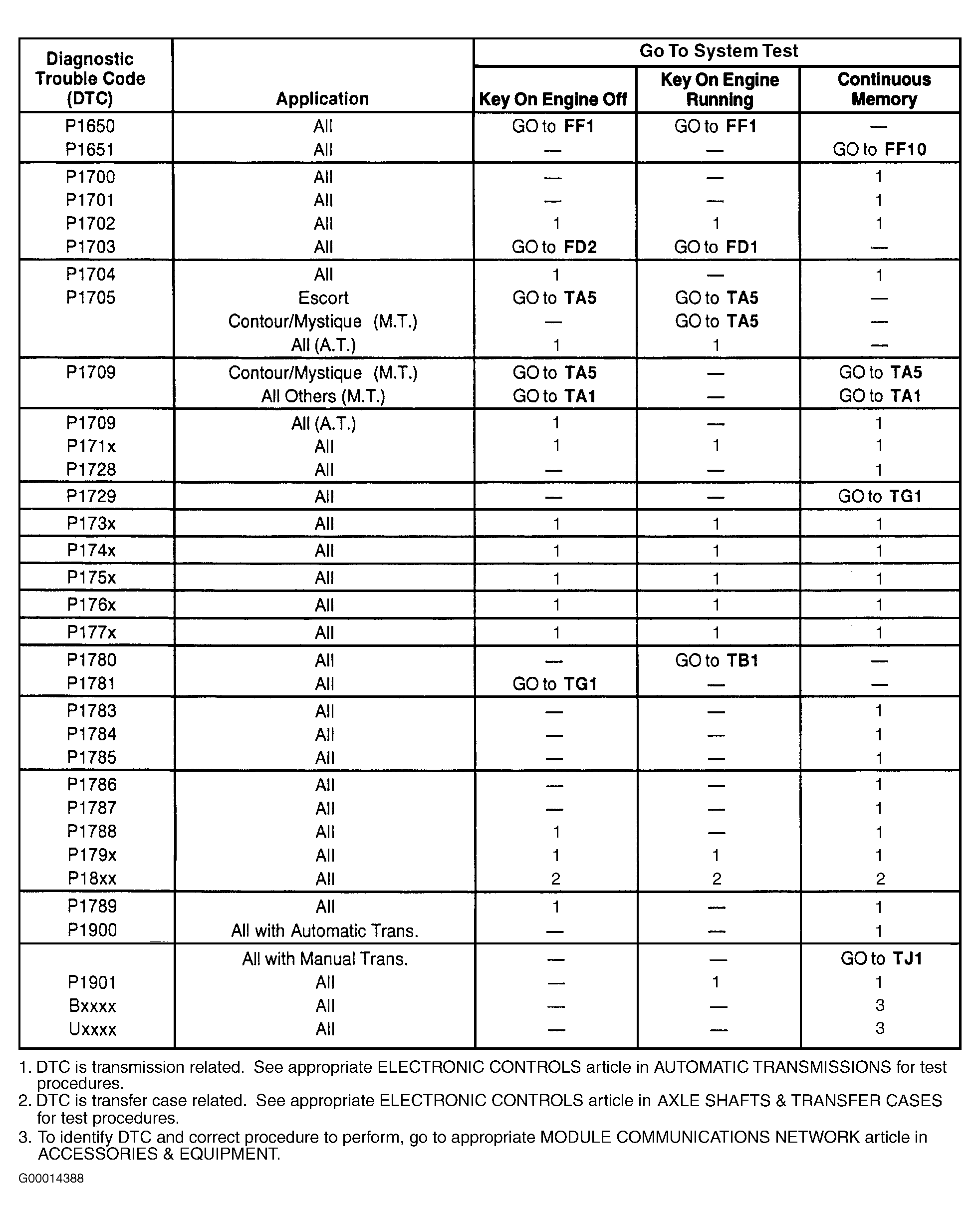

Fig 8: Diagnostic Trouble Code Reference Chart (P1650-P1901, B & U Codes)
G00014388Courtesy of FORD MOTOR CO.
