Removal & Installation: CLOCKSPRING: Installation
WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- Connect negative battery cable. With air bag simulators install at all deployable devices, perform system operation check. See SYSTEM OPERATION CHECK
under . Disconnect negative battery cable. Wait at least one minute for back-up power supply to deplete stored energy. If installing NEW clockspring, remove locking mechanism pull ring. If installing existing clockspring, remove tape applied during removal procedure. If clockspring rotor has moved or if unsure of clockspring rotor position, center clockspring. See CLOCKSPRING CENTERING
under ADJUSTMENTS. Maintain clockspring centered position.NOTE: Slight turning of clockspring is allowable during installation to properly align clockspring to steering column.

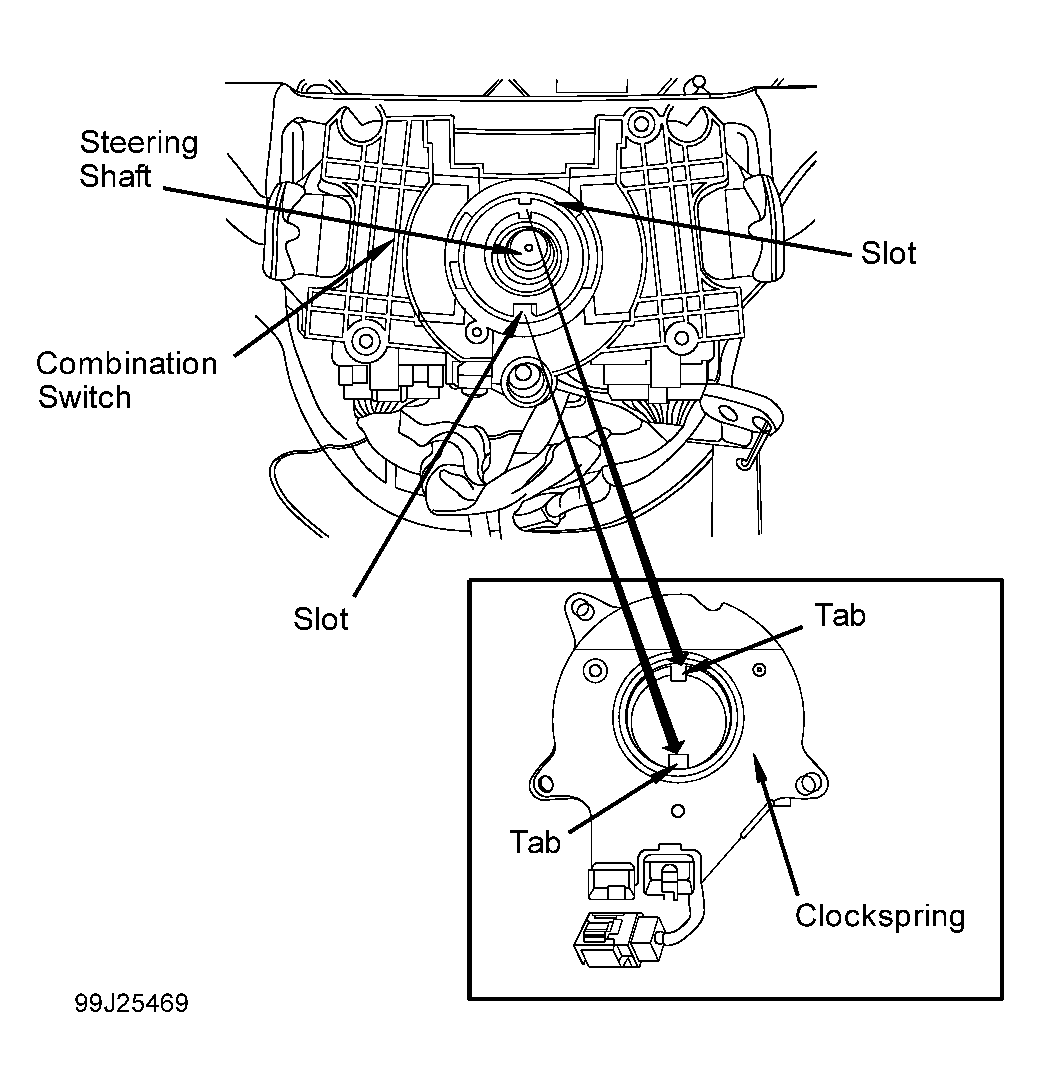

- Remove air bag simulator from vehicle harness side of clockspring connector. Position clockspring on steering column and reconnect electrical connectors. Align large and small tabs on clockspring with large and small slots on steering column and slide clockspring over steering column. With clockspring sitting flush against combination switch, install clockspring mounting screws.
- To complete installation, reverse removal procedure. Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Ensure air bag system is functioning properly. See SYSTEM OPERATION CHECK .
