Jacking Points

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

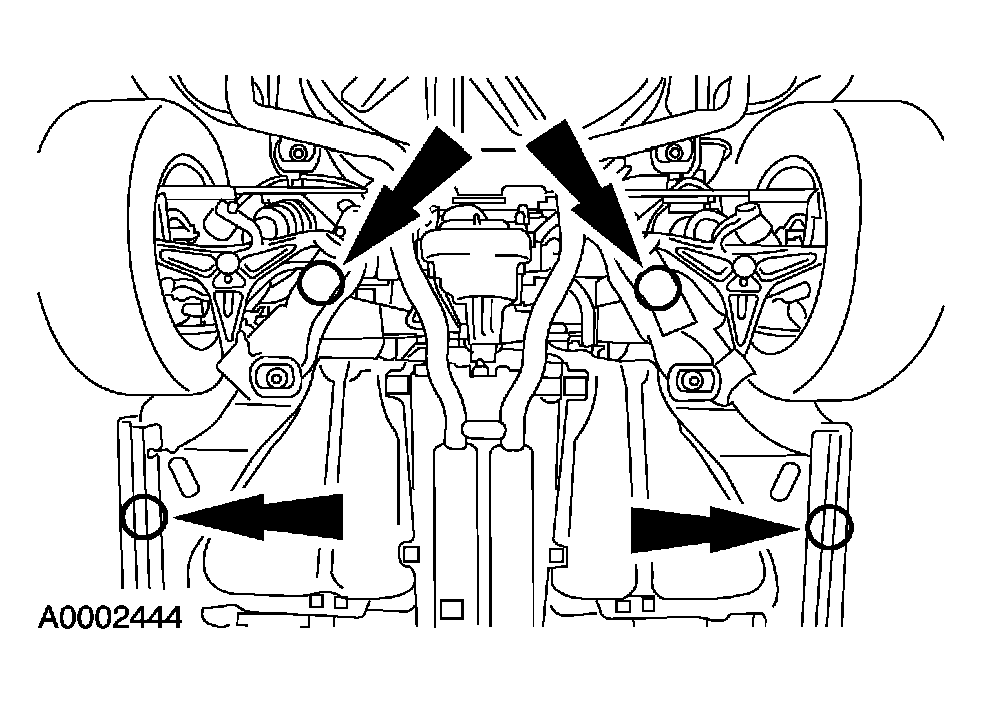

Fig 1: Identifying Jacking Points (1 Of 2)

Courtesy of FORD MOTOR CO.

To lift the front or either side of the front end, position the floor jack or the hoist under the front frame lift points.

Fig 2: Identifying Jacking Points (2 Of 2)

Courtesy of FORD MOTOR CO.

To lift the rear or either side of the rear end, position the floor jack or the hoist under the rear lift points.
