Removal and Installation

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the heater core and evaporator core housing. For additional information, refer to HEATING & VENTILATION .
Disconnect the blower motor speed control electrical connector.

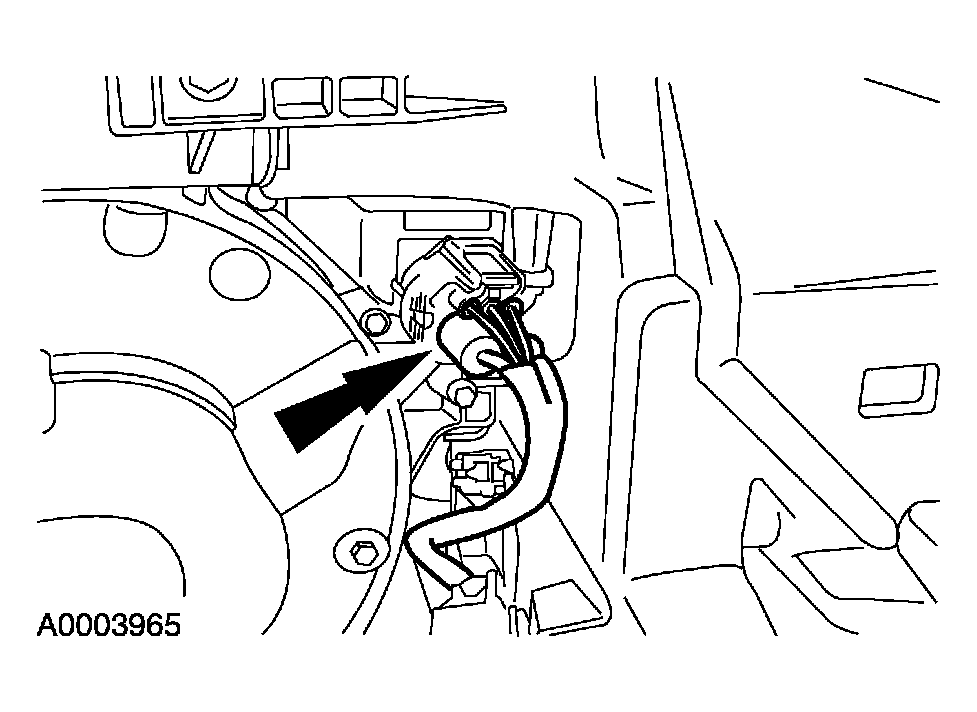

Fig 1: Locating Blower Motor Speed Control Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the lower heater core and evaporator core housing to air inlet duct screw.
Remove the upper heater core and evaporator core housing to air inlet duct screw.
Remove the blower motor speed control screw.
Disengage the clip, separate the air inlet and evaporator housings and remove the blower motor speed control.

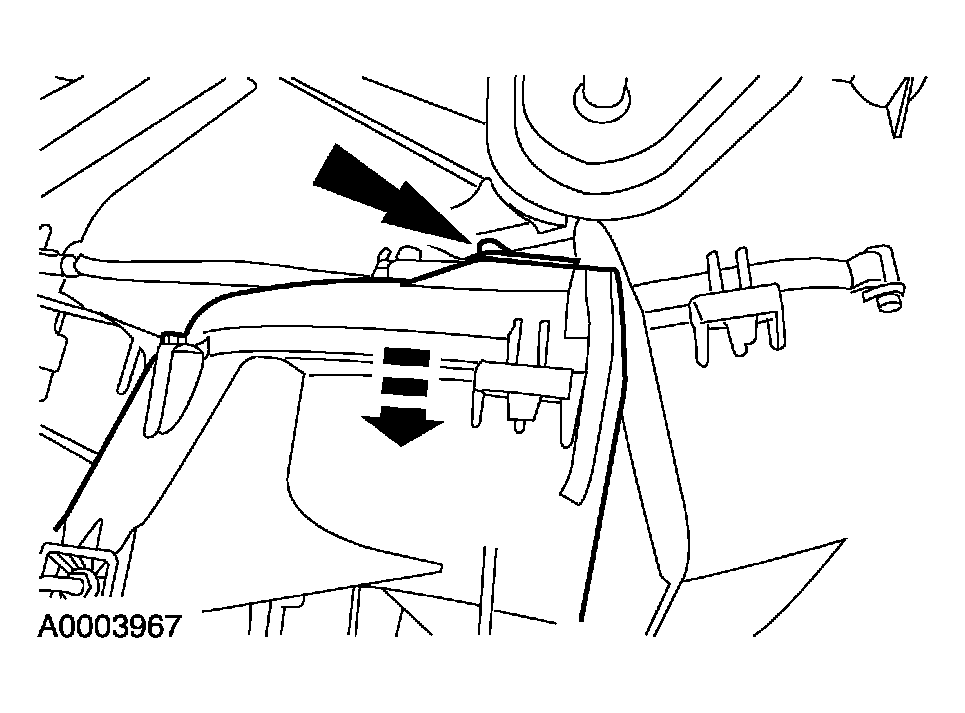

Fig 2: Locating Air Inlet Housing Clip
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
