Connector Circuit Reference

WARNING: This page is about a different car, the 2005 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

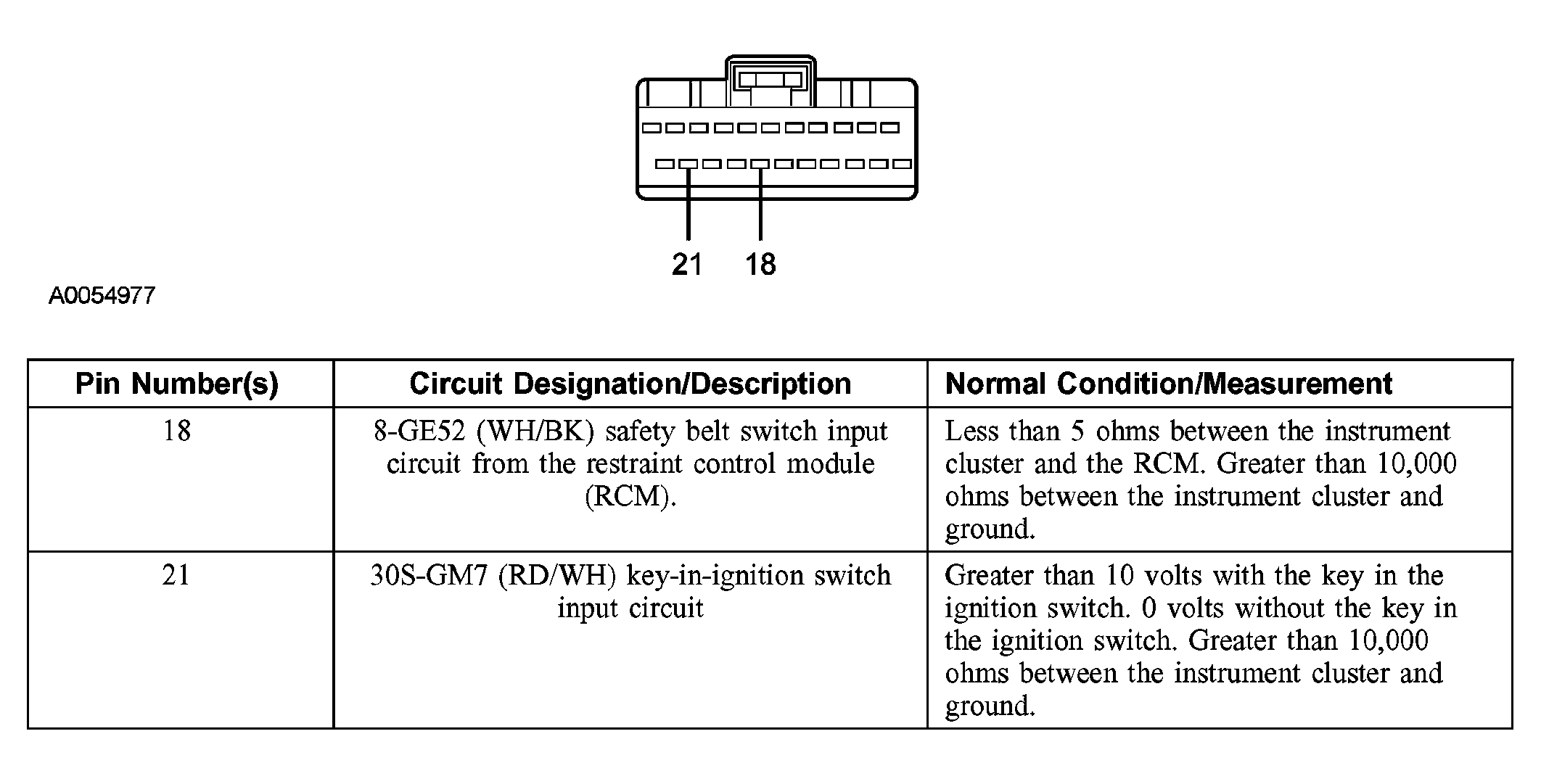

Fig 1: Connector Circuit Reference - Instrument Cluster C220A
G03998383Courtesy of FORD MOTOR CO.

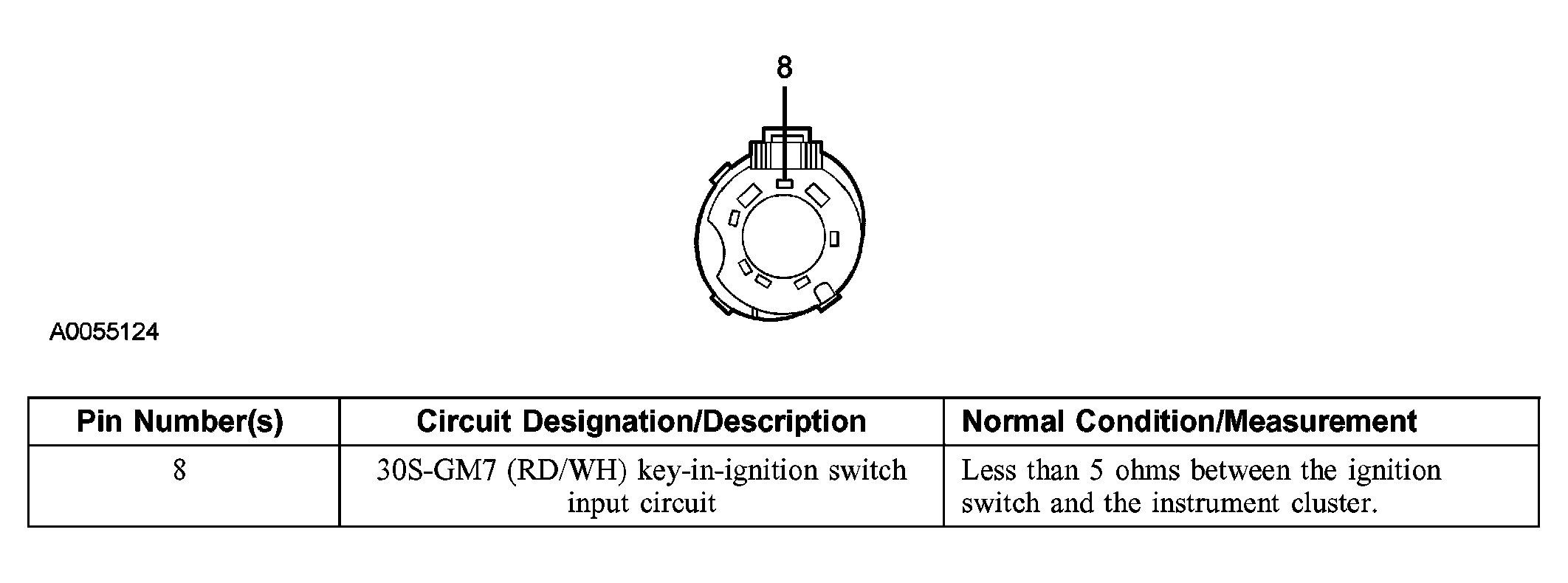

Fig 2: Connector Circuit Reference - Ignition Switch C250
G03998384Courtesy of FORD MOTOR CO.
