Brake System: Notes
WARNING: This page is about a different car, the 2006 Mercury Grand Marquis and 2006 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.
Refer to INSTRUMENT CLUSTER - CROWN VICTORIA or INSTRUMENT CLUSTER - GRAND MARQUIS for schematic and connector information.
Refer to POWER SEATS - CROWN VICTORIA or POWER SEATS - GRAND MARQUIS for adjustable pedal schematic and connector information.
SPECIAL TOOL DESCRIPTION
| 73III Automotive Meter 105-R0057 or equivalent |
|

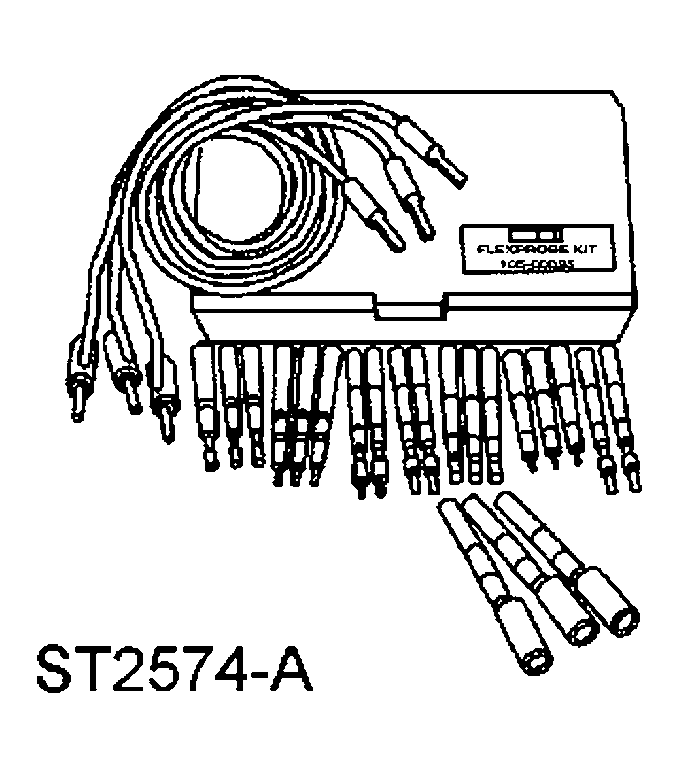

| Flex Probe Kit 105-R025B or equivalent |
|
| On-Car Brake Lathe 201-00002 or equivalent |
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| High Performance DOT 3 Motor Vehicle Brake Fluid PM-1 (Canada CPM-1) |
ESA-M6C25-A |
| High Temperature Nickel Anti-Seize Lubricant XL-2 |
ESE-M12A4-A |
