Intermediate Shaft Speed Sensor: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
Thread Sealant with PTFE TA-24 WSK-M2G350-A2

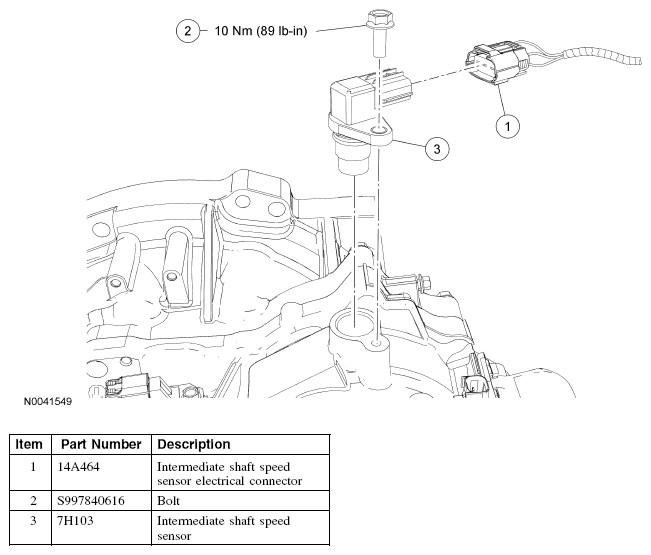

Fig 1: Intermediate Shaft Speed Sensor With Torque Specifications
G04681804Courtesy of FORD MOTOR CO.
