AUTOLAMP System
WARNING:
This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

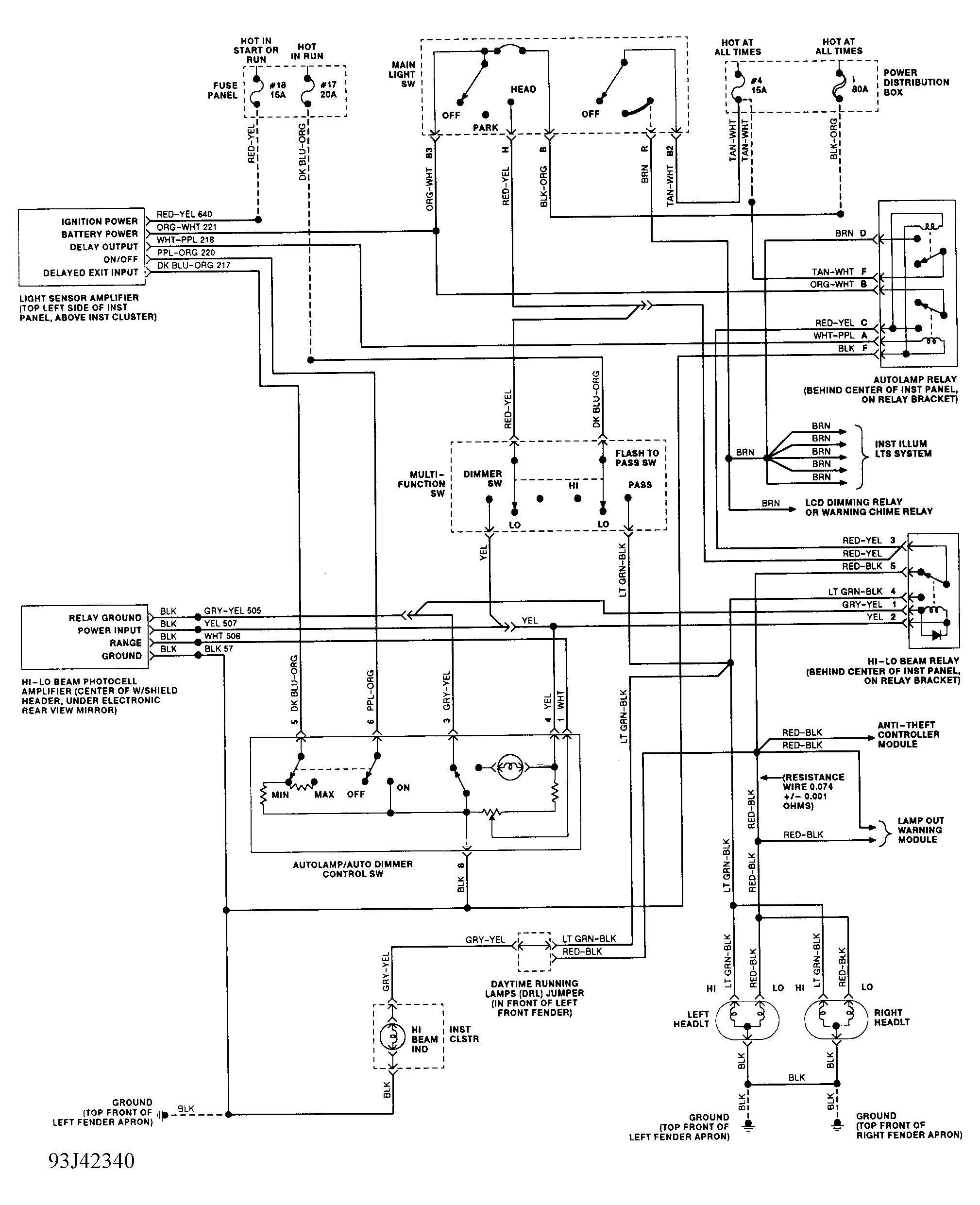

Fig 1: Headlight System Wiring Diagram (Automatic)

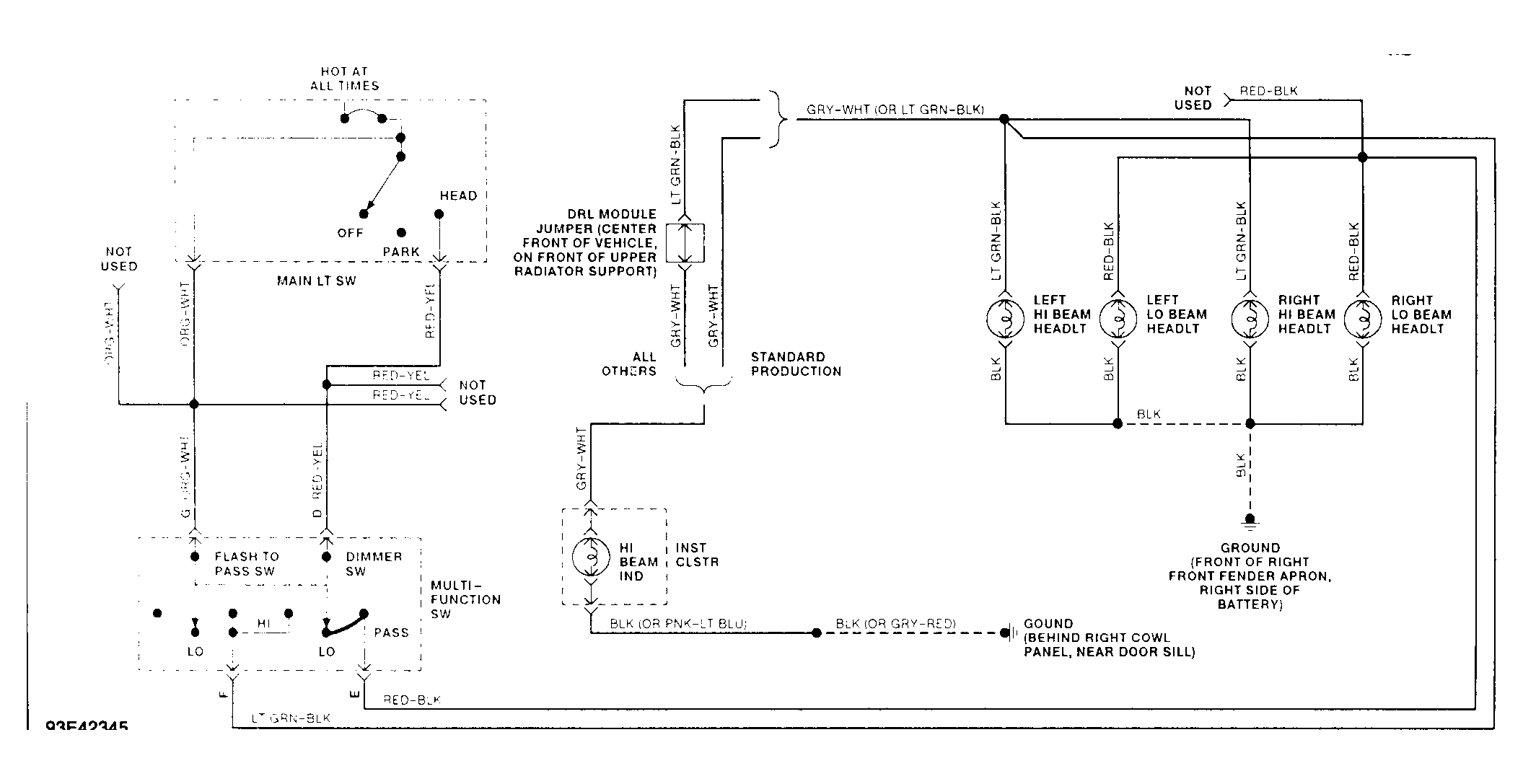

Fig 2: Headlight System Wiring Diagram (Manual)
