Ground Distribution

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

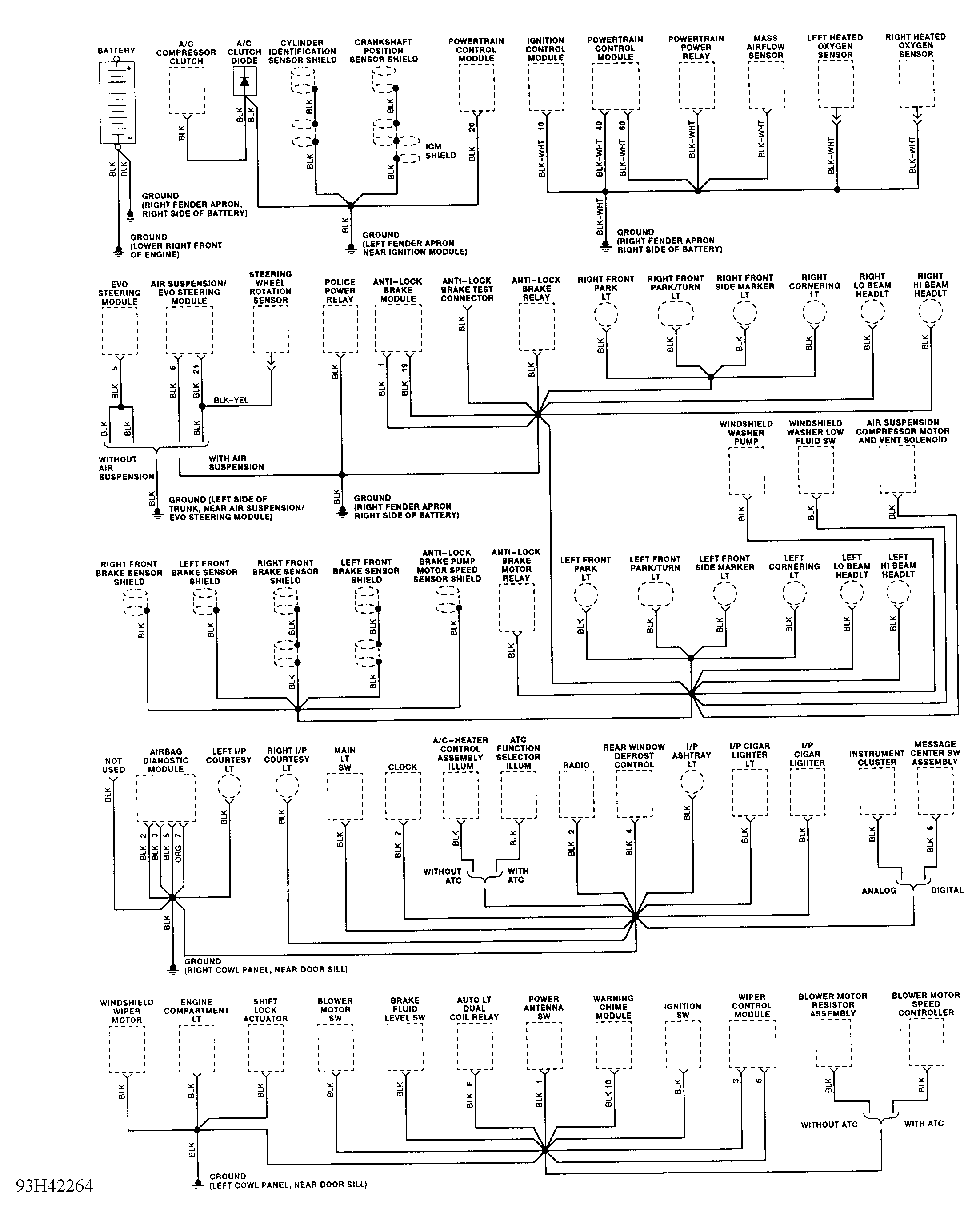

Fig 1: Ground Distribution (1 Of 3)
G93H42264

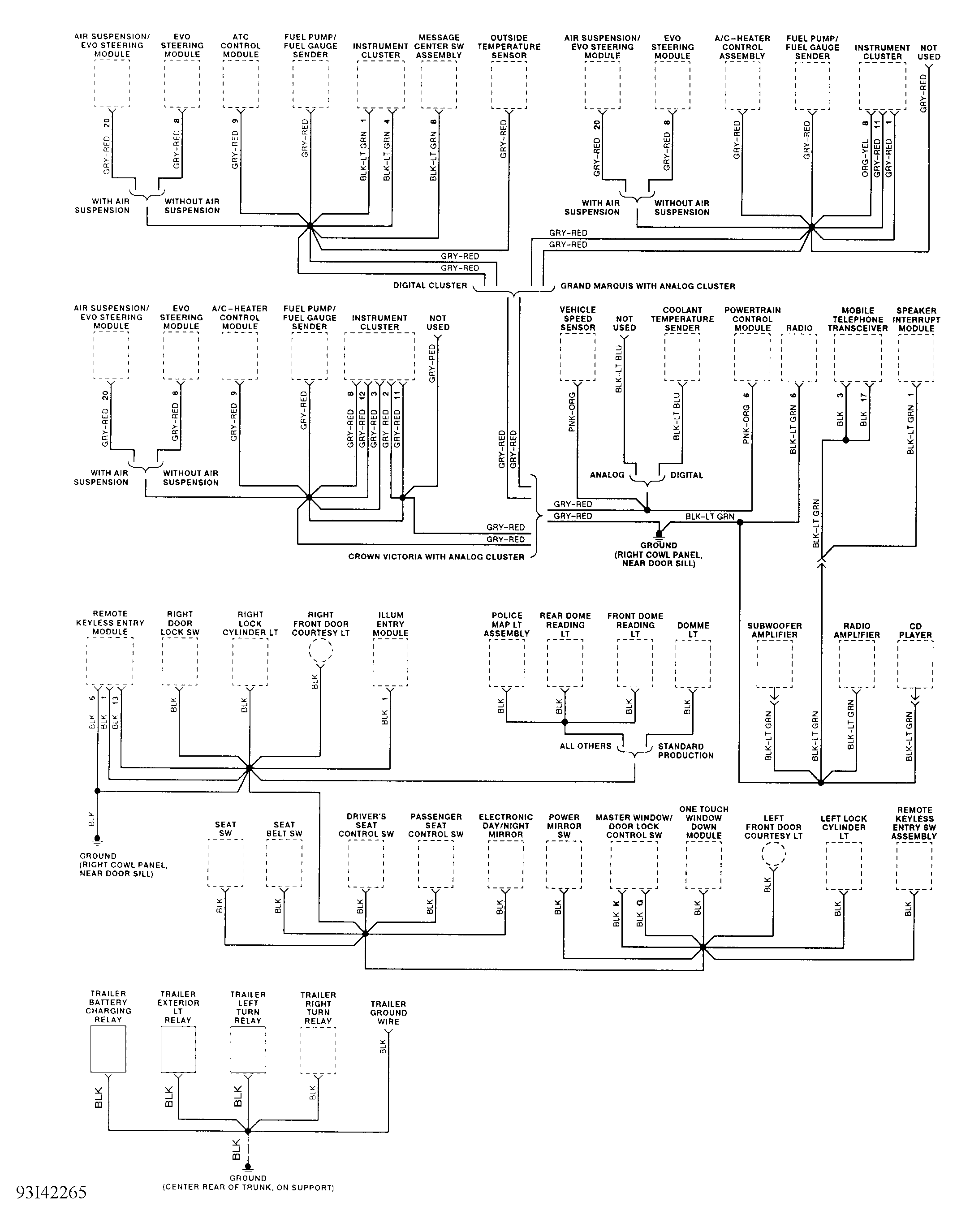

Fig 2: Ground Distribution (2 Of 3)
G93I42265

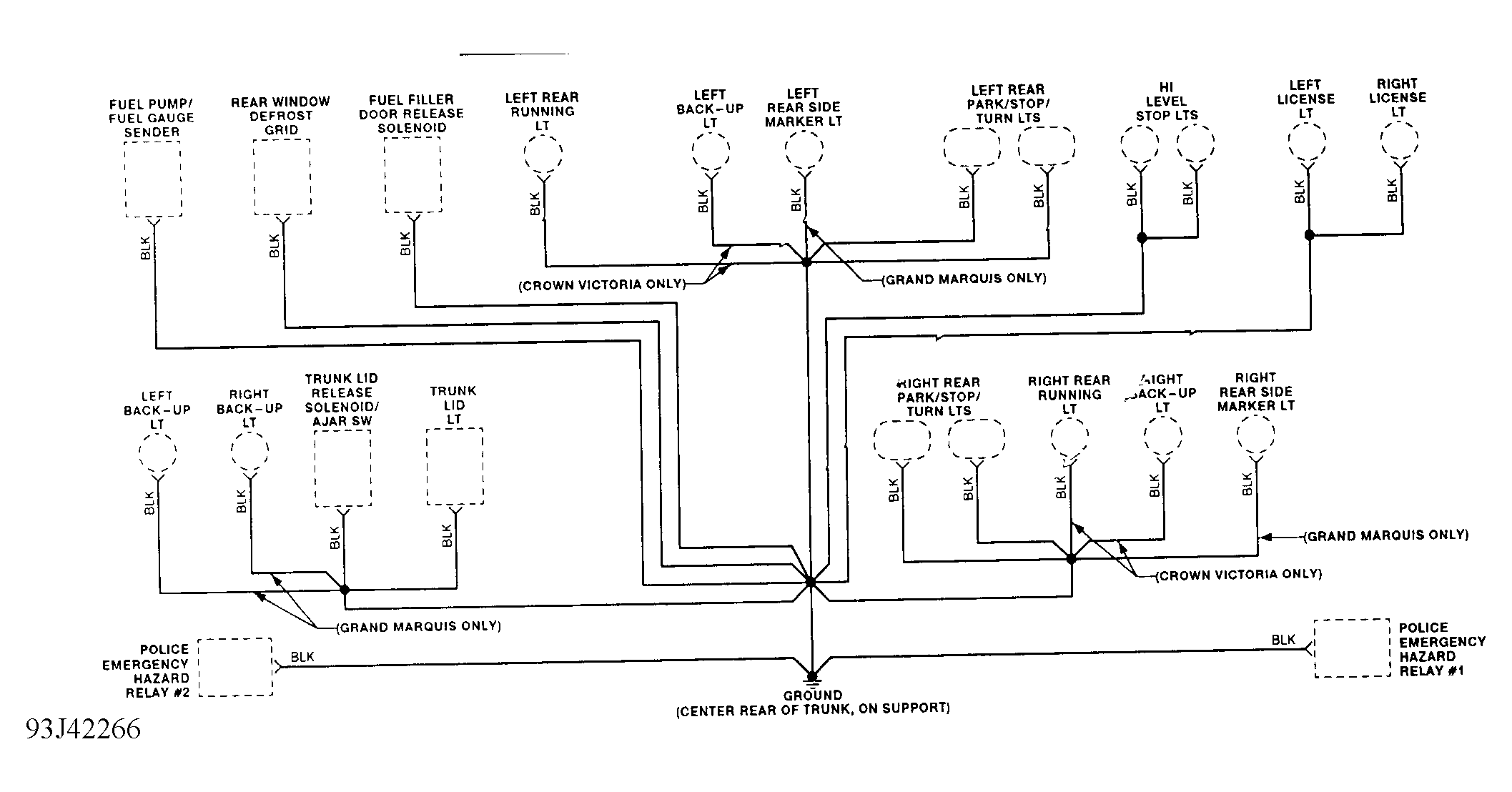

Fig 3: Ground Distribution (3 Of 3)
G93J42266
