Power Distribution

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

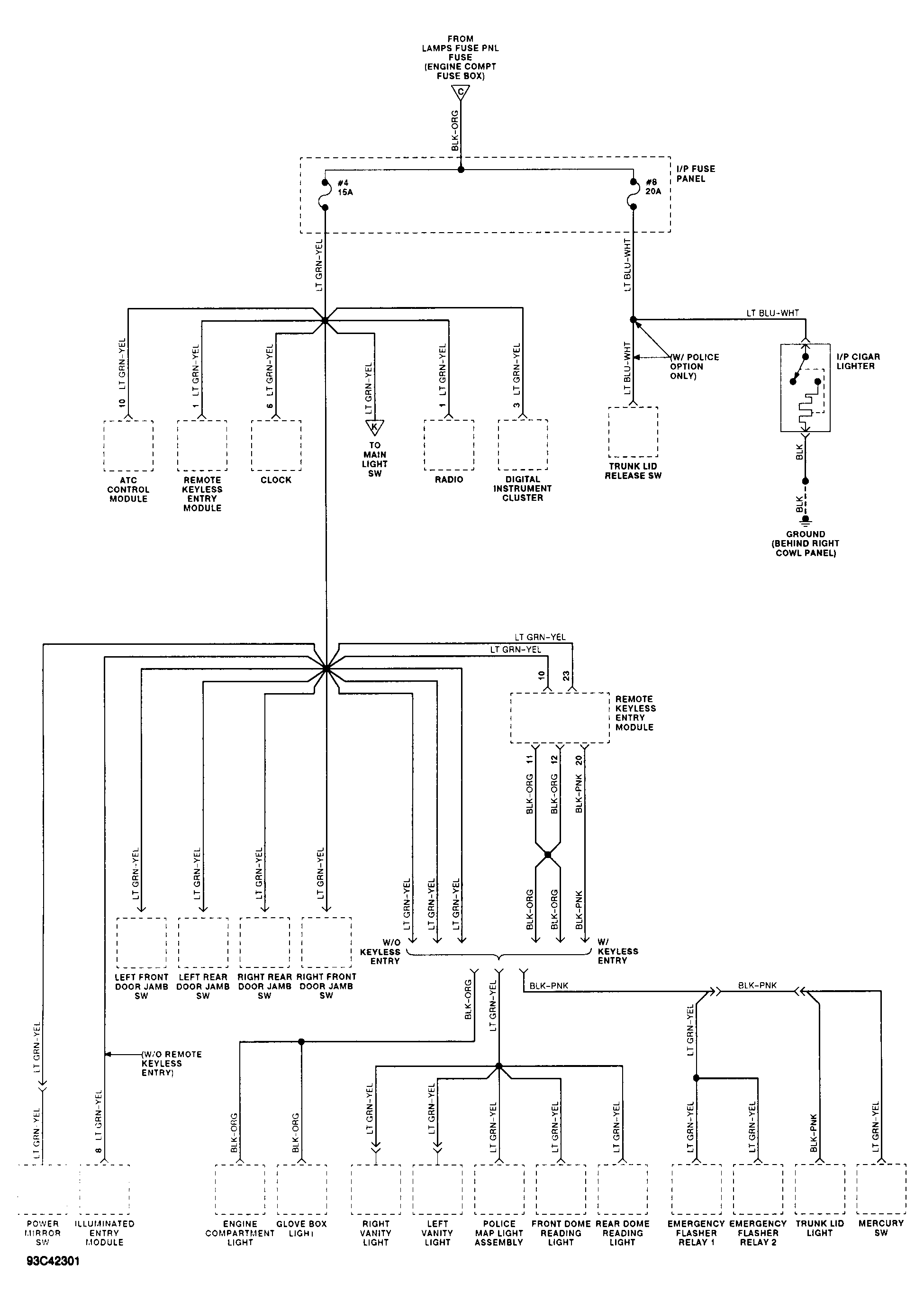

Fig 1: Power Distribution (1 Of 5)

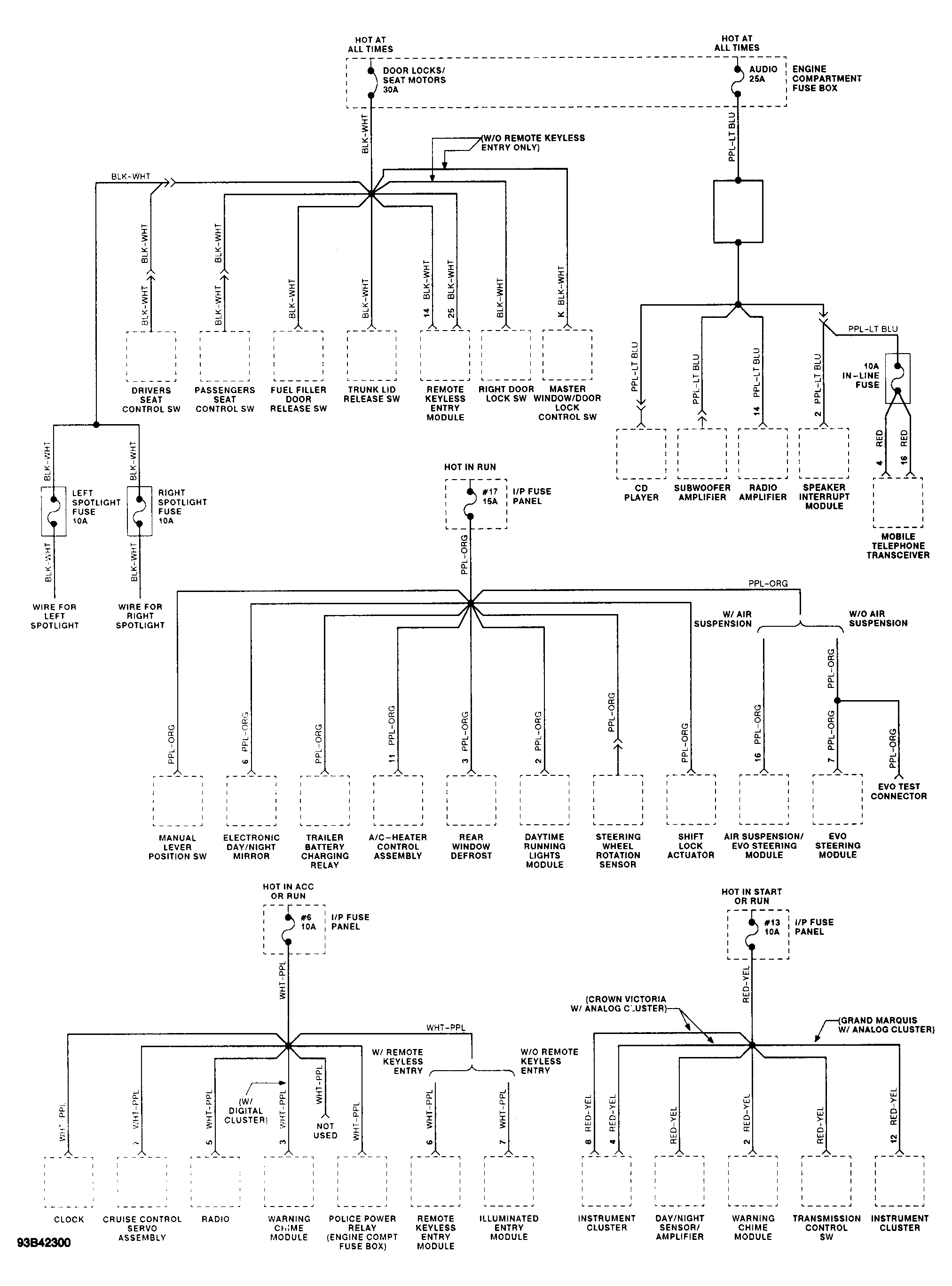

Fig 2: Power Distribution (2 Of 5)

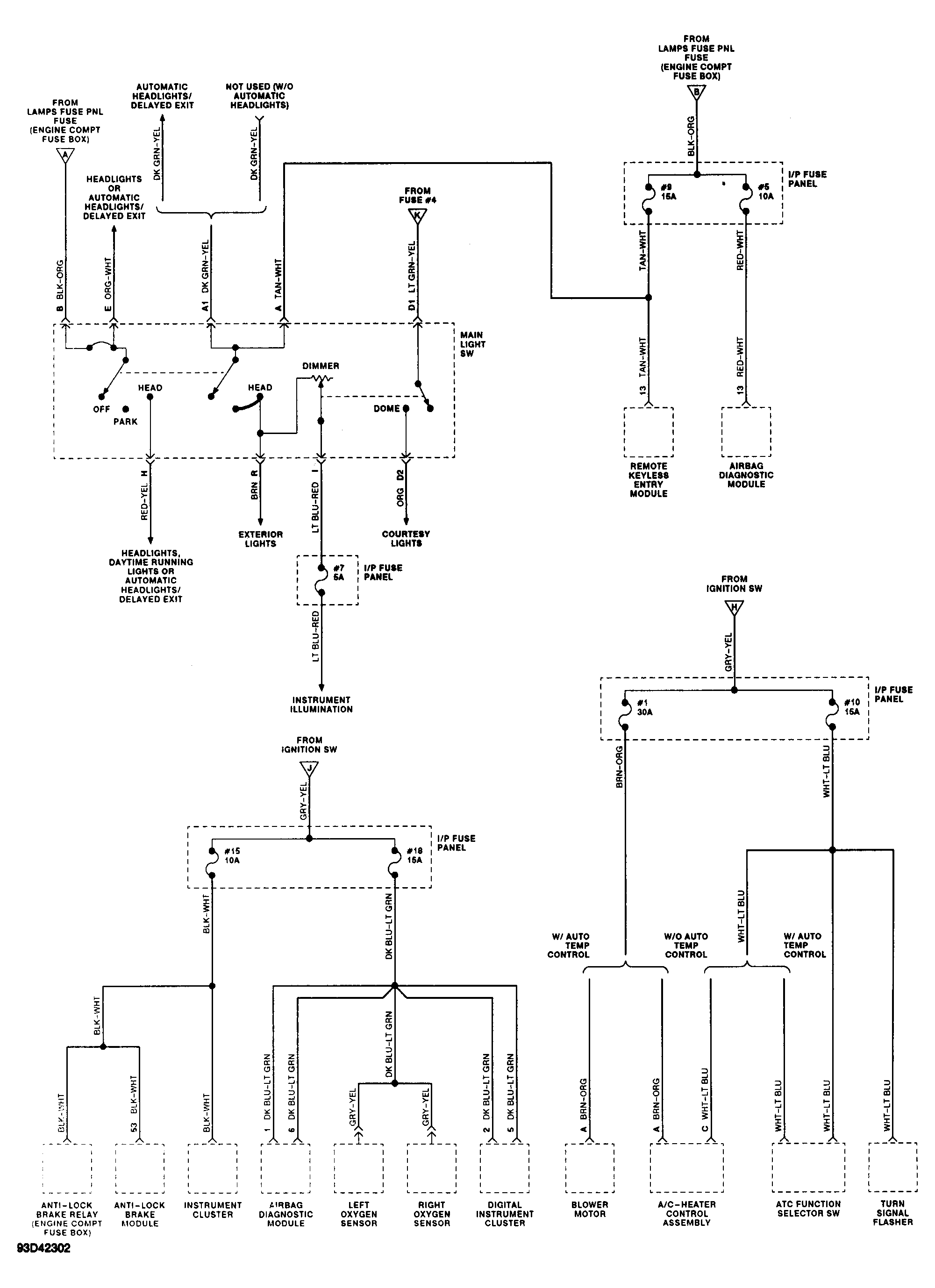

Fig 3: Power Distribution (3 Of 5)

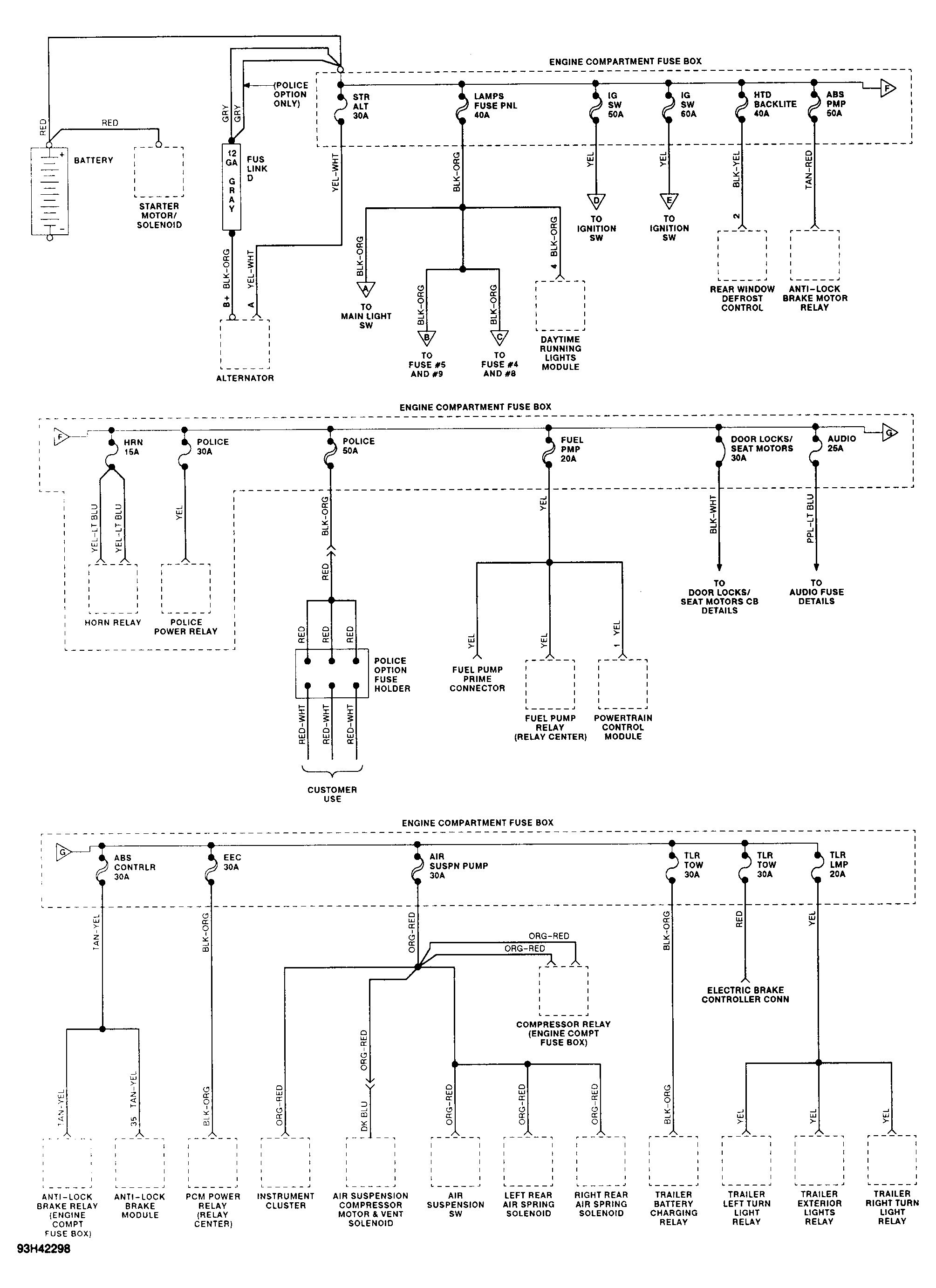

Fig 4: Power Distribution (4 Of 5)

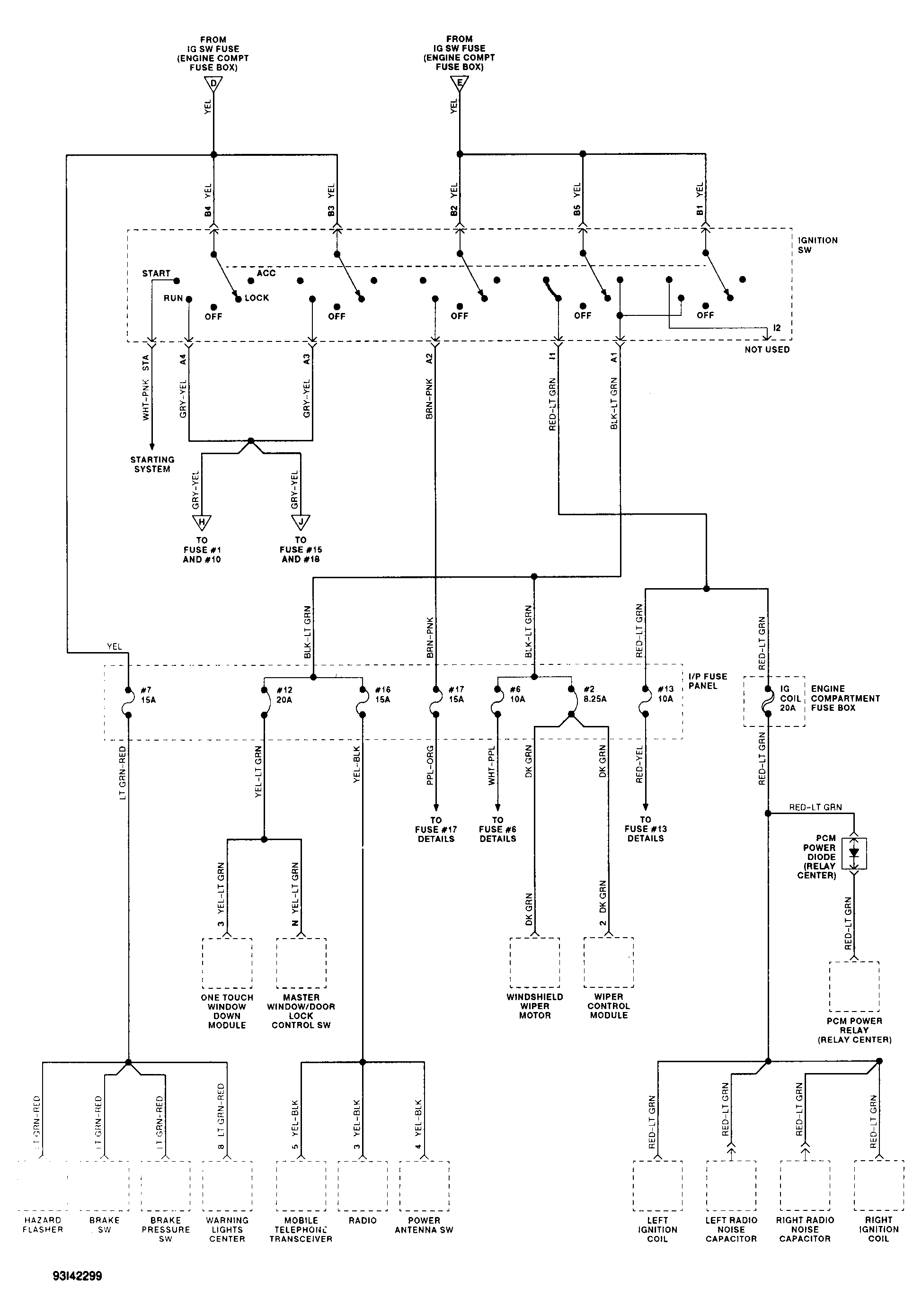

Fig 5: Power Distribution (5 Of 5)
