Rear Window Defogger

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

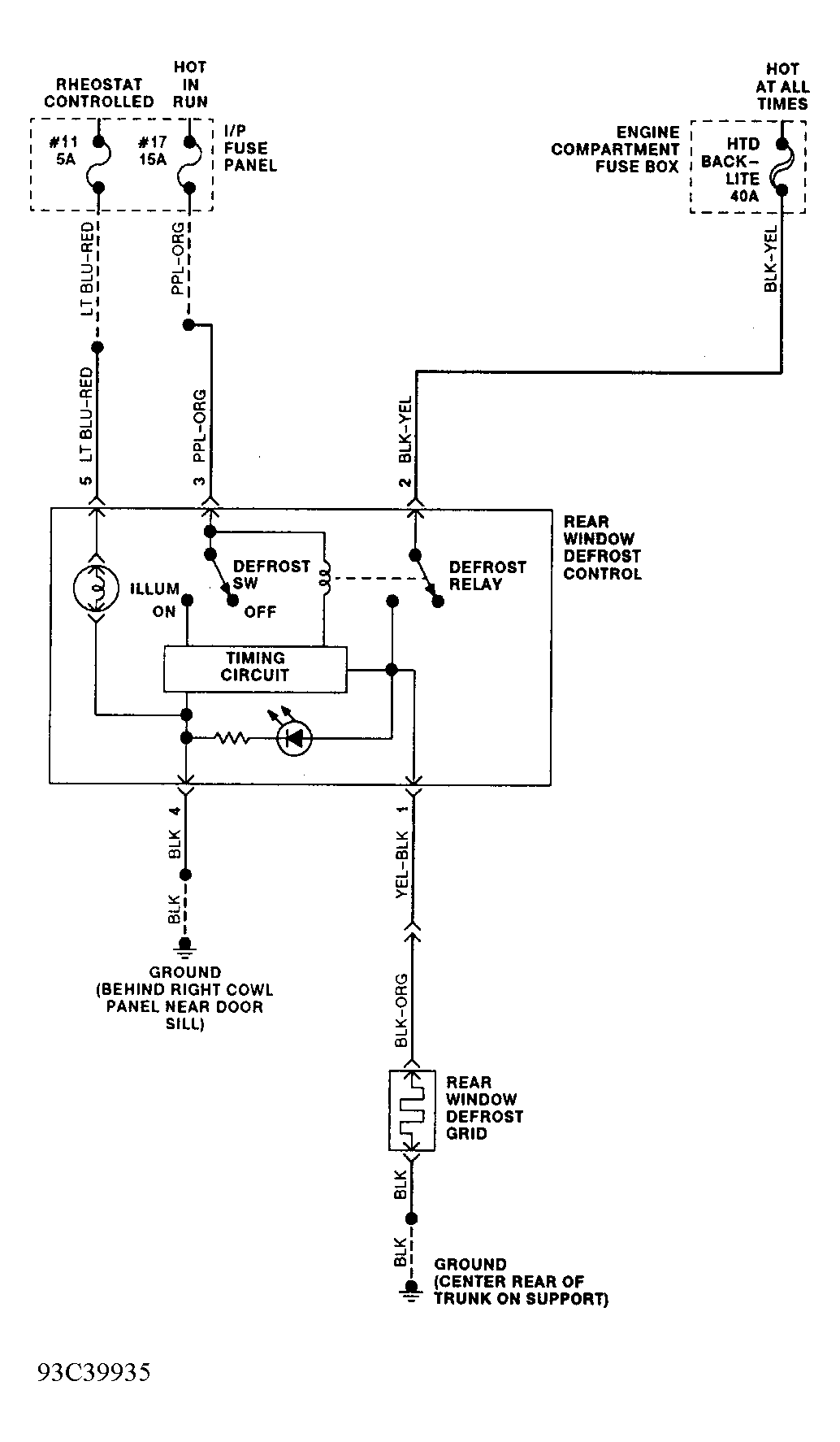

Fig 1: Rear Window Defogger Wiring Diagram
G93C39935
