Shift Lock

WARNING: This page is about a different car, the 1993 Mercury Grand Marquis. However, it is still accessible from the selected car via links, so may be relevant.

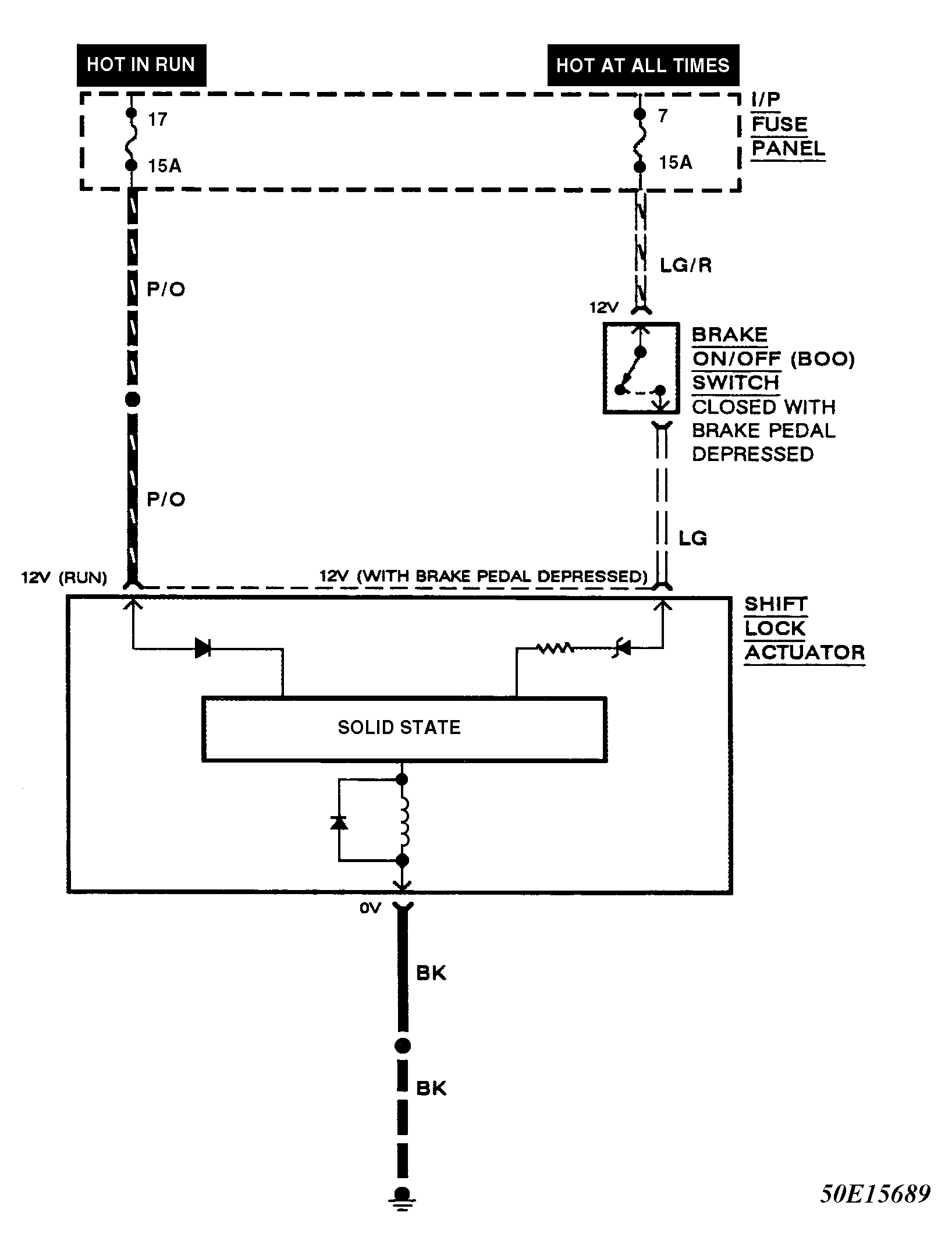

Fig 1: Shift Lock Wiring Diagram
G50E15689
