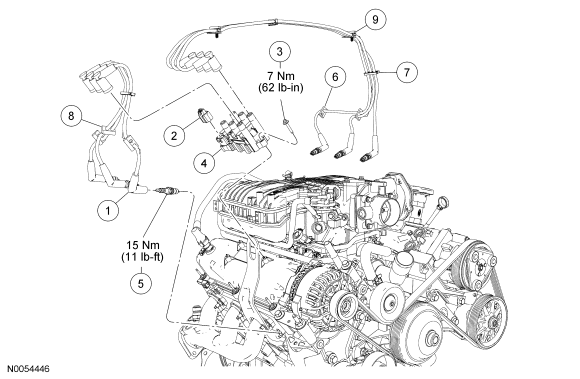

Engine Ignition Components - Exploded View
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 12286 | Spark plug wire (6 required) |
| 2 | 14A464 | Ignition coil electrical connector |
| 3 | W708622 | Ignition coil bolts (3 required) |
| 4 | 12029 | Ignition coil |
| 5 | 12405 | Spark plugs (6 required) |
| 6 | 12297 | Spark plug wire-to-valve cover retainers (4 required) |
| 7 | 12297 | Spark plug wire separators |
| 8 | 12297 | Spark plug wire separator |
| 9 | 12297 | Spark plug wire-to-intake manifold retainers |
- For additional information, refer to the procedures in this article.
