Selector Lever: Installation

All vehicles

1. Install the selector lever assembly and the 4 bolts.
   • Tighten to 15 Nm (11 lb-ft).

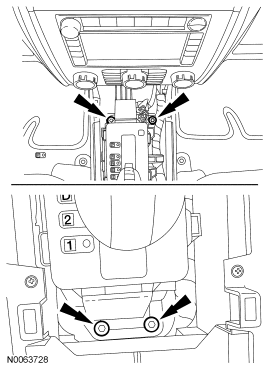

Fig 1: Identifying Bolts
Courtesy of FORD MOTOR CO.
2. Install the 2 center console screws.

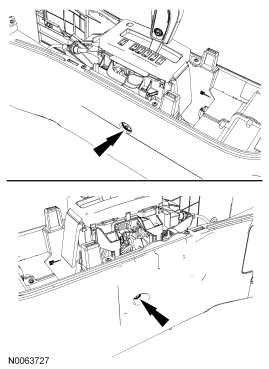

Fig 2: Identifying Screws
Courtesy of FORD MOTOR CO.

AWD vehicles

3. Install the AWD module on to the back of the selector lever.
Fig 3: Identifying All Wheel Drive (AWD) Module
Courtesy of FORD MOTOR CO.

All vehicles

4. Connect the electrical connectors to the selector lever.
   1. Install the vehicle harness connector on the selector lever.
   2. Connect the selector lever electrical connector.

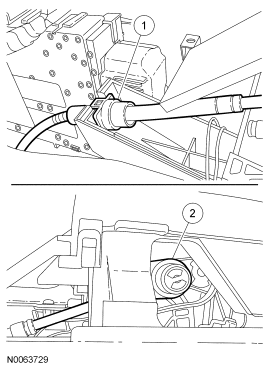

Fig 4: Identifying Connectors
Courtesy of FORD MOTOR CO.
5. Connect the wiring harness retainers to the selector lever.
Fig 5: Identifying Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
6. Install the selector lever cable on the selector lever assembly.
   1. Install the selector lever cable on the bracket.
   2. Connect the selector lever cable end.
Fig 6: Identifying Selector Lever Cable
Courtesy of FORD MOTOR CO.
7. Install the top finish panel.
Fig 7: Identifying Top Finish Panel
Courtesy of FORD MOTOR CO.
8. Install the center console compartment tray.
Fig 8: Identifying Center Console Compartment Tray
Courtesy of FORD MOTOR CO.
9. Install the upper selector lever trim ring.
Fig 9: Identifying Upper Selector Lever Trim Ring
Courtesy of FORD MOTOR CO.
10. Adjust the selector lever cable. For additional information, refer to Selector Lever Cable Adjustment .
