Pinpoint Test C: The Transmission Control Switch Is Not Operating Properly
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

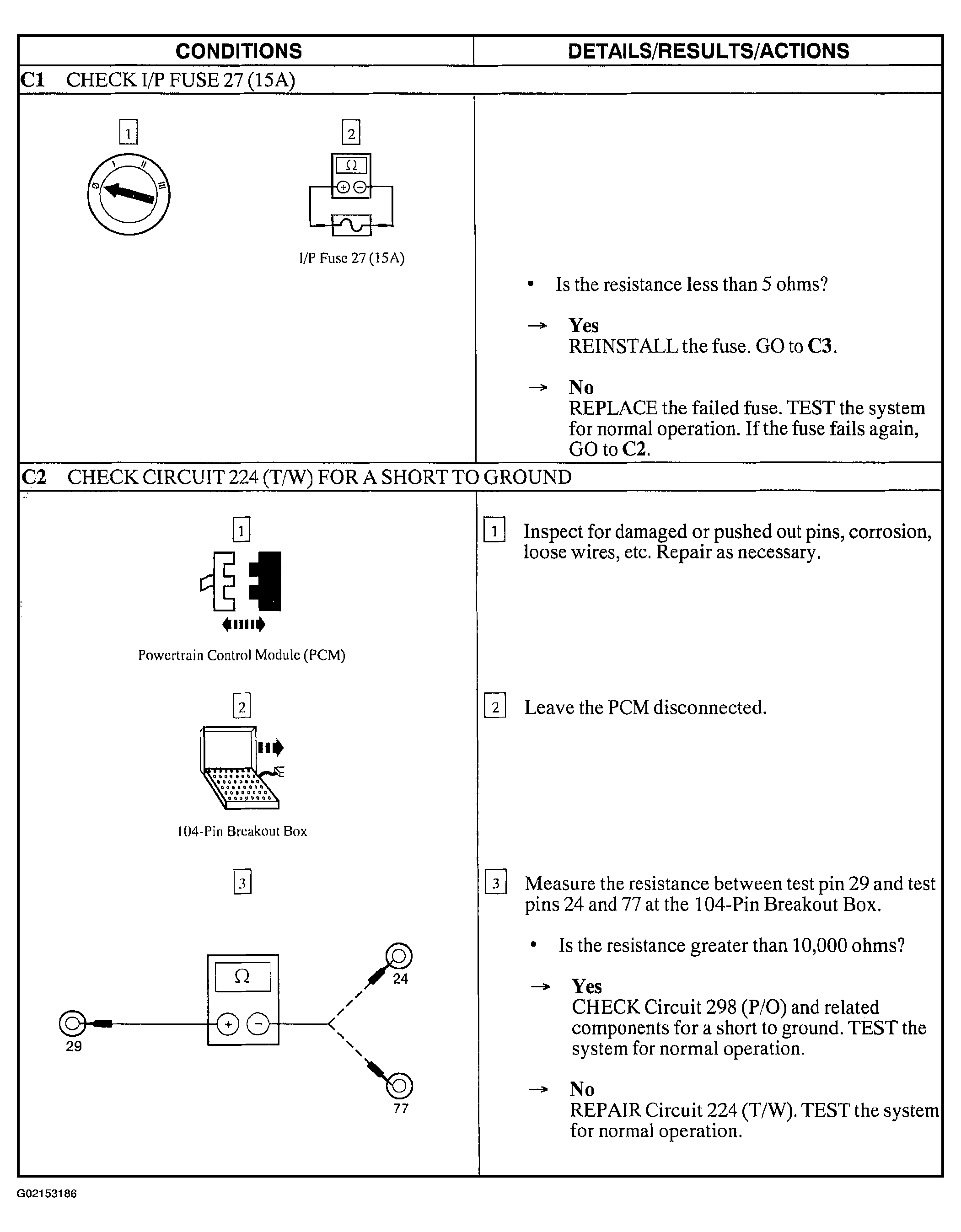

Fig 1: Pinpoint Test C: Transmission Control Switch Is Not Operating Properly (C1-C2)
Courtesy of FORD MOTOR CO.

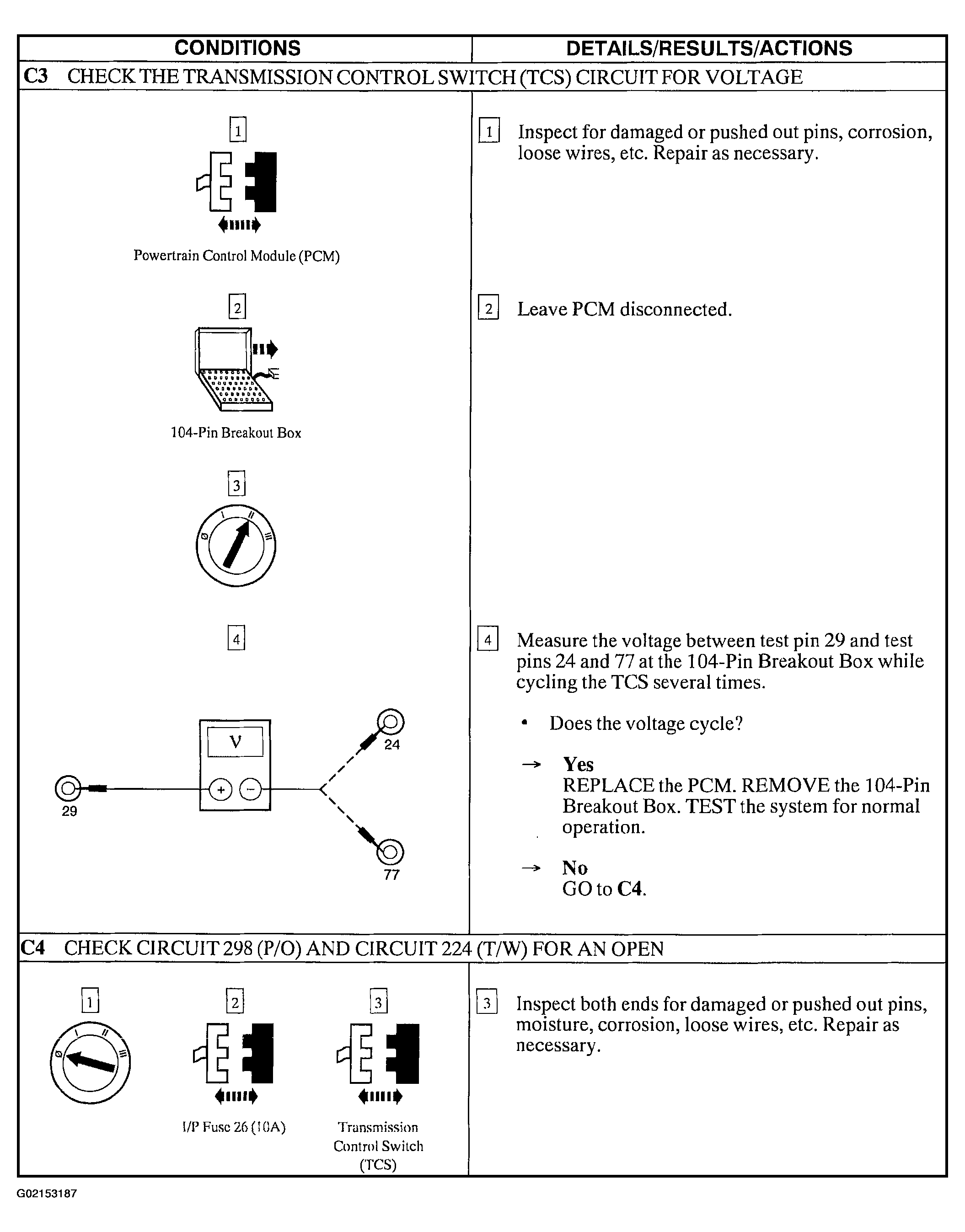

Fig 2: Pinpoint Test C: Transmission Control Switch Is Not Operating Properly (C3-C4)
Courtesy of FORD MOTOR CO.

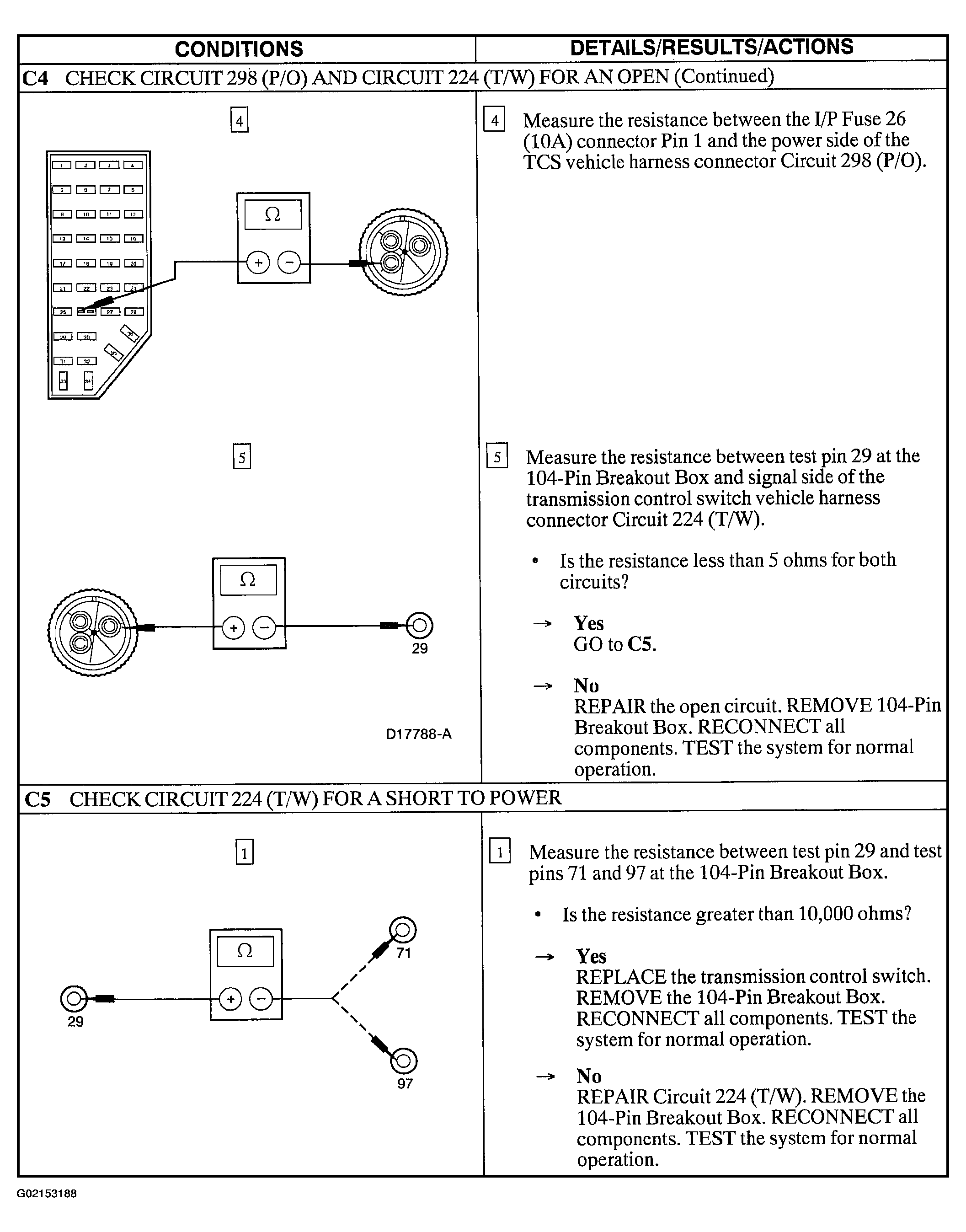

Fig 3: Pinpoint Test C: Transmission Control Switch Is Not Operating Properly (C4-C5)
