Disassembly And Assembly Of Subassemblies: Differential: Assembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Whenever a bearing has been removed, a new bearing must be installed.
  1. Using the special tool and a press, install the speedometer drive gear and the differential bearing.
    Fig 1: Installing Speedometer Drive Gear And Differential Bearing
    G02051301Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the differential bearing.
    Fig 2: Installing Differential Bearing Using Special Tool
    G02051302Courtesy of FORD MOTOR CO.
  3. Install the differential side gear and thrust washer.

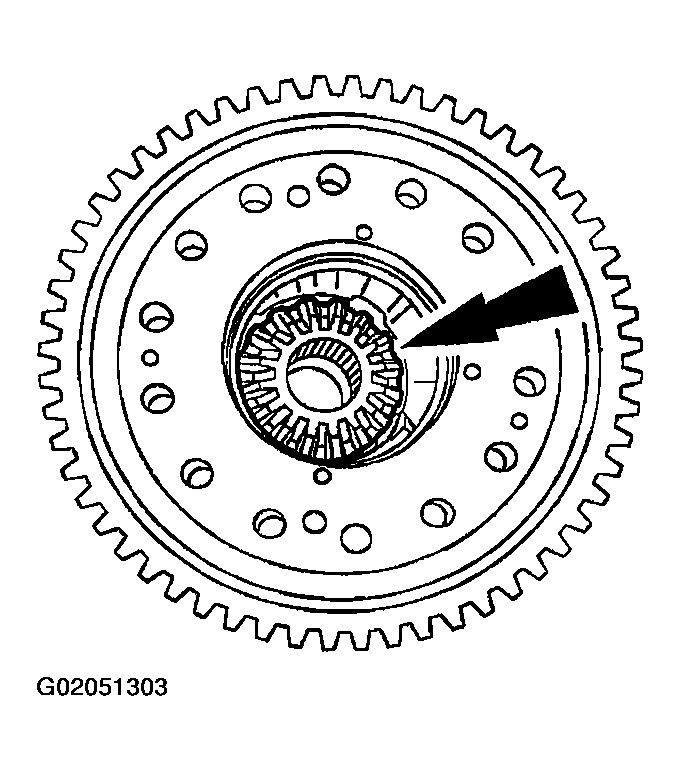

    Fig 3: Installing Differential Side Gear And Thrust Washer
    G02051303Courtesy of FORD MOTOR CO.
  4. Install the differential pinion gears and thrust washers.

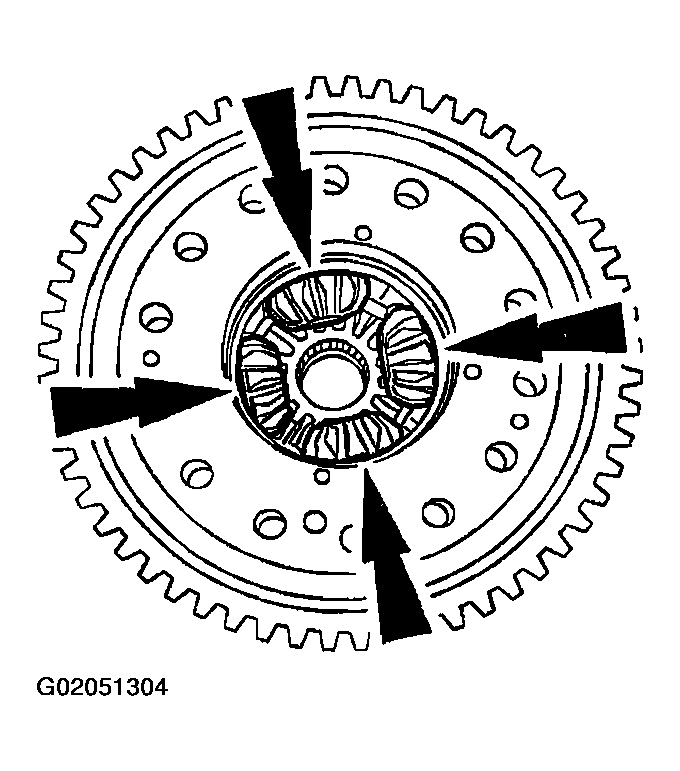

    Fig 4: Installing Differential Pinion Gears And Thrust Washers
    G02051304Courtesy of FORD MOTOR CO.
  5. Install the differential pinion shaft cage.
    1. Position the differential pinion shaft cage.
    2. Install the differential pinion shafts.

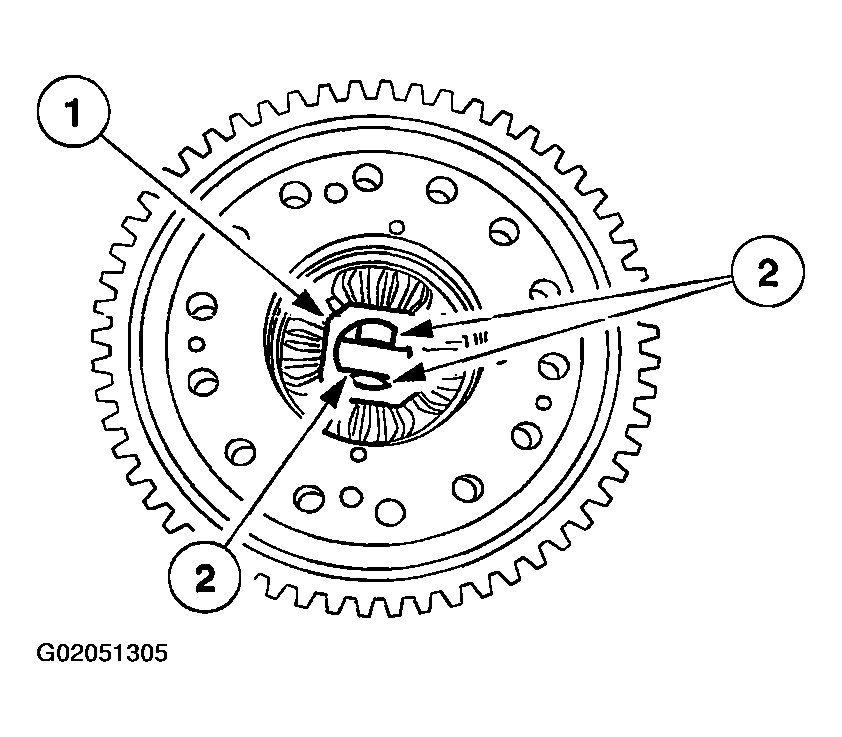

    Fig 5: Installing Differential Pinion Shaft Cage
    G02051305Courtesy of FORD MOTOR CO.
  6. Install the differential pinion shaft lock pins.

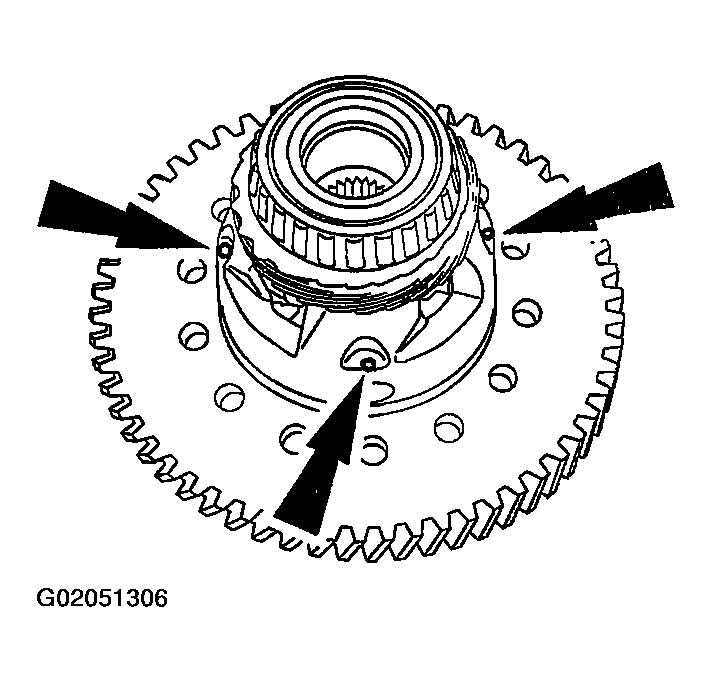

    Fig 6: Installing Differential Pinion Shaft Lock Pins
    G02051306Courtesy of FORD MOTOR CO.
  7. Install the differential side gear thrust washer and differential side gear.

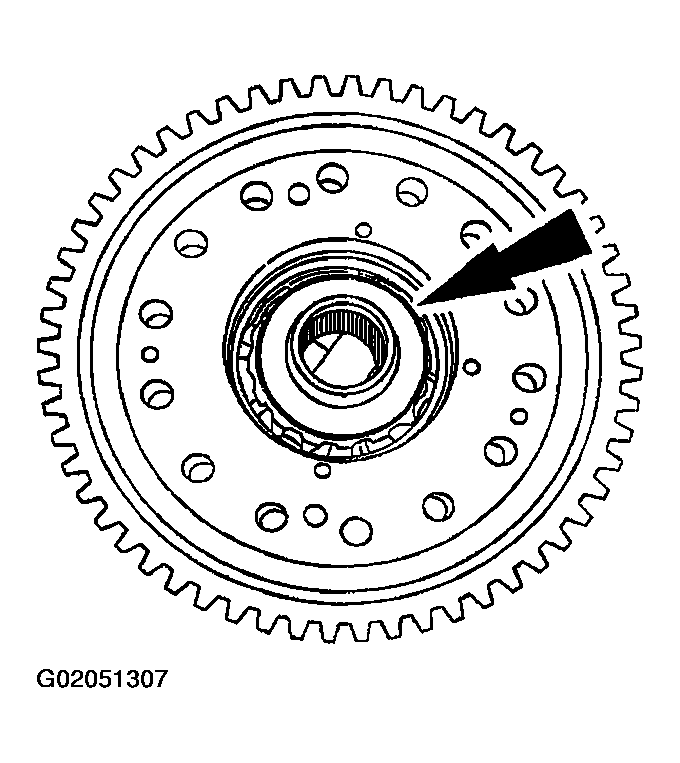

    Fig 7: Installing Differential Side Gear Thrust Washer And Differential Side Gear
    G02051307Courtesy of FORD MOTOR CO.
  8. Install the differential cover.
    1. Position the differential cover.
    2. Install the differential cover screws.
    3. Install the differential cover bolts.

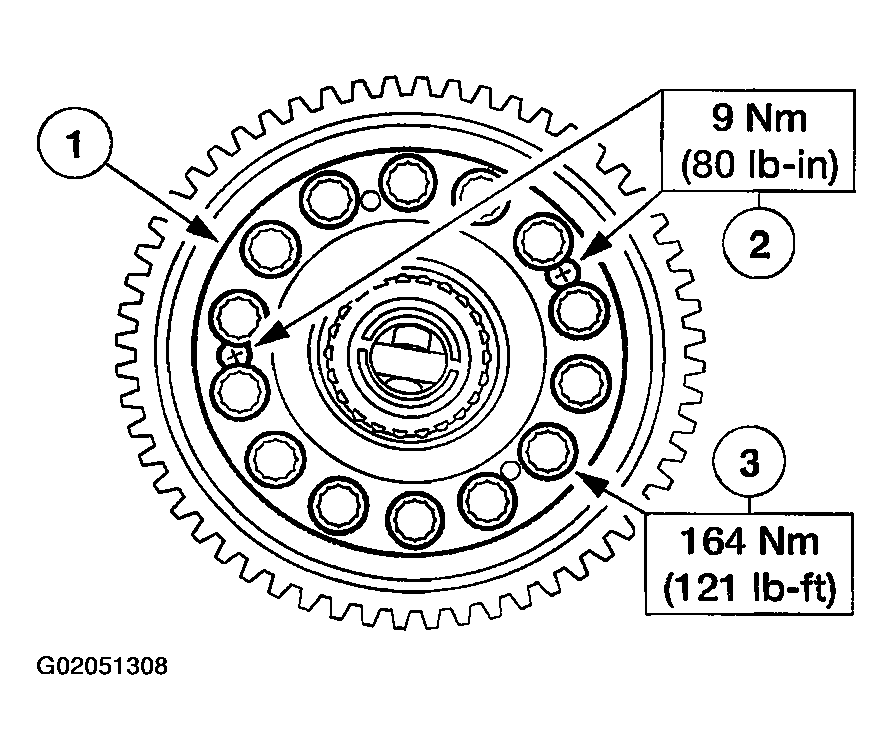

    Fig 8: Installing Differential Cover
    G02051308Courtesy of FORD MOTOR CO.
