Input Shaft: Disassembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When pressing off components, hold the shaft so that it does not fall.
  1. Measure the input shaft clearances.
    1. Measure the clearance between the third and second gears.
    2. Measure the clearance between fourth gear and the bearing cone.

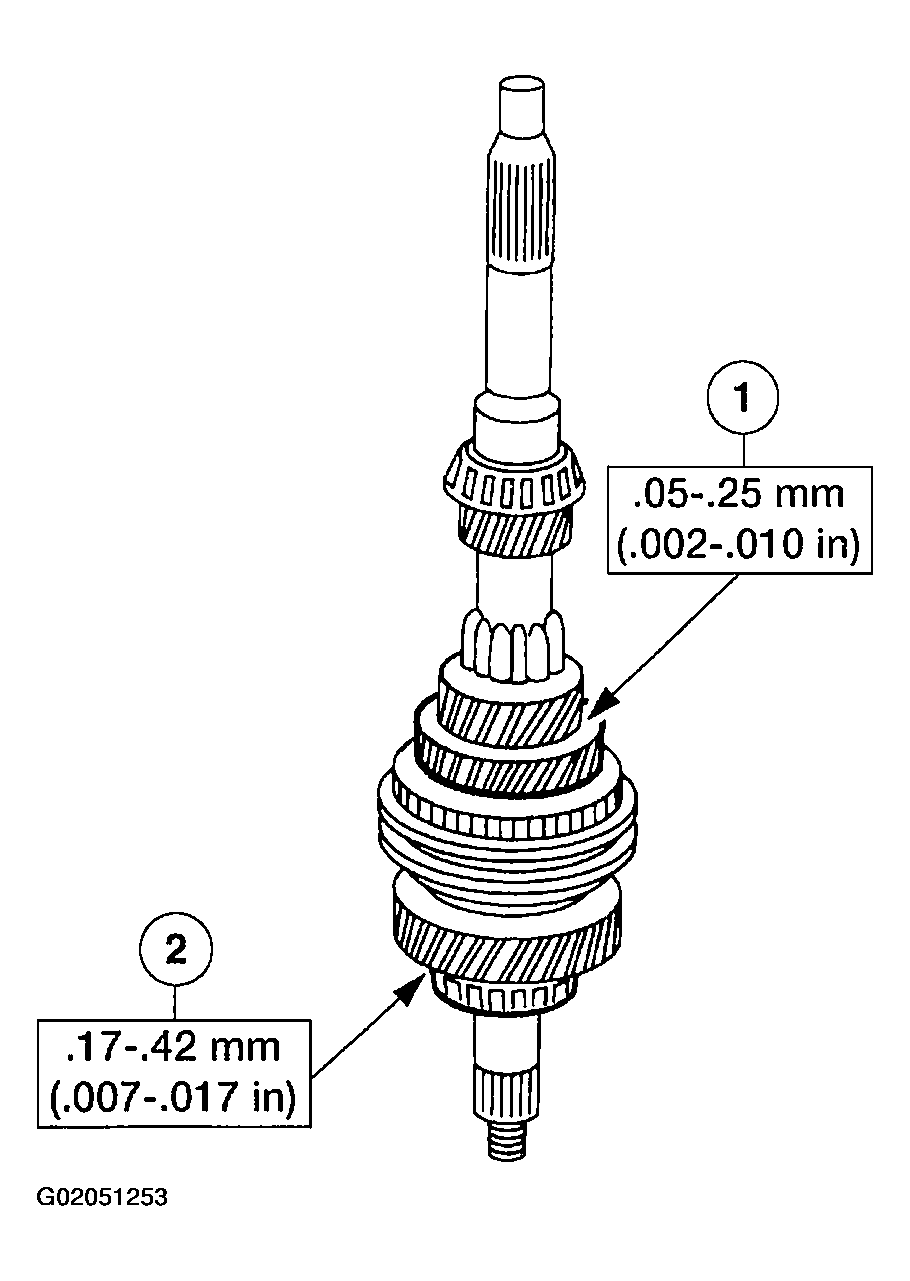

    Fig 1: Measuring Input Shaft Clearances
    G02051253Courtesy of FORD MOTOR CO.
  2. Using the special tools and a press, press off the bearing (fourth gear end).

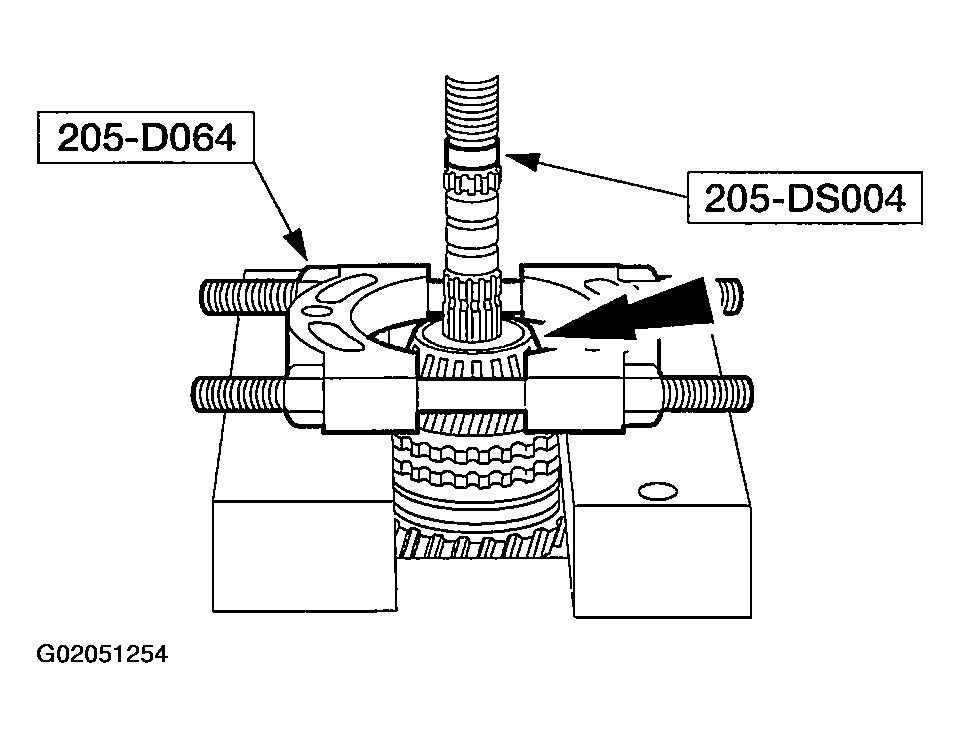

    Fig 2: Pressing Off Bearing (Fourth Gear End)
    G02051254Courtesy of FORD MOTOR CO.
  3. CAUTION: The synchronizer blocking rings are not interchangeable. Make sure to keep them in the order that they were removed.
    Fig 3: Removing Fourth Gear And Synchronizer Blocking Ring
    G02051255Courtesy of FORD MOTOR CO.
  4. Remove fourth gear and the synchronizer blocking ring.
  5. Remove the snap ring.

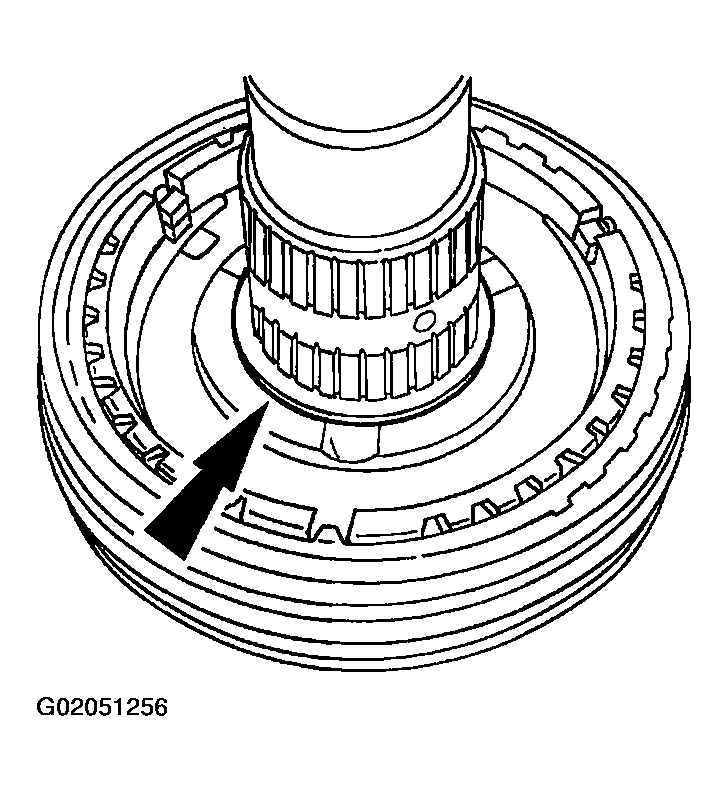

    Fig 4: Removing Snap Ring
    G02051256Courtesy of FORD MOTOR CO.
  6. CAUTION: The synchronizer blocking rings are not interchangeable. Make sure to keep them in the order that they were removed.
    NOTE: Inspect all the synchronizer components for wear and damage; refer to SYNCHRONIZERS .
    Fig 5: Inspecting All Synchronizer Components
    G02051257Courtesy of FORD MOTOR CO.
  7. Using the special tools and a press, press off the synchronizer hub assembly, synchronizer blocking ring, and third gear.
  8. Using the special tools and a press, press off the bearing (third gear end).
    Fig 6: Pressing Off Bearing (Third Gear End)
    G02051258Courtesy of FORD MOTOR CO.
  9. Measure input shaft gear runout.
    • Inspect the input shaft for worn or damaged gears.
    Fig 7: Measuring Input Shaft Gear Runout
    G02051259Courtesy of FORD MOTOR CO.
  10. NOTE: Set the synchronizer ring squarely in the gear, then measure around the circumference.

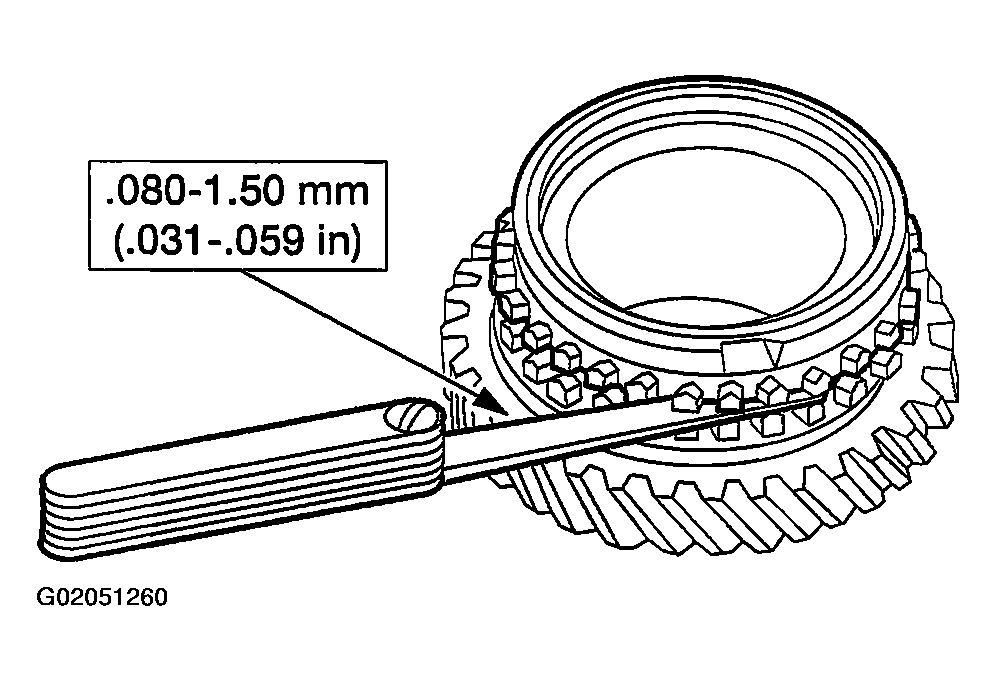

    Fig 8: Inspecting Synchronizer Blocking Rings
    G02051260Courtesy of FORD MOTOR CO.
  11. Inspect the synchronizer blocking rings.
    • Measure the clearance from the side of the gear.
    • Inspect for smooth engagement with the gear.
    • Inspect for worn or damaged teeth or tapper surface.
  12. Inspect the synchronizer hub.
    • Inspect for worn or damaged splines, synchronizer insert groove or end surface.
    • Inspect for smooth hub sleeve movement when it is installed.
  13. Measure the clearance between the third/fourth synchronizer hub and its shift fork.

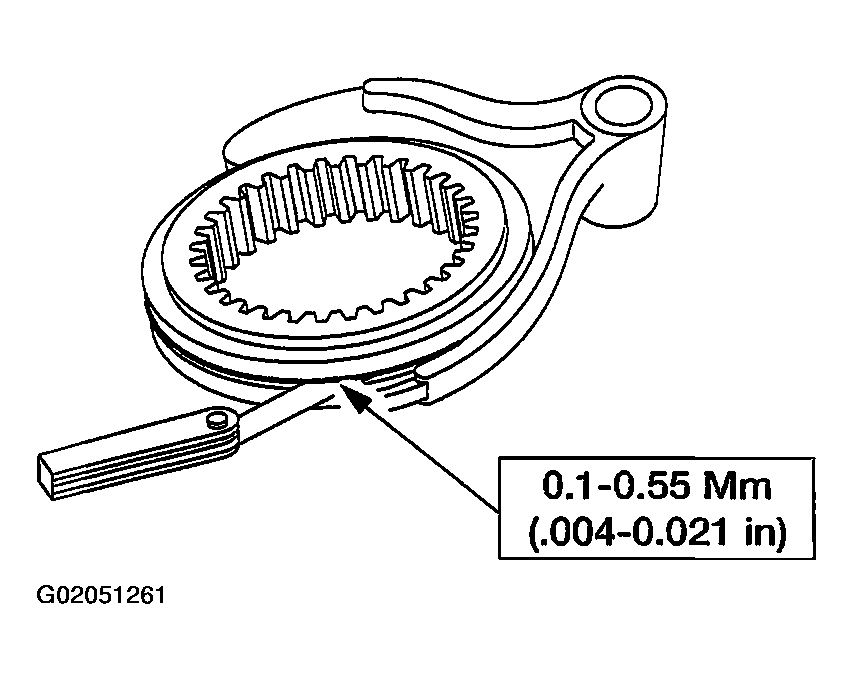

    Fig 9: Measuring Clearance Between Third/Fourth Synchronizer Hub
    G02051261Courtesy of FORD MOTOR CO.
