Disassembly And Assembly Of Subassemblies: Synchronizers: Assembly

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Align the index marks during assembly. Assemble the synchronizer.
1. Position the synchronizer hub and sleeve together.
2. Install the synchronizer hub inserts.
3. Install the synchronizer blocking springs.

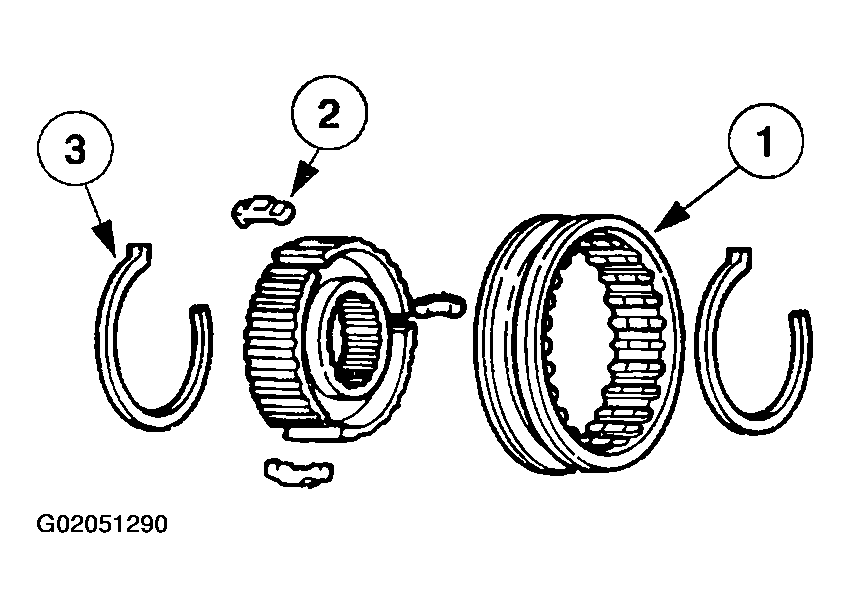

Fig 1: Exploded View Of Synchronizer
Courtesy of FORD MOTOR CO.
